Left Exhaust Manifold

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

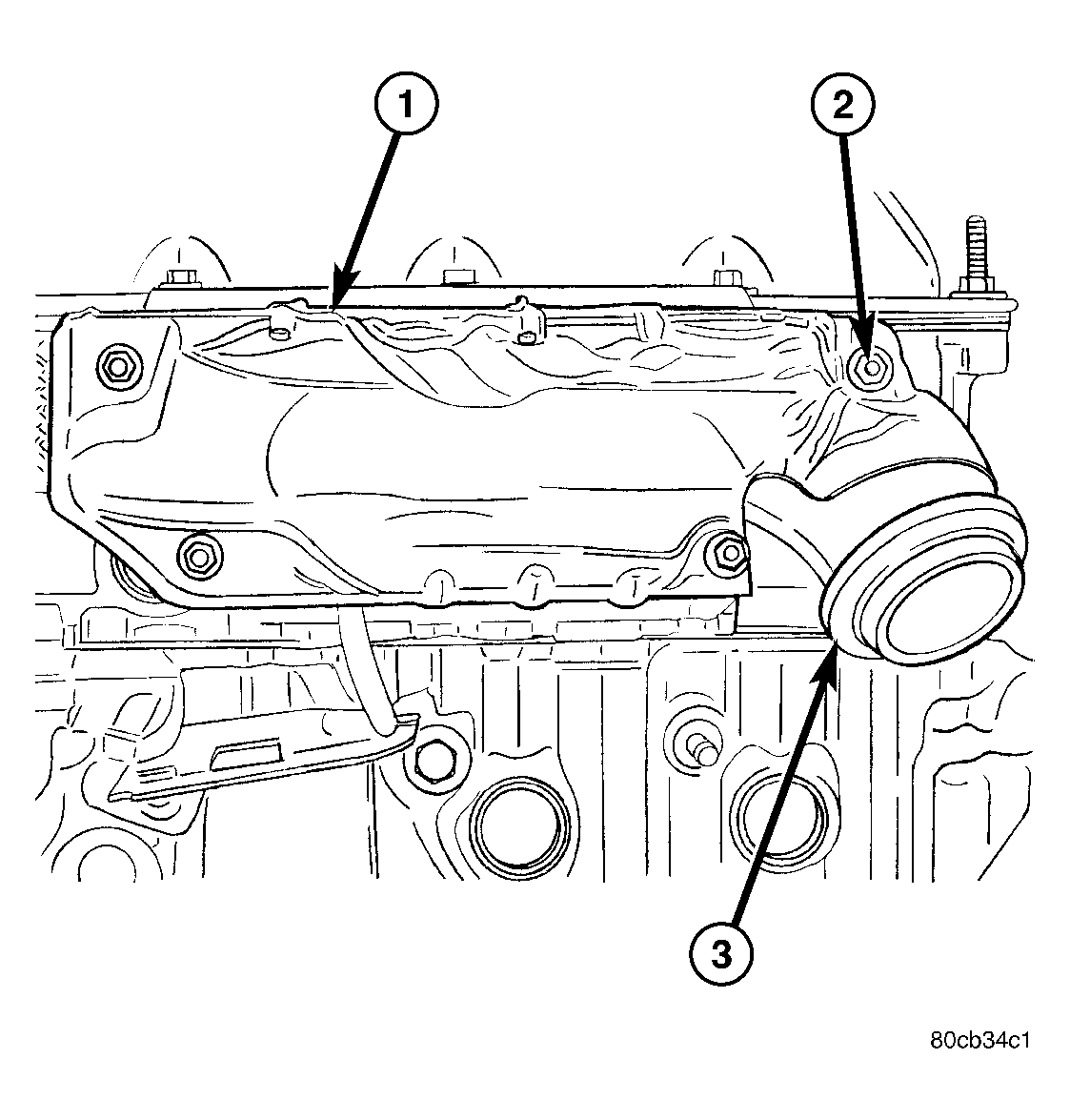

Fig 1: Exhaust Manifold - Left
GC0003870Courtesy of DAIMLERCHRYSLER CORP.
1 - HEAT SHIELD
2 - NUTS
3 - MANIFOLD FLANGE
  1. Disconnect the negative cable from the battery.
  2. Raise and support the vehicle.
  3. Remove the bolts and nuts attaching the exhaust pipe to the engine exhaust manifold.
  4. Lower the vehicle.
  5. Remove the exhaust heat shields (1).
  6. Remove bolts, nuts and washers attaching manifold to cylinder head.
  7. Remove manifold (See Fig 1) and gasket from the cylinder head.
