Front Mount: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative cable from the battery.
CAUTION:
Remove the fan blade, fan clutch and fan shroud before raising engine. Failure to do so may cause damage to the fan blade, fan clutch and fan shroud.
- Remove the fan blade, fan clutch and fan shroud. Refer to COOLING
for procedure.
- Remove the engine oil filter.
- Support the engine with a suitable jack and a block of wood across the full width of the engine oil pan.
- Remove the four (4) cylinder block-to-insulator mount bolts and the nut from the engine insulator mount through bolt.
- Using the jack, raise the engine high enough to remove the engine insulator mount through bolt and the insulator mount. See Fig 1 and Fig 2.

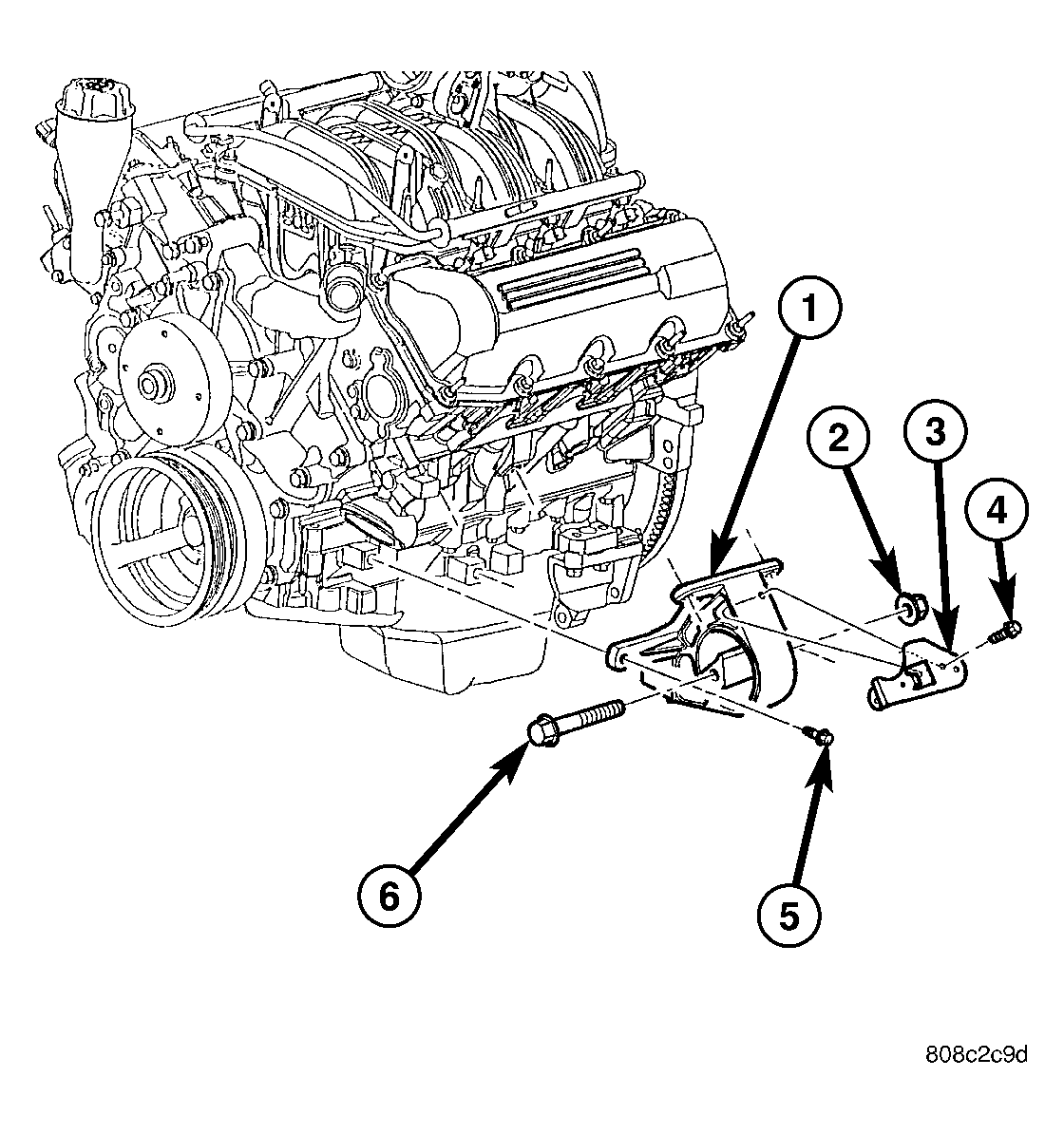

Courtesy of DAIMLERCHRYSLER CORP.
| 1 -MOUNT |
| 2 - NUT |
| 3 - SHIELD |
| 4 - FASTENER |
| 5 - BOLT |
| 6 - THRU BOLT |

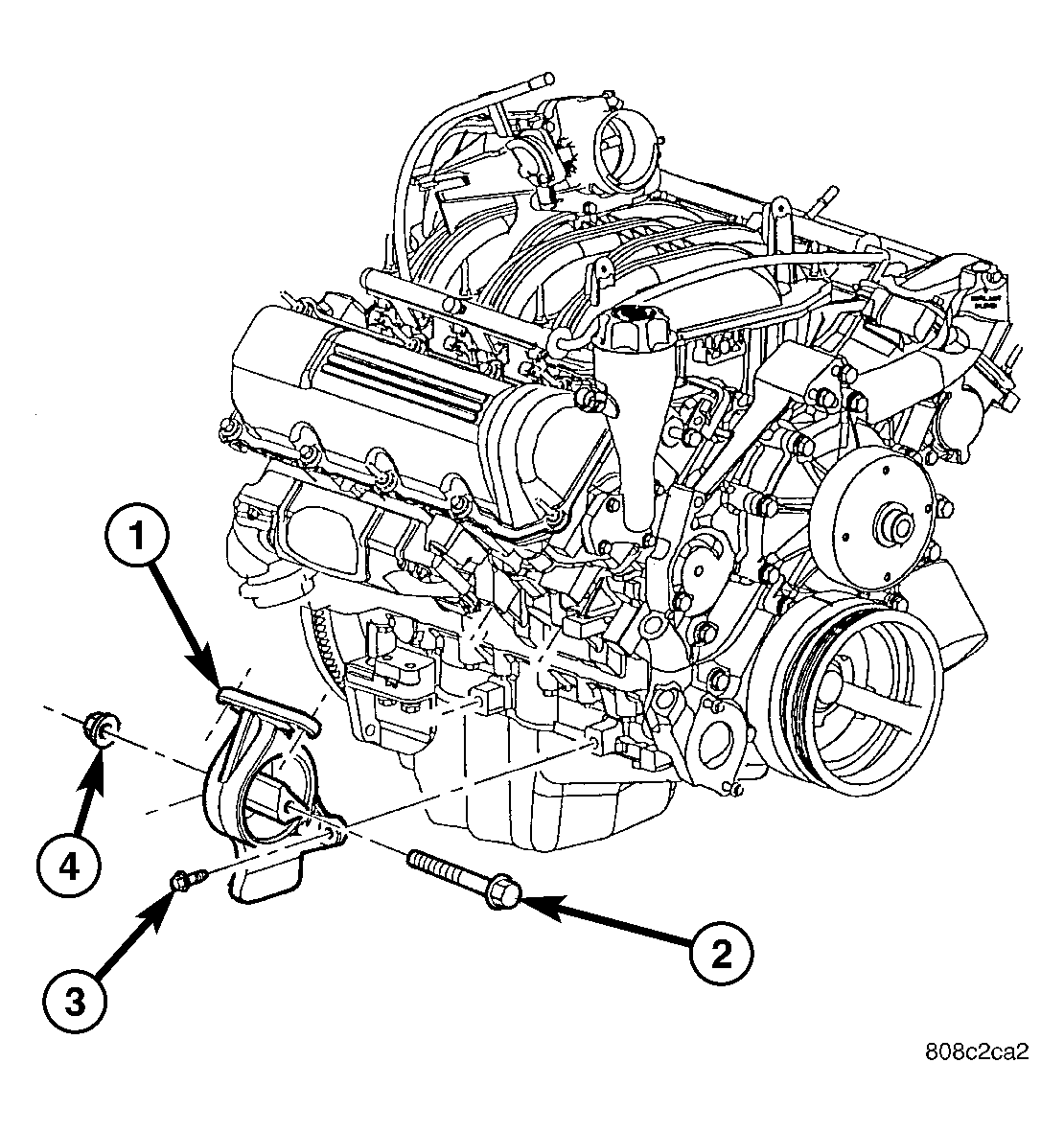

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - MOUNT |
| 2 - THRU BOLT |
| 3 - BOLT |
| 4 - NUT |
