Crankshaft Oil Seal - Rear: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Crankshaft Rear Oil Seal Guide Special Tool 8349-2 and Oil
GC0003827Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR CRANKSHAFT SEAL
2 - SPECIAL TOOL 8349-2 GUIDE
  1. Lubricate the crankshaft flange with engine oil.
  2. Position the magnetic seal guide Special Tool 8349-2 onto the crankshaft rear face. See Fig 1. Then position the crankshaft rear oil seal (1) onto the guide (2).

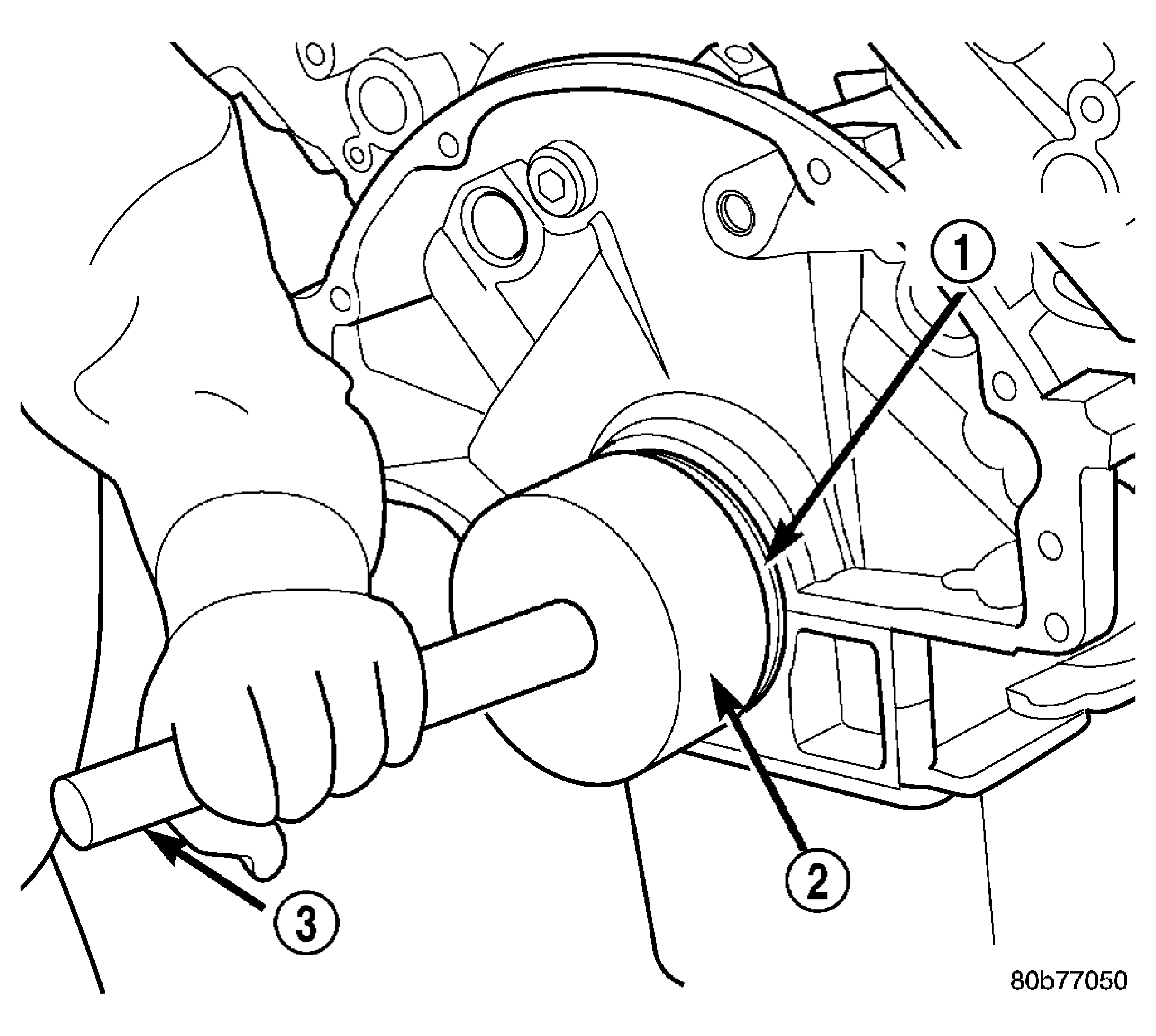

    Fig 2: Crankshaft Rear Oil Seal Installation
    GC0003828Courtesy of DAIMLERCHRYSLER CORP.
    1 - REAR CRANKSHAFT SEAL
    2 - SPECIAL TOOL 8349-1 INSTALLER
    3 - SPECIAL TOOL C-4171 HANDLE
  3. Using Special Tools 8349 Crankshaft Rear Oil Seal Installer (2) and C-4171 Driver Handle (3), with a hammer, tap the seal (1) into place. See Fig 2. Continue to tap on the driver handle until the seal installer seats against the cylinder block crankshaft bore.
  4. Install the flexplate.
  5. Install the transmission.
