Crankshaft Oil Seal - Front: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable from battery.
  2. Remove accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  3. Remove A/C compressor mounting fasteners and set aside.
  4. Drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .
  5. Remove upper radiator hose.
  6. Disconnect electrical connector for fan mounted inside radiator shroud.
  7. Remove radiator shroud attaching fasteners.
  8. Remove radiator cooling fan and shroud (Refer to COOLING/ENGINE/RADIATOR FAN - REMOVAL) .
  9. Remove crankshaft damper bolt.
  10. Remove damper using Special Tools 8513 Insert and 1026 Three Jaw Puller. See Fig 1.
    Fig 1: Crankshaft Damper Removal
    GC0003821Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 8513 INSERT
    2 - SPECIAL TOOL 1026

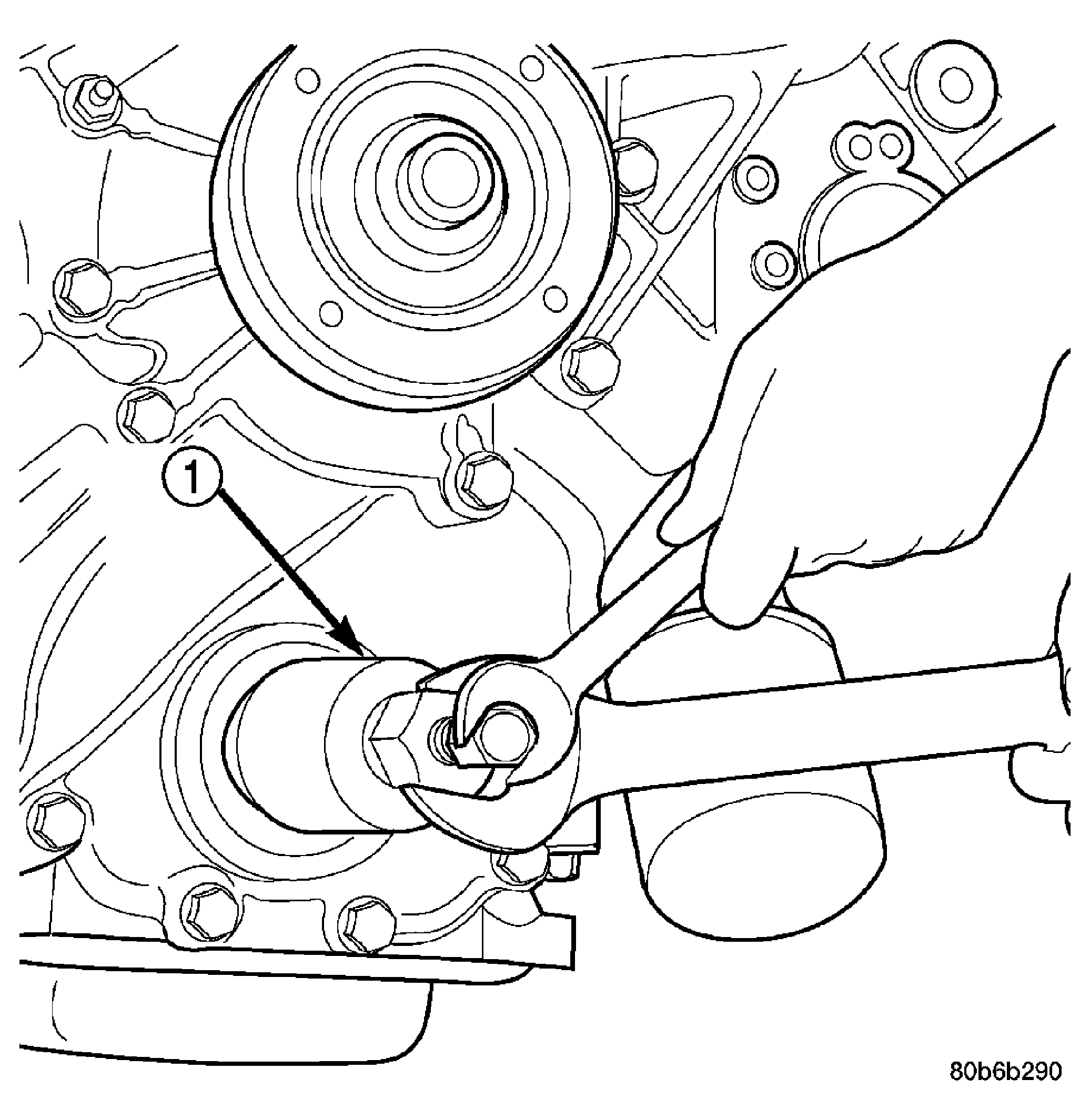

  11. Using Special Tool 8511, remove crankshaft front seal. See Fig 2.
Fig 2: Crankshaft Front Seal Removal
GC0003822Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL 8511
