Select Fit Identification
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

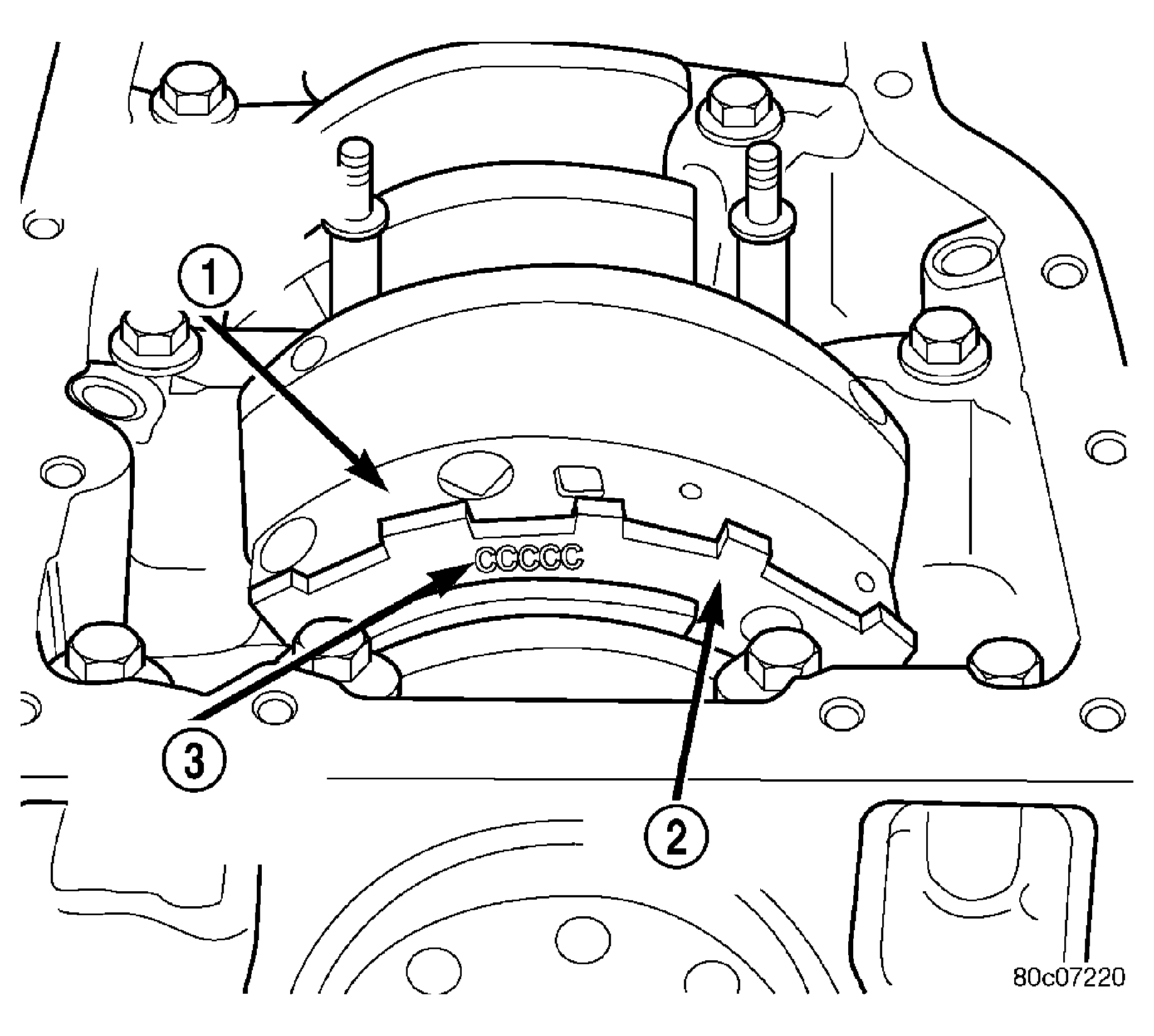

The main bearings are "select fit" to achieve proper oil clearances. For main bearing selection, the crankshaft position sensor target wheel has grade identification marks stamped into it. See Fig 1. These marks are read from left to right, corresponding with journal number 1, 2, 3, 4. The crankshaft position sensor target wheel is mounted to the number 6 counter weight on the crankshaft.
| 1 - REARMOST CRANKSHAFT COUNTER WEIGHT |
| 2 - TARGET WHEEL |
| 3 - MAIN BEARING SELECT FIT MARKINGS |
