Cover - Cylinder Head: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

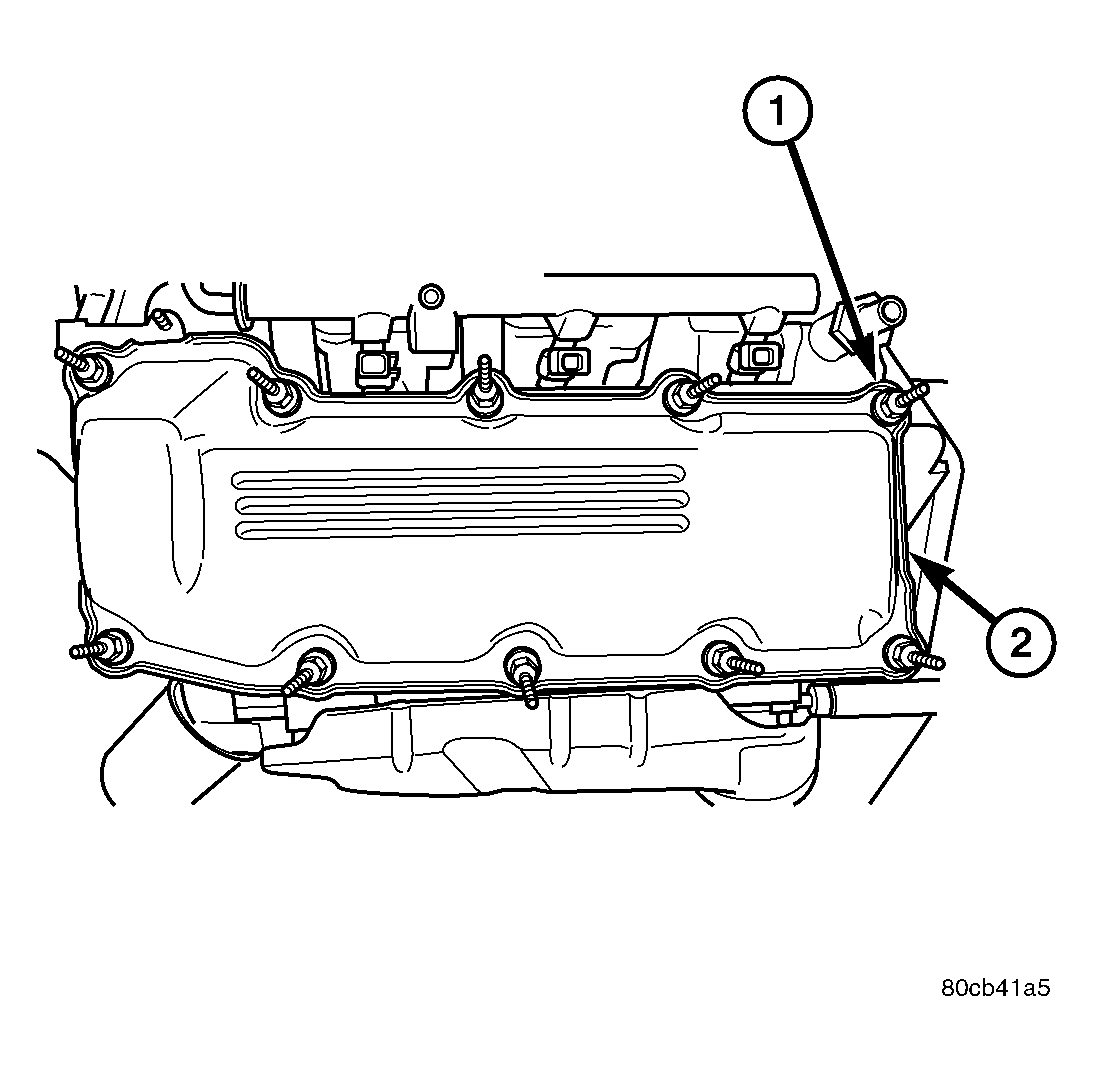

Fig 1: Cylinder Head Cover - Typical
GC0003804Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREWS
2 - CYLINDER HEAD COVER
  1. Disconnect negative cable from battery.
  2. Remove the resonator assemble and air inlet hose.
  3. Disconnect injector connectors and un-clip the injector harness.
  4. Route injector harness in front of cylinder head cover.
  5. Disconnect the left side breather tube and remove the breather tube.
  6. Remove the cylinder head cover mounting bolts (1).
  7. Remove cylinder head cover (1) and gasket. See Fig 1.
NOTE: The gasket may be used again, providing no cuts, tears, or deformation has occurred.


  1. Disconnect battery negative cable.
  2. Remove air cleaner assembly, resonator assembly and air inlet hose.
  3. Drain cooling system, below the level of the heater hoses (Refer to COOLING - STANDARD PROCEDURE) .
  4. Remove accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  5. Remove air conditioning compressor retaining bolts and move compressor to the left.
  6. Remove heater hoses.
  7. Disconnect injector and ignition coil connectors.
  8. Disconnect and remove positive crankcase ventilation (PCV) hose.
  9. Remove oil fill tube.
  10. Un-clip injector and ignition coil harness and move away from cylinder head cover.
  11. Remove right rear breather tube and filter assembly.
  12. Remove cylinder head cover retaining bolts.
  13. Remove cylinder head cover.
