Cover - Cylinder Head: Description

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

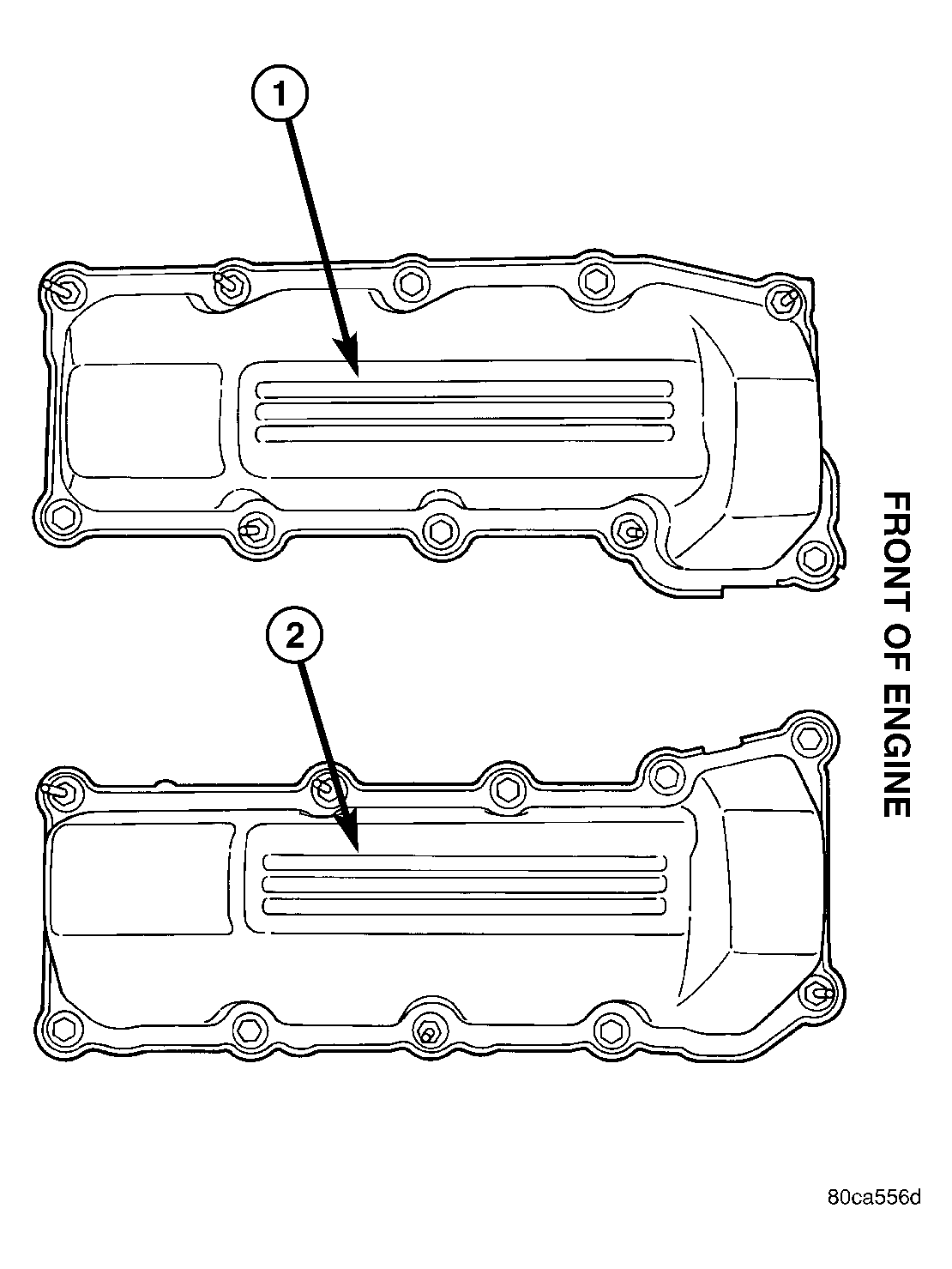

Fig 1: Cylinder Head Covers
GC0003803Courtesy of DAIMLERCHRYSLER CORP.
1 - LEFT SIDE CYLINDER HEAD COVER
2 - RIGHT SIDE CYLINDER HEAD COVER

The cylinder head covers. See Fig 1(1,2) are made of glass re-enforced thermoset plastic, and are not interchangable from side-to-side.
