Vibration Damper: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove accessory drive belts. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
  2. Remove crankshaft damper bolt.
  3. Remove damper using Special Tool 3-Jaw Puller 1026 and Insert 6827-A. See Fig 1.

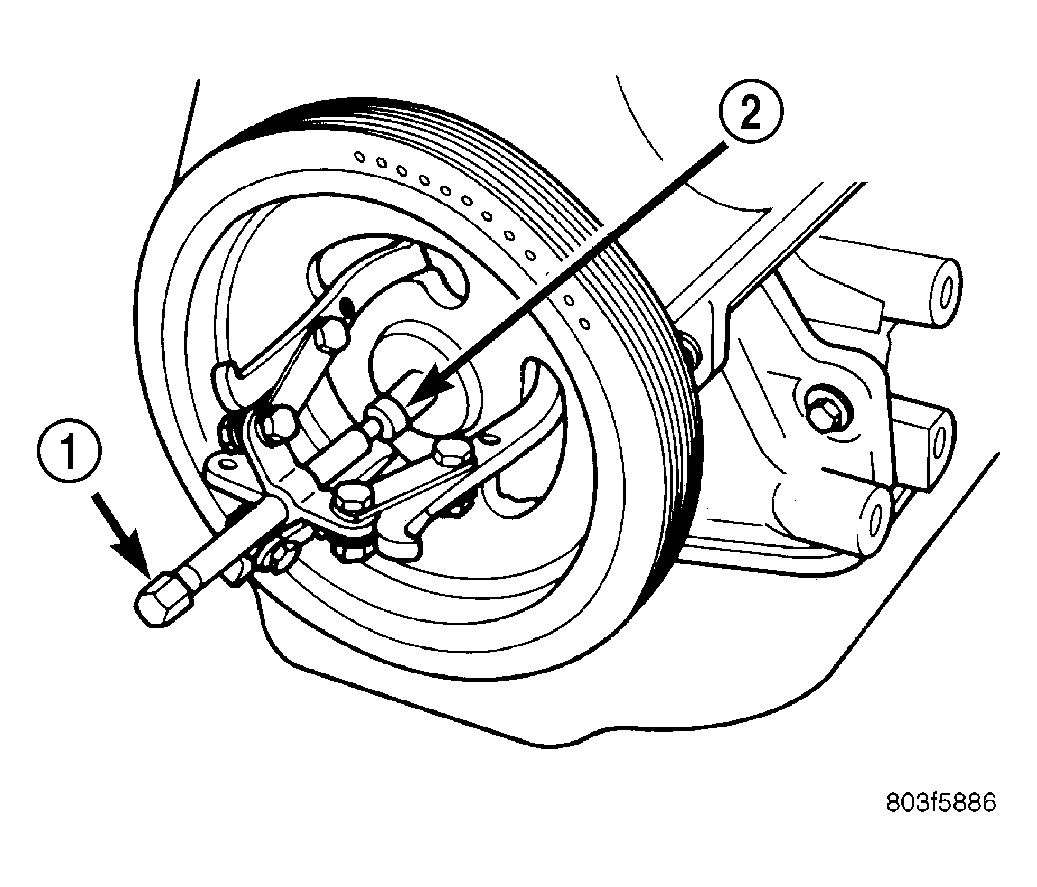

Fig 1: Crankshaft Vibration Damper - Removal - Typical
GC0024476Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL 1026 3-JAW PULLER
2 - SPECIAL TOOL 6827-A INSERT
