Vibration Damper: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Install crankshaft vibration damper using M12 1.75 x 150 mm bolt, washer, thrust bearing and nut from Special Tool 6792. See Fig 1.
- Install crankshaft vibration damper bolt and tighten to 142 N.m (105 ft. lbs.).
- Install accessory drive belts. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION)

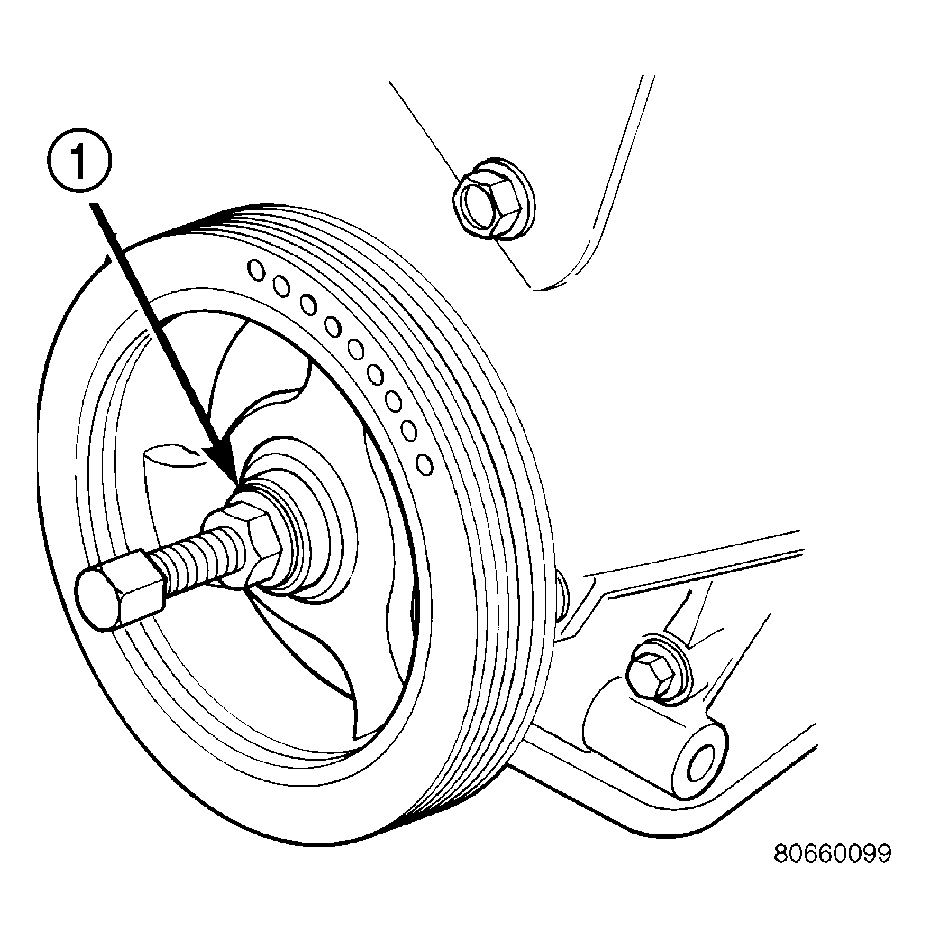

| 1 - M12-1.75 x 150 MM BOLT, WASHER AND THRUST BEARING FROM SPECIAL TOOL 6792 |
