Installation - Cylinder Head On

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Install valve seal/valve spring seat assembly. See Fig 1. Push the assembly down to seat it onto the valve guide.
Install valve spring and retainer, use Special Tool MD-998772-A with adapter 6779 to compress valve springs only enough to install locks. Correct alignment of tool is necessary to avoid nicking valve stems.
Remove air hose and install spark plugs.
Install camshafts and cylinder head cover .

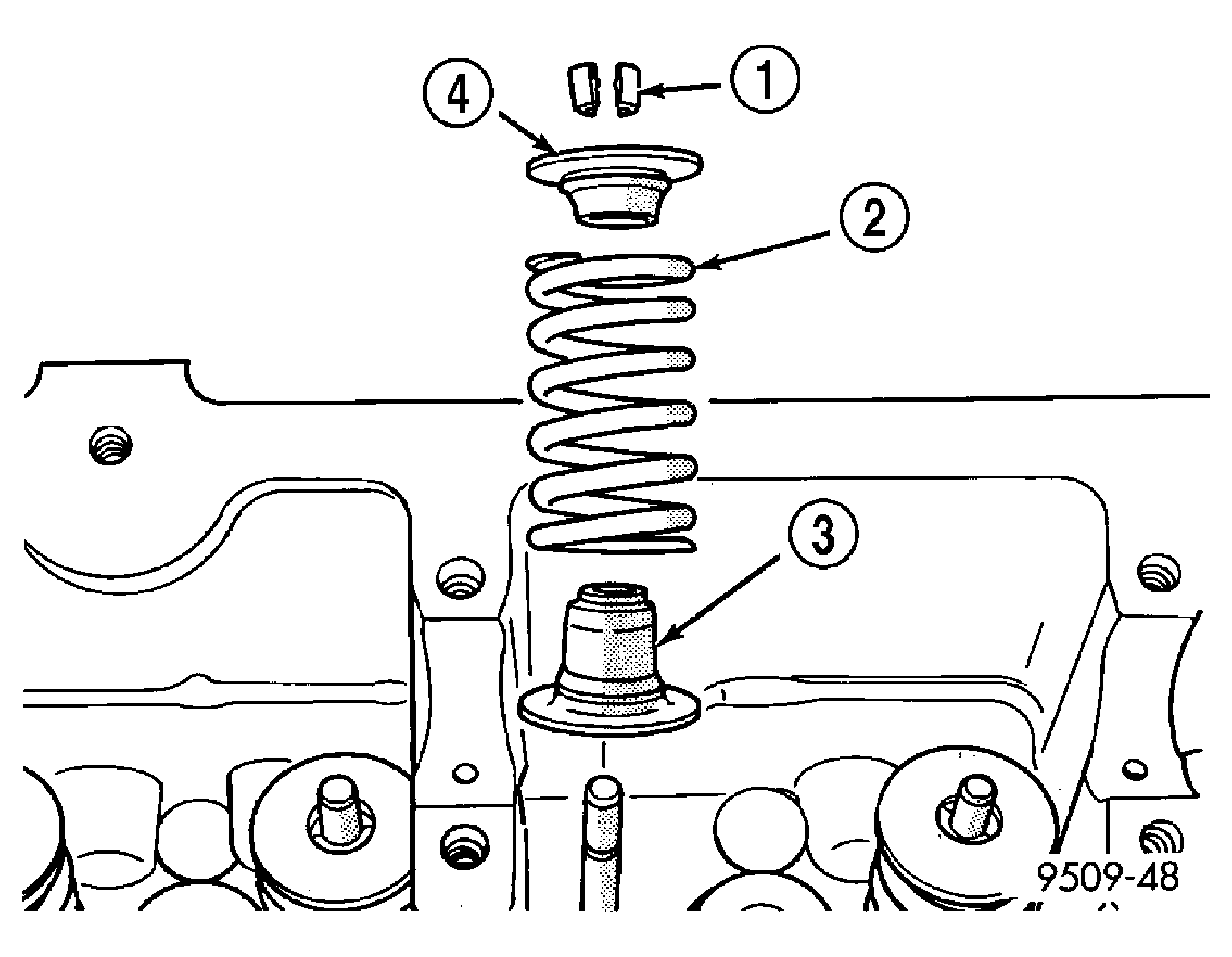

Fig 1: Identifying Valve Spring Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - 3-GROOVE -VALVE RETAINING LOCKS

2 - VALVE SPRING

3 - VALVE SEAL AND VALVE SPRING SEAT ASSEMBLY

4 - VALVE SPRING RETAINER
