Rear Cover

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install timing belt rear cover and bolts. See Fig 1.

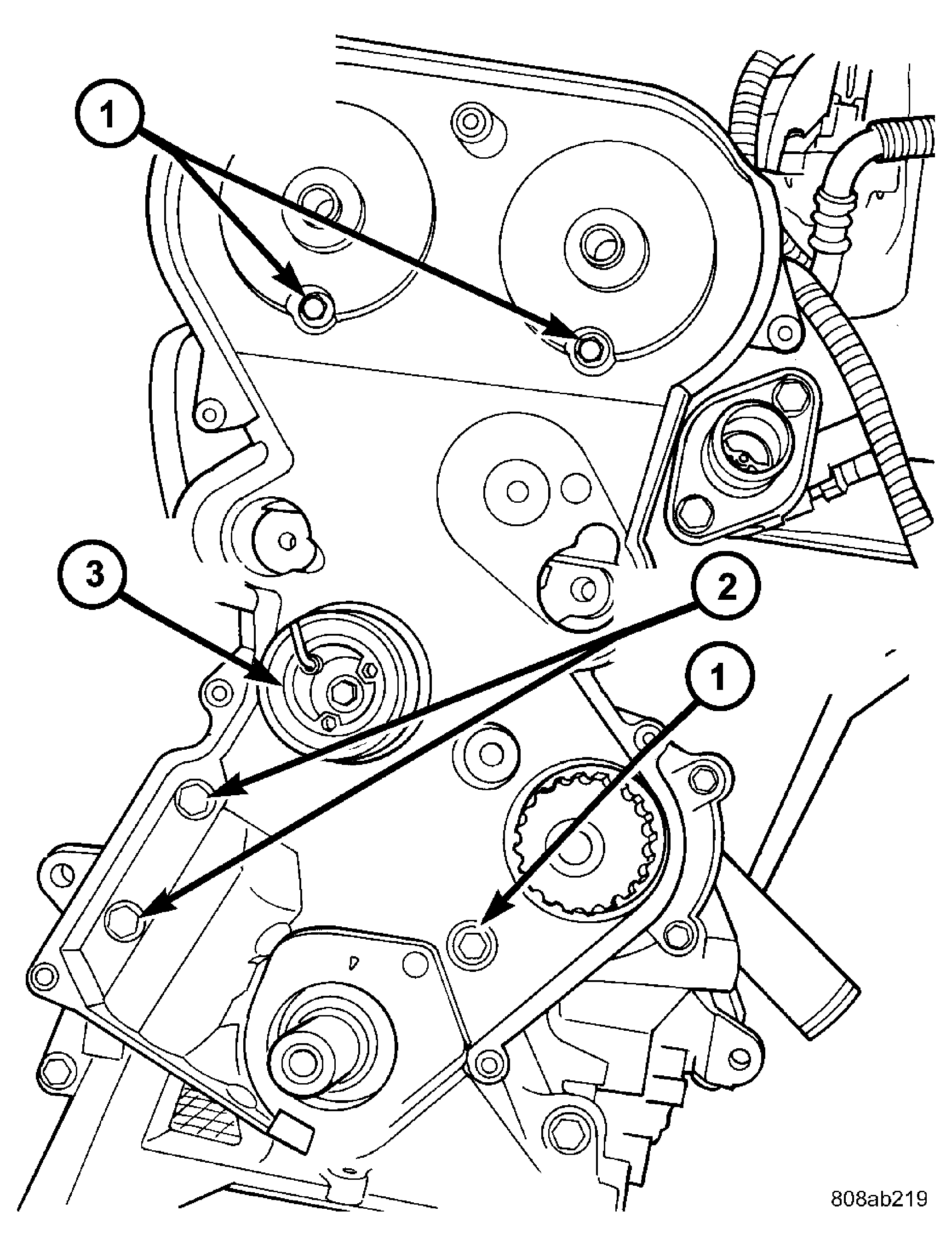

    Fig 1: Timing Belt Rear Cover
    GC0024503Courtesy of DAIMLERCHRYSLER CORP.
    1 - REAR COVER TO CYLINDER HEAD FASTENERS
    2 - REAR COVER TO ENGINE BLOCK FASTENERS
    3 - BELT TENSIONER
    CAUTION: Do not use an impact wrench for tightening camshaft sprocket bolt. Damage to the timing locating pin can occur. Hand tighten using a wrench ONLY.
  2. Install camshaft sprockets. Hold sprockets with Special Tool 6848 and tighten center bolt to 101 N.m (75 ft. lbs.).
  3. Install timing belt idler pulley and tighten mounting bolt to 61 N.m (45 ft. lbs.).
  4. Install timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION)
  5. Install front covers.
