Manual Transmission:

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the support cushion to the transmission. See Fig 1 or Fig 2. Install the bolts and tighten.

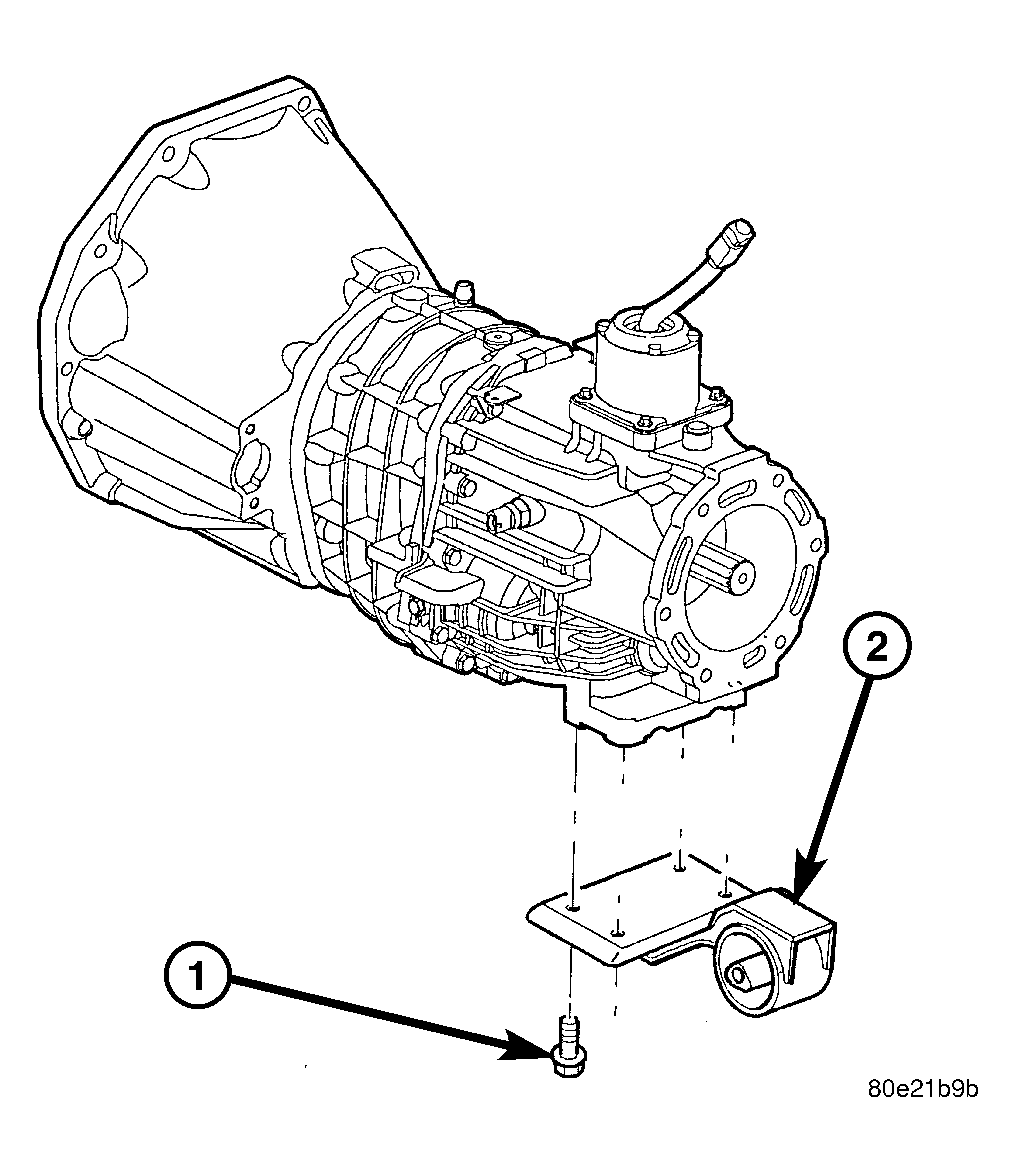

    Fig 1: TRANSMISSION MOUNT - 2.4L MANUAL TRANS
    GC0026079Courtesy of DAIMLERCHRYSLER CORP.
    1 - TRANSMISSION MOUNT
    2 - MOUNTING BOLT

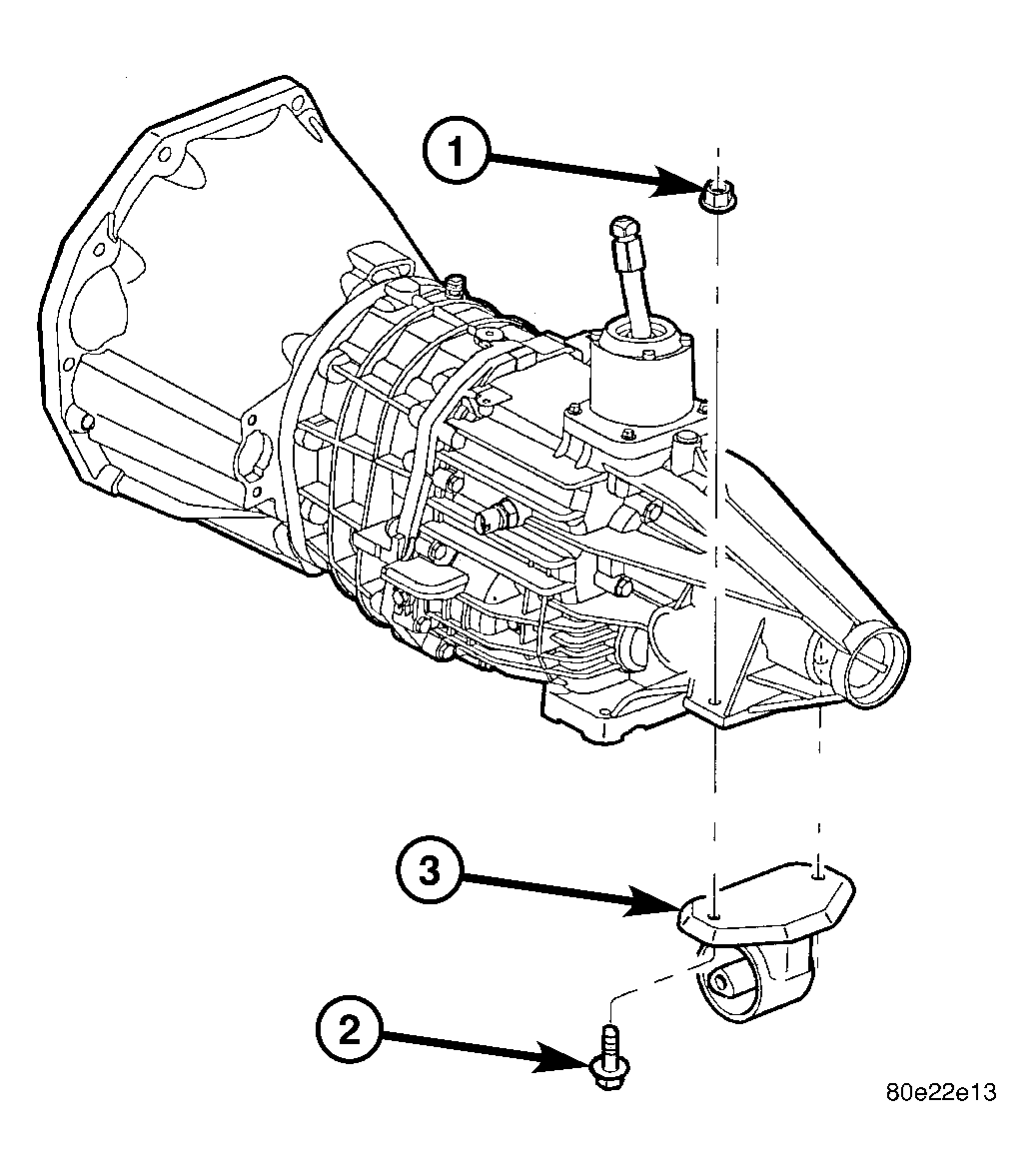

    Fig 2: TRANSMISSION MOUNT - 3.7L MANUAL TRANS 2WD
    GC0026080Courtesy of DAIMLERCHRYSLER CORP.
    1 - NUT
    2 - BOLT
    3 - TRANS MOUNT
  2. Position the crossmember in the vehicle. Install the crossmember to mount through bolt and nut.
  3. Install crossmember-to-sill bolts and tighten to 41 N.m (30 ft. lbs.) torque.
  4. Remove the transmission support.
  5. Lower the vehicle.
  6. Connect negative cable to battery.
