Oil Pump: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure all surfaces are clean and free of oil and dirt.

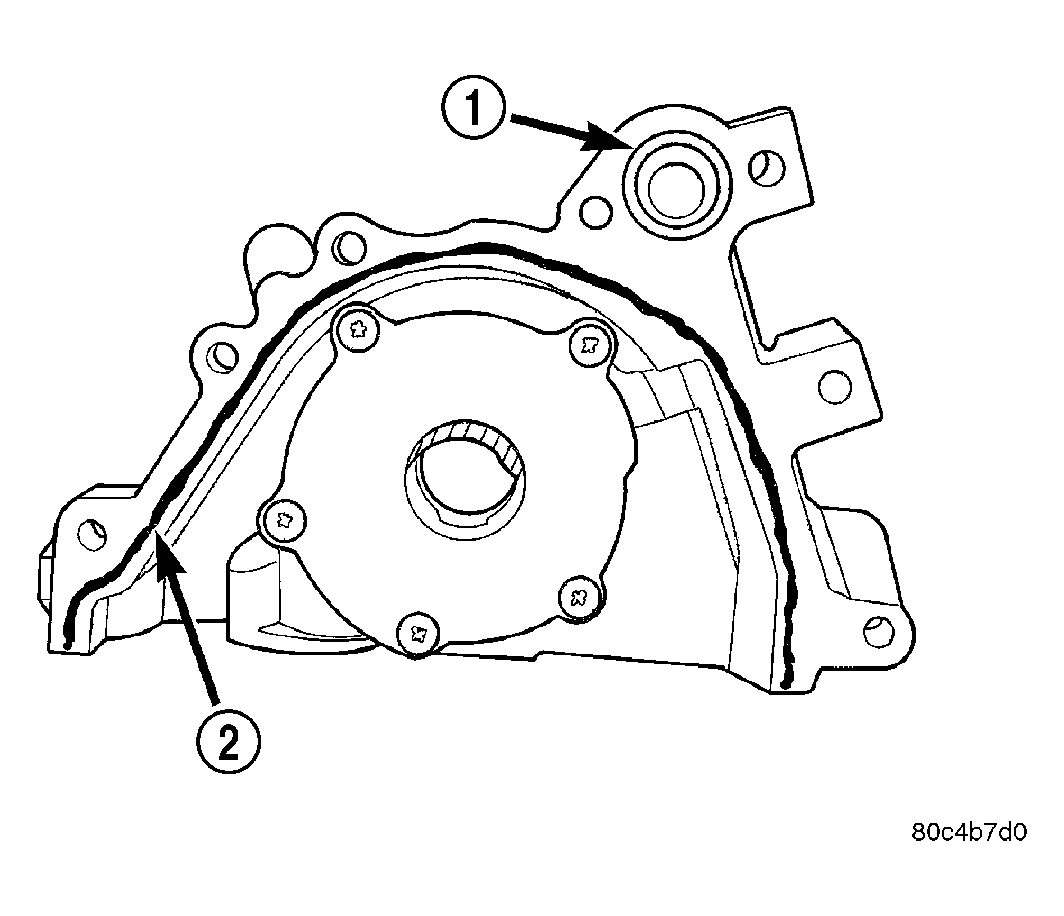

- Apply Mopar® Gasket Maker to oil pump as shown in Fig 1. Install O-ring into oil pump body discharge passage.
1 - O-RING 2 - SEALER LOCATION - Prime oil pump with engine oil before installation.
- Align oil pump rotor flats with flats on crankshaft. Install the oil pump to the block.CAUTION: To align, the front crankshaft seal MUST be out of pump, or damage may result.
- Install new front crankshaft seal using Special Tool 6780. See Fig 2.
1 - PROTECTOR 2 - SEAL 3 - SPECIAL TOOL 6780 - Install crankshaft key. See Figure.CAUTION: The crankshaft sprocket is set to a predetermined depth from the factory for correct timing belt tracking. If removed, use of Special Tool 6792 is required to set the sprocket to original installation depth. An incorrectly installed sprocket will result in timing belt and engine damage.
- Install crankshaft sprocket using Special Tool 6792. See Fig 3.
1 - SPECIAL TOOL 6792 2 - TIGHTEN NUT TO INSTALL - Install oil pump pick-up tube.
- Install oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION)
- Install timing belt rear cover. (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTALLATION)
- Install timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION)
