Oil Pump: Disassembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

To remove the relief valve, proceed as follows:

Remove the threaded plug and gasket from the oil pump. See Fig 1.
Remove spring and relief valve. See Fig 1.

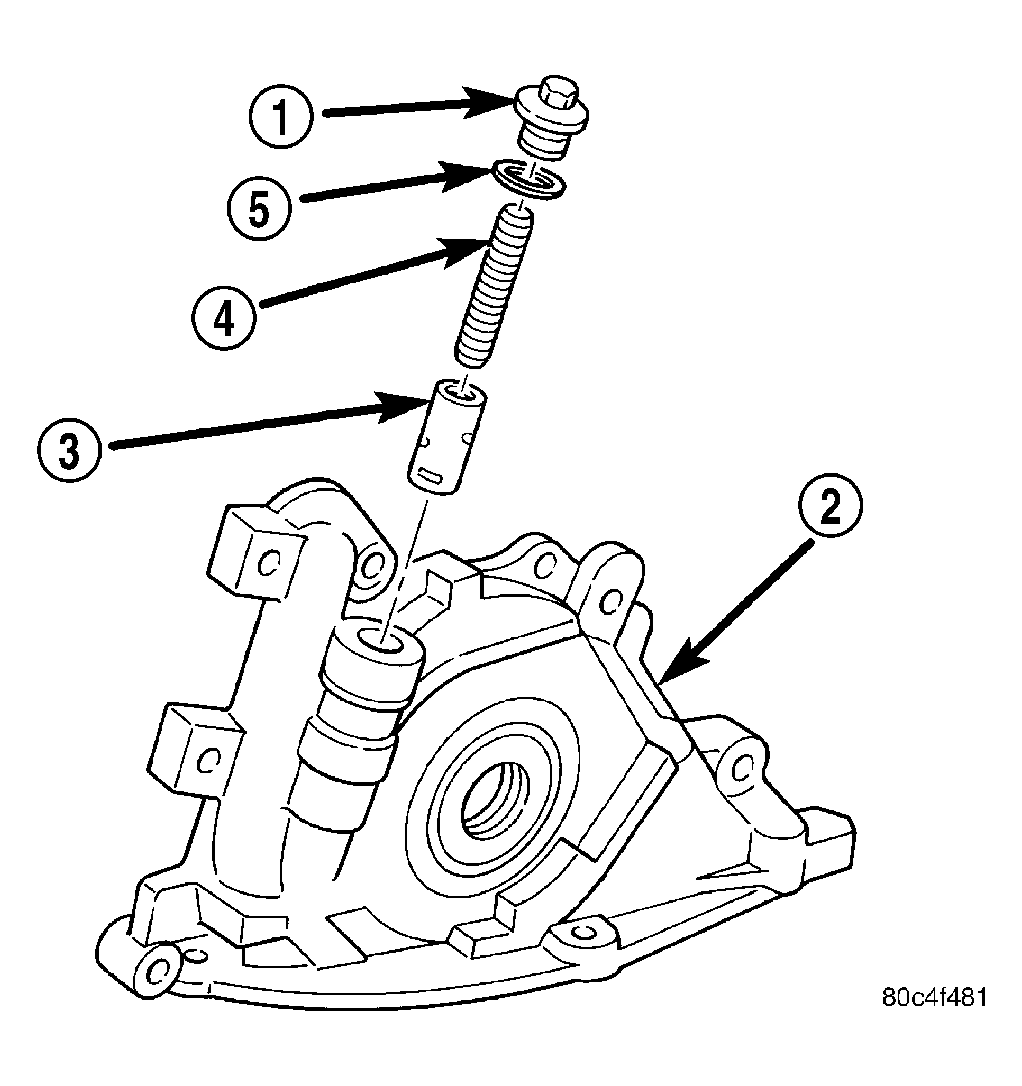

Fig 1: Oil Pressure Relief Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - PLUG

2 - OIL PUMP BODY

3 - RELIEF VALVE

4 - SPRING

5 - SEAL

Remove oil pump cover fasteners, and lift off cover. See Fig 2.
Remove pump rotors. See Fig 2.
Wash all parts in a suitable solvent and inspect carefully for damage or wear.

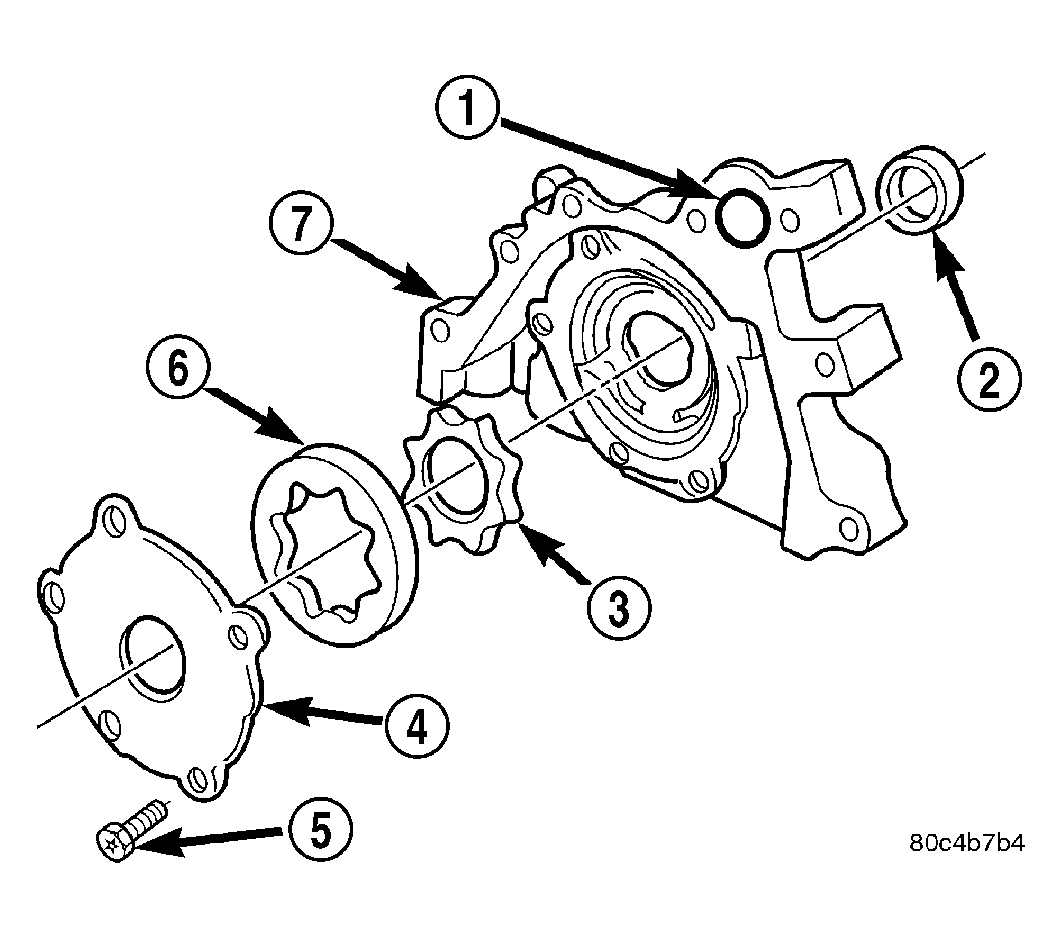

Fig 2: Oil Pump

Courtesy of DAIMLERCHRYSLER CORP.

1 - O-RING

2 - SEAL

3 - INNER ROTOR

4 - OIL PUMP COVER

5 - FASTENER

6 - OUTER ROTOR

7 - OIL PUMP BODY
