Intake Manifold: Description

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The intake manifold is a two piece aluminum casting that attaches to the cylinder head with fasteners. The manifold is a long branch design to enhance low and mid-range torque See Fig 1.

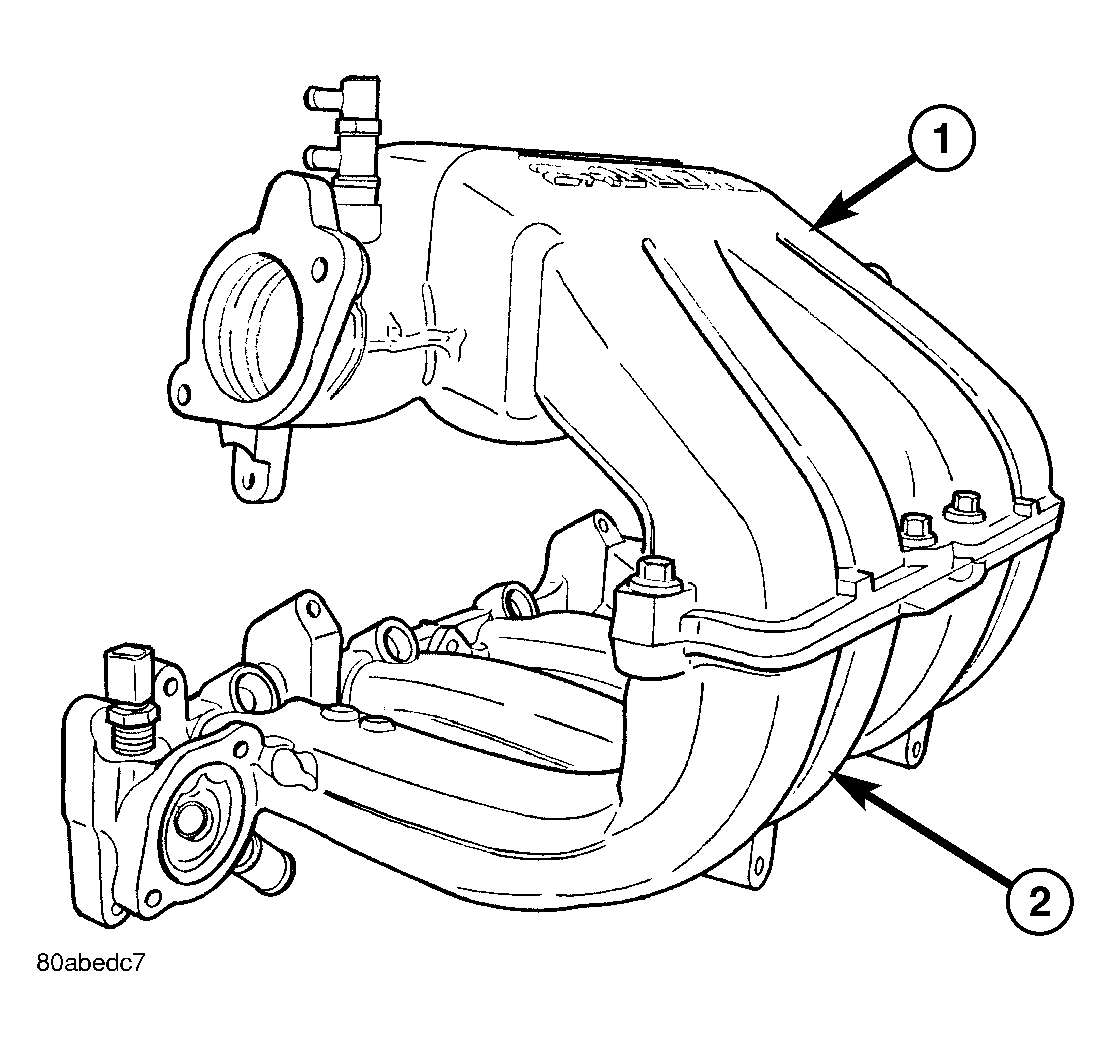

Fig 1: Intake Manifold - Upper and Lower

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER INTAKE MANIFOLD

2 - LOWER INTAKE MANIFOLD
