Front Mount: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator mount assembly. See Fig 1 and Fig 2.

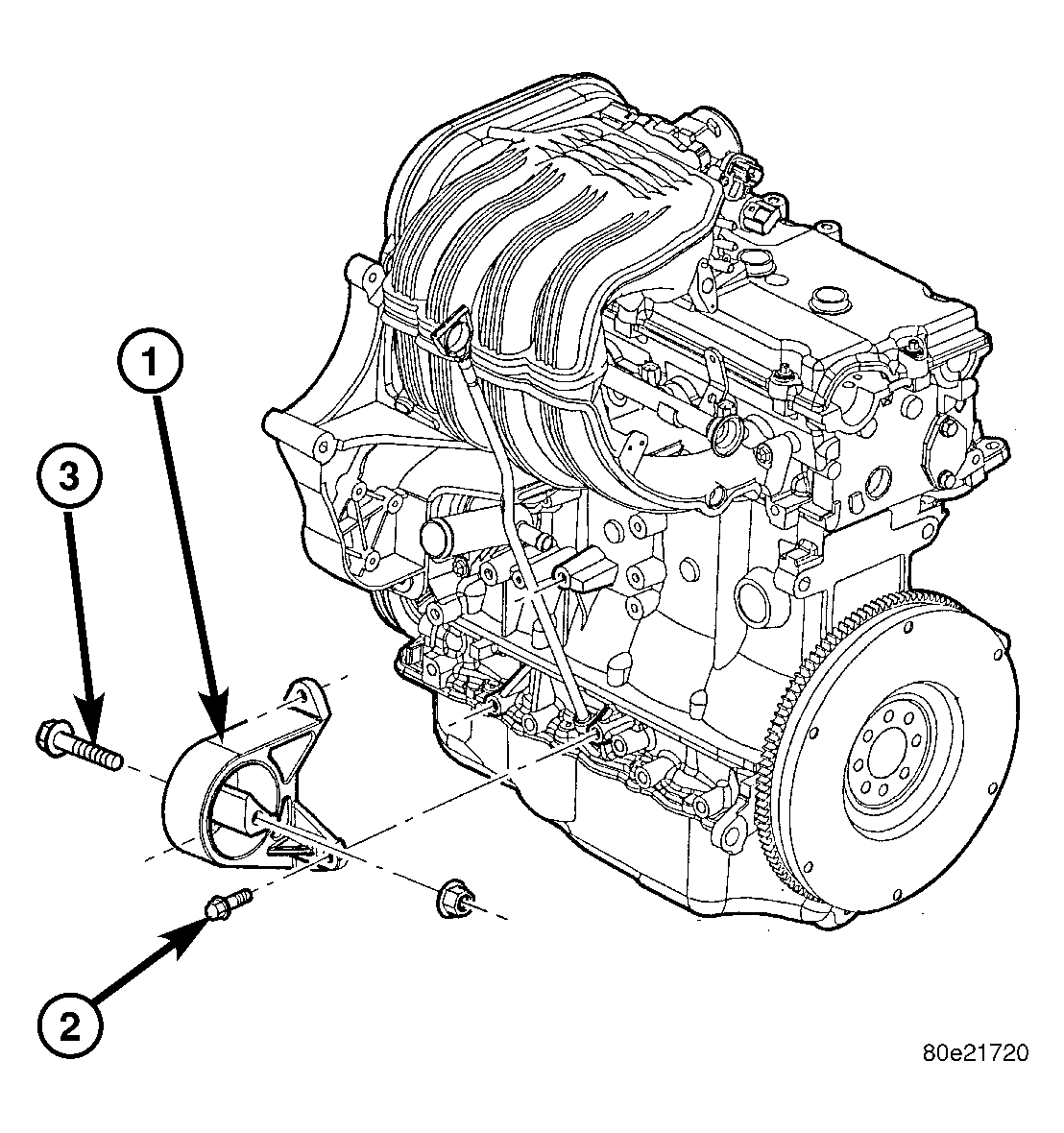

    Fig 1: LH ENGINE MOUNT
    GC0026077Courtesy of DAIMLERCHRYSLER CORP.
    1 - ENGINE MOUNT
    2 - ENGINE MOUNT BOLT (3)
    3 - ENGINE MOUNT THROUGH BOLT

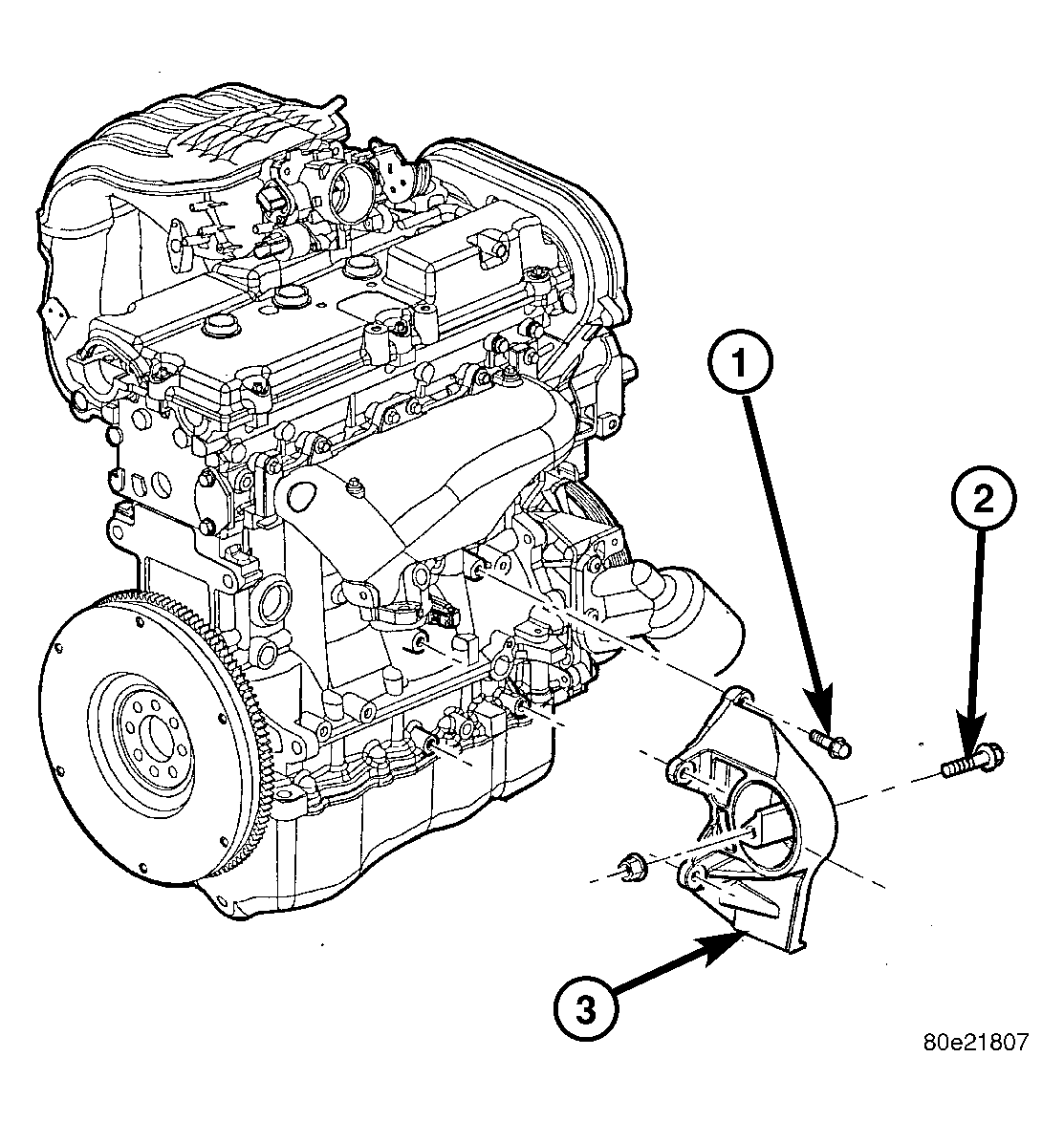

    Fig 2: RH ENGINE MOUNT
    GC0026078Courtesy of DAIMLERCHRYSLER CORP.
    1 - ENGINE MOUNT BOLT (4)
    2 - ENGINE MOUNT THROUGH BOLT
    3 - ENGINE MOUNT
  2. Tighten the mount to engine bolts.
  3. Loosely install the front engine mount through bolt to the insulator.
  4. Lower the engine.
  5. Tighten the through bolt.
  6. Lower the vehicle.
