HCU (Hydraulic Control Unit): Disassembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

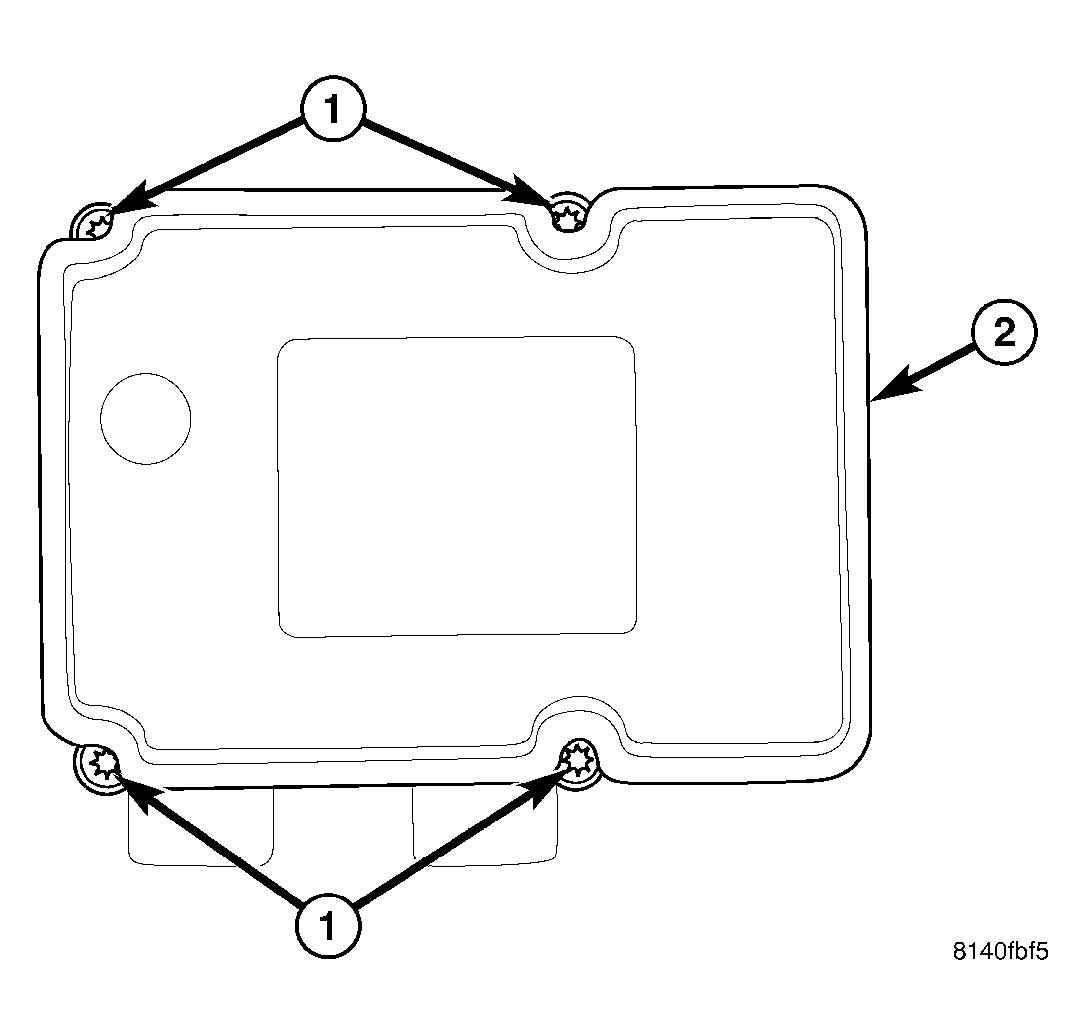

Fig 1: MK25E ABM Mounting Screws

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING SCREWS

2 - ABM

Remove the four screws (1) attaching the ABM module to the HCU (2). See Fig 1.

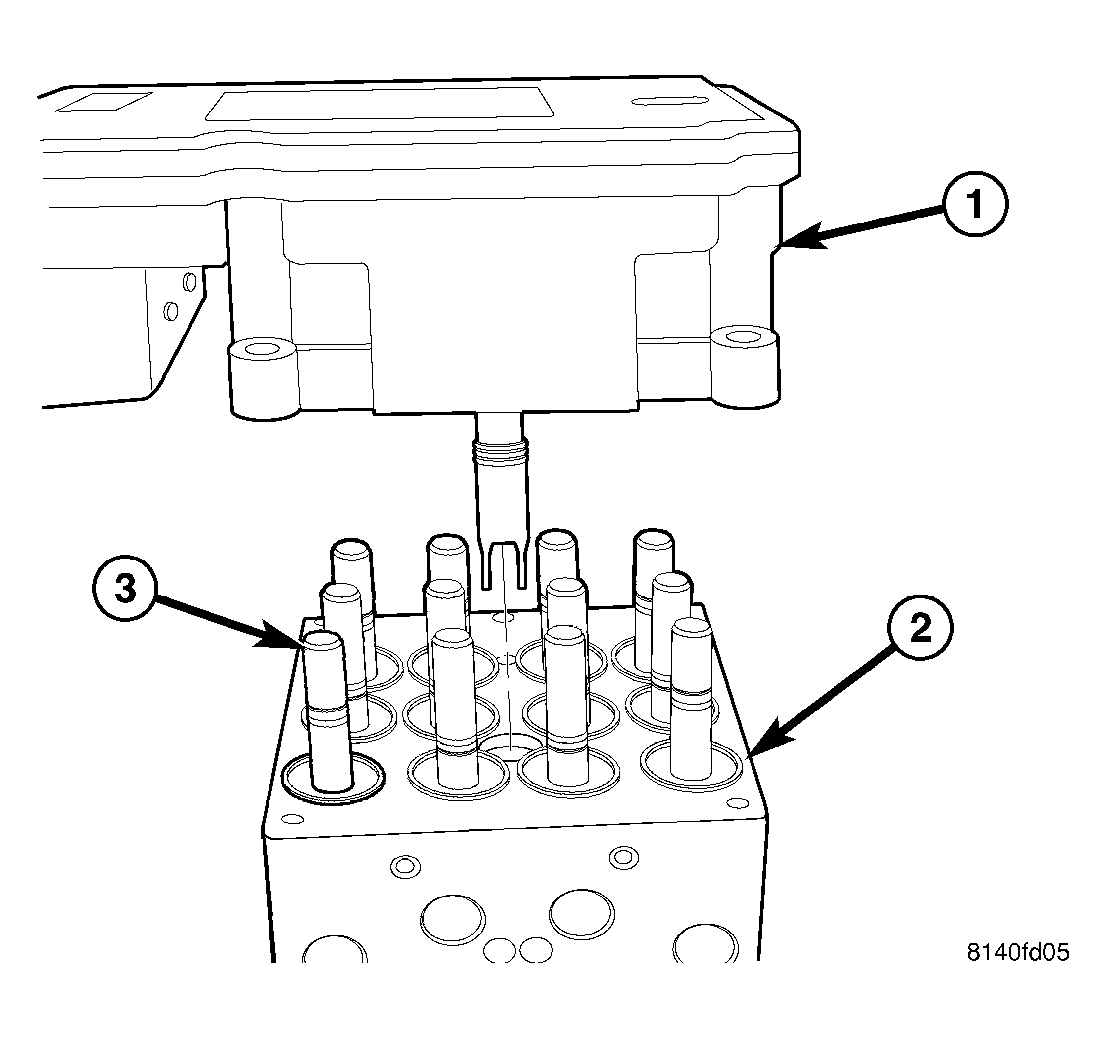

Fig 2: ABM Assembly To HCU
Courtesy of DAIMLERCHRYSLER CORP.

1 - ABM

2 - HCU

3 - SOLENOID VALVE STEM
Separate the ABM module (1) from the HCU (2). See Fig 2.
