Support Plate: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Brake Shoes
GC0025507Courtesy of DAIMLERCHRYSLER CORP.
1 - SUPPORT PLATE
2 - PARK BRAKE SHOES
3 - EQUALIZER
4 - SPRINGS
5 - HOLD DOWN CLIPS
6 - ADJUSTER
  1. Install support plate on axle flange. Tighten attaching bolts to 115 N.m (85 ft. lbs.).
  2. Install the park brake shoes (2). See Fig 1, (Refer to BRAKES/PARKING BRAKE/SHOES - INSTALLATION) .
  3. Install parking brake cable in the brake lever.

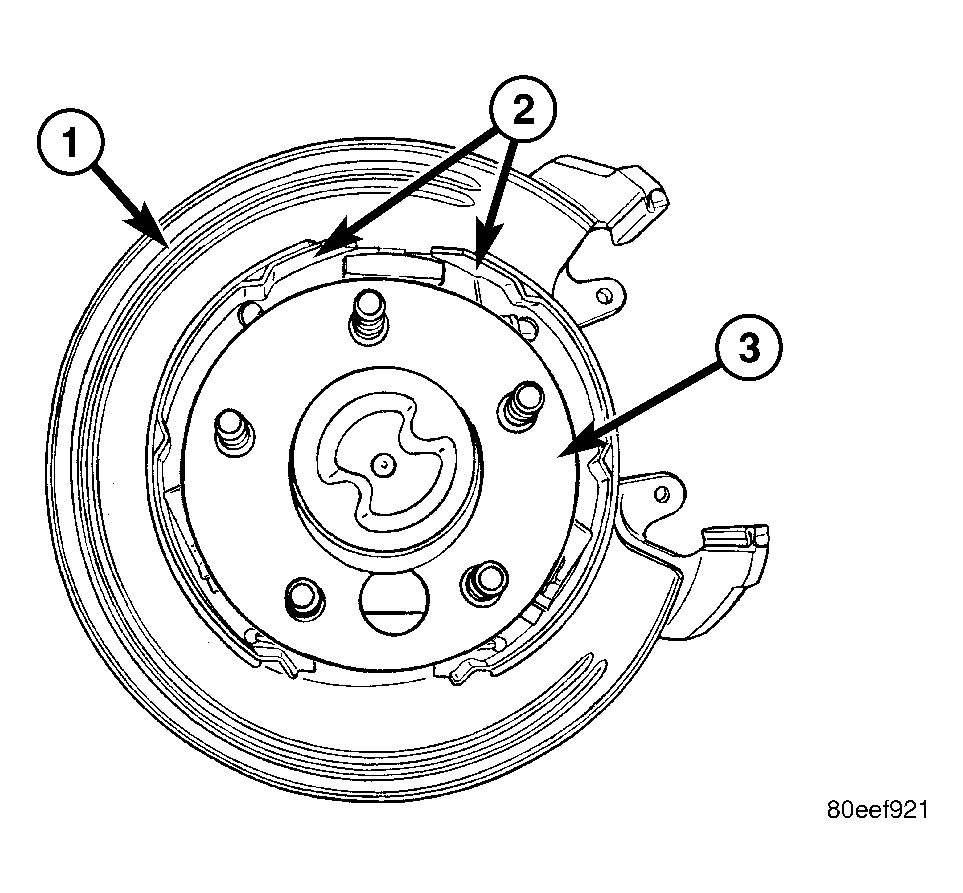

    Fig 2: Park Brake Shoes Installed
    GC0025506Courtesy of DAIMLERCHRYSLER CORP.
    1 - SUPPORT PLATE
    2 - PARK BRAKE SHOES
    3 - AXLE
  4. Install axle shaft (3). See Fig 2. (Refer to INSTALLATION ).
  5. Adjust brake shoes to drum with brake gauge (Refer to BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS) .
  6. Install the rotor (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION) .
  7. Install the caliper (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION) .
  8. Install the wheel and tire assembly (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
