Brakes - Base: Shoes: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

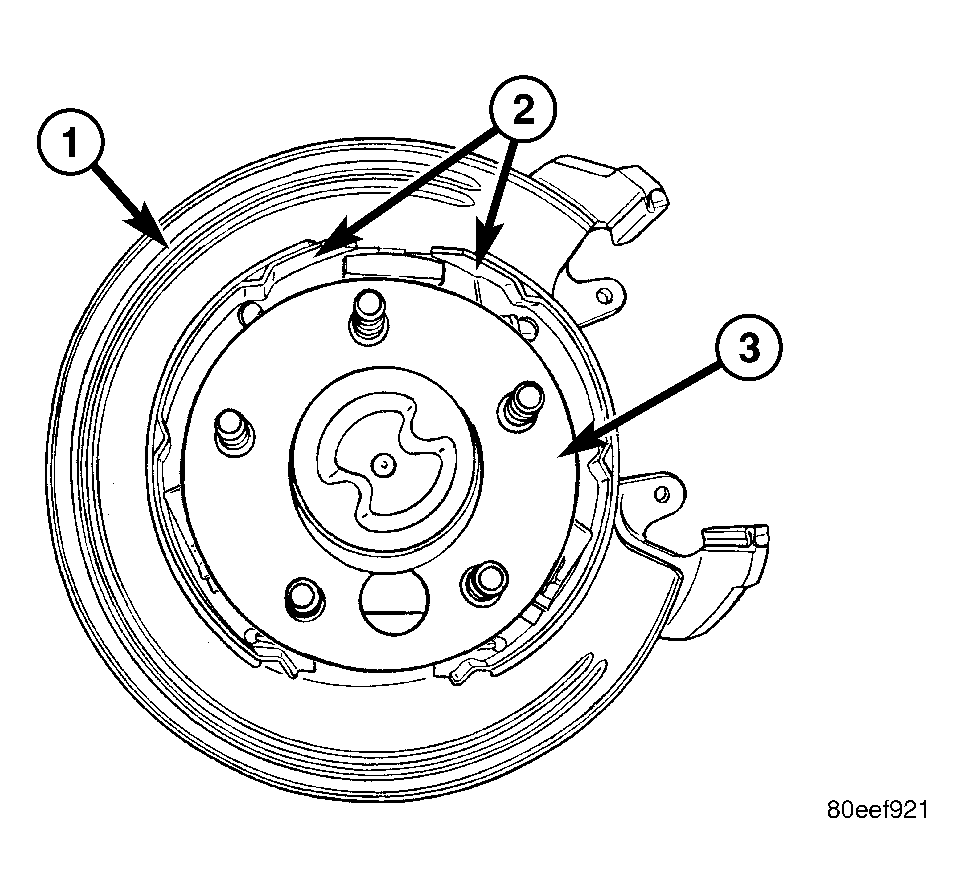

Fig 1: Park Brake Shoes Installed

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUPPORT PLATE

2 - PARK BRAKE SHOES

3 - AXLE

Raise and support the vehicle.
Remove the tire and wheel assembly.
Remove the disc brake caliper. See Fig 1, (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - REMOVAL) .

Remove the disc brake rotor. See Fig 1, (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL) .

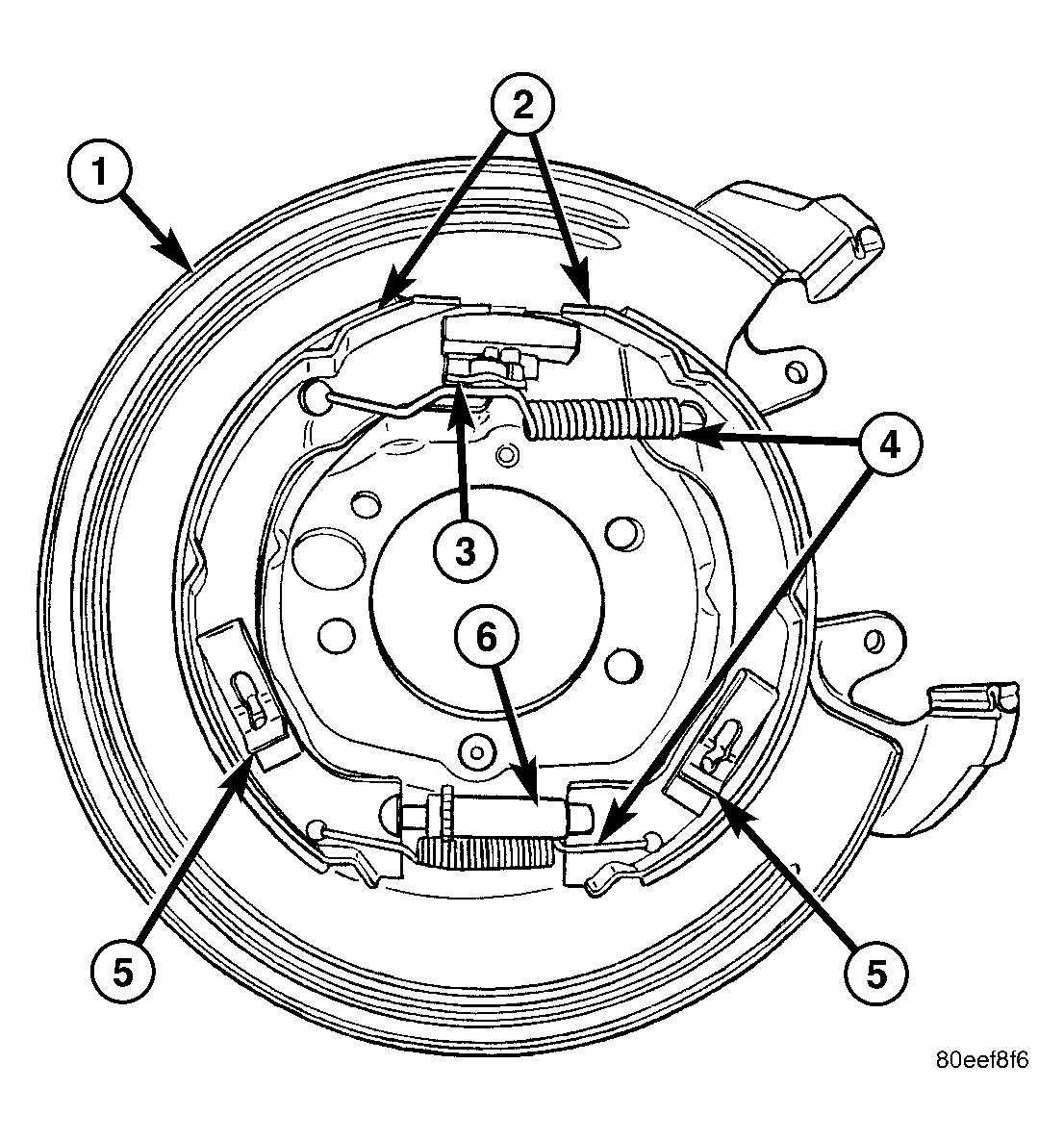

Fig 2: Brake Shoes

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUPPORT PLATE

2 - PARK BRAKE SHOES

3 - EQUALIZER

4 - SPRINGS

5 - HOLD DOWN CLIPS

6 - ADJUSTER

Disassemble the rear park brake shoes (2). See Fig 2.
