Brakes - Base: Shoes: Description

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

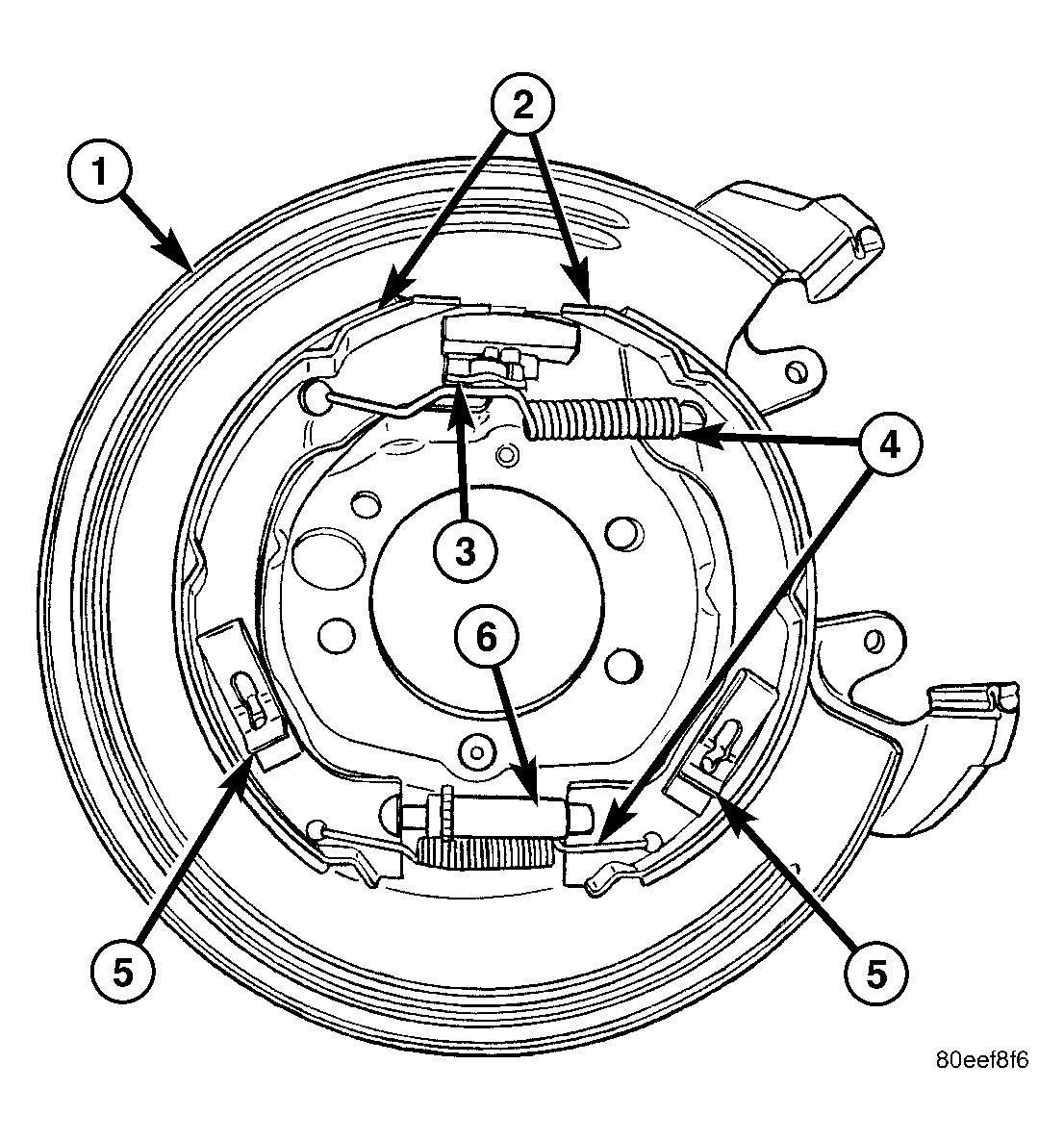

Fig 1: Brake Shoes

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUPPORT PLATE

2 - PARK BRAKE SHOES

3 - EQUALIZER

4 - SPRINGS

5 - HOLD DOWN CLIPS

6 - ADJUSTER

Drum in hat park brakes are dual shoe, internal expanding units with an automatic self adjusting mechanism. See Fig 1.
