Standard Procedure - Master Cylinder Bleeding
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
A new master cylinder should be bled before installation on the vehicle. Required bleeding tools include bleed tubes and a wood dowel to stroke the pistons. Bleed tubes can be fabricated from brake line.
- Mount master cylinder in vise.

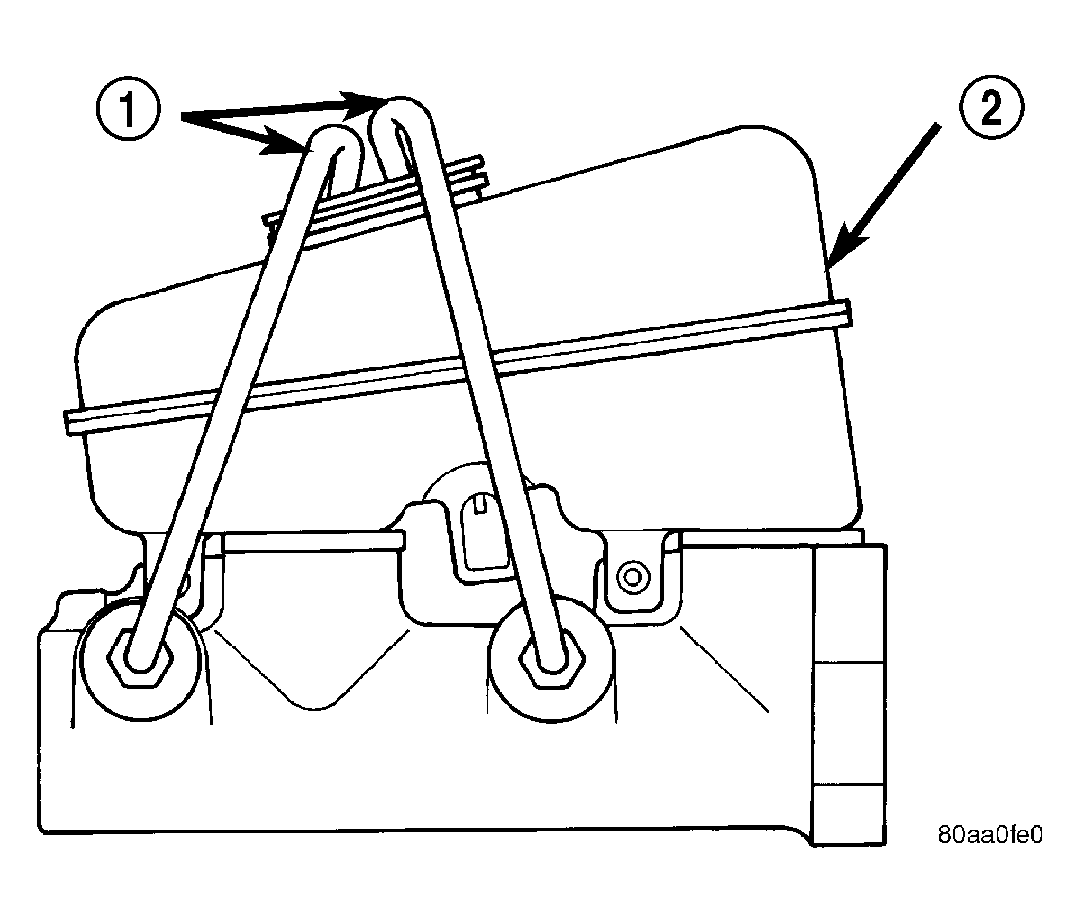

- Attach bleed tubes to cylinder outlet ports. Then position each tube end into reservoir. See Fig 1.
- Fill reservoir with fresh brake fluid.
- Press cylinder pistons inward with wood dowel. Then release pistons and allow them to return under spring pressure. Continue bleeding operations until air bubbles are no longer visible in fluid.
| 1 - BLEEDING TUBES |
| 2 - RESERVOIR |
