Master Cylinder: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

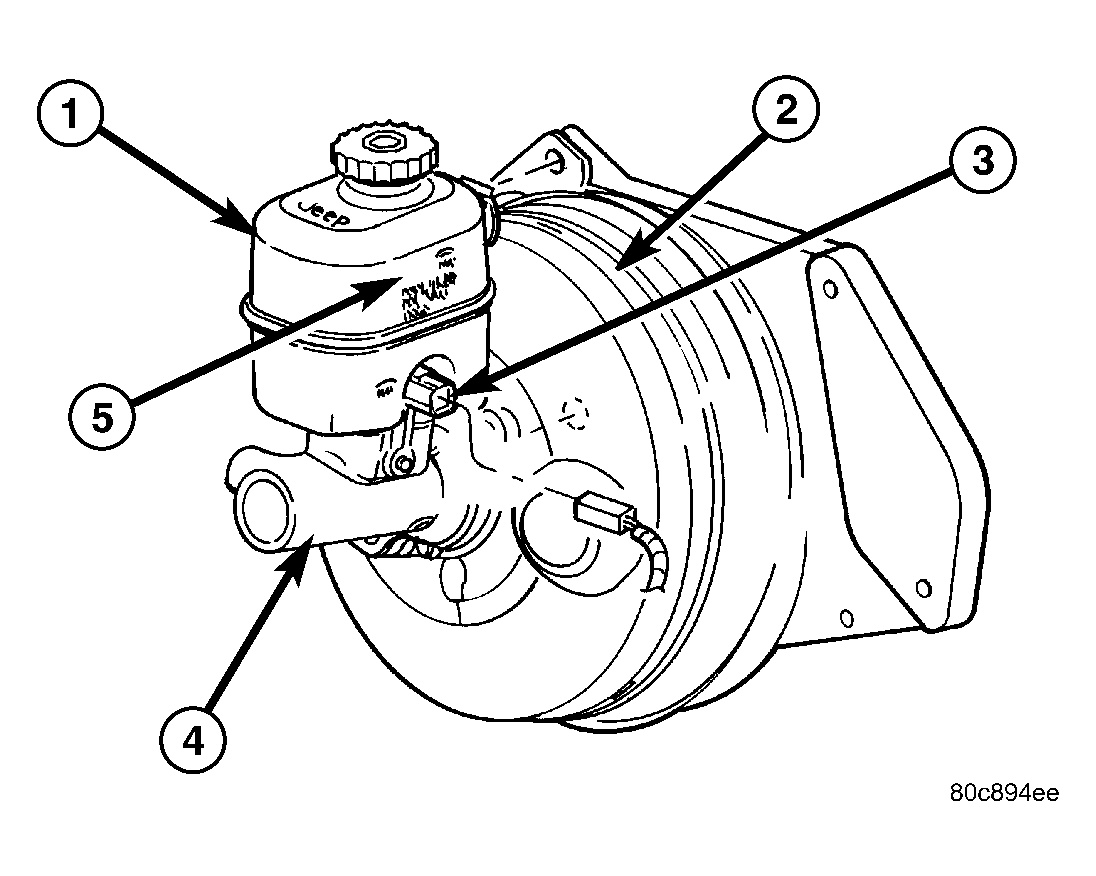

| 1 - FLUID RESERVOIR |
| 2 - BOOSTER |
| 3 - FLUID LEVEL SWITCH |
| 4 - MASTER CYLINDER |
| 5 - FLUID LEVEL MARKS |
NOTE:
If master cylinder is replaced, bleed cylinder before installation.
- Clean cylinder mounting surface of brake booster (2).
- Install master cylinder (4) onto brake booster studs.
- Install mounting nuts and tighten to 25 N.m (220 in. lbs.).
- Connect the brake lines to the master cylinder and tighten to 20 N.m (180 in. lbs.).
- Connect fluid level electrical connector (3) to the reservoir (1). See Fig 1.
- Fill and bleed base brake system, (Refer to BRAKES - STANDARD PROCEDURE) .
