Disc Brake Calipers: Removal: Rear

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

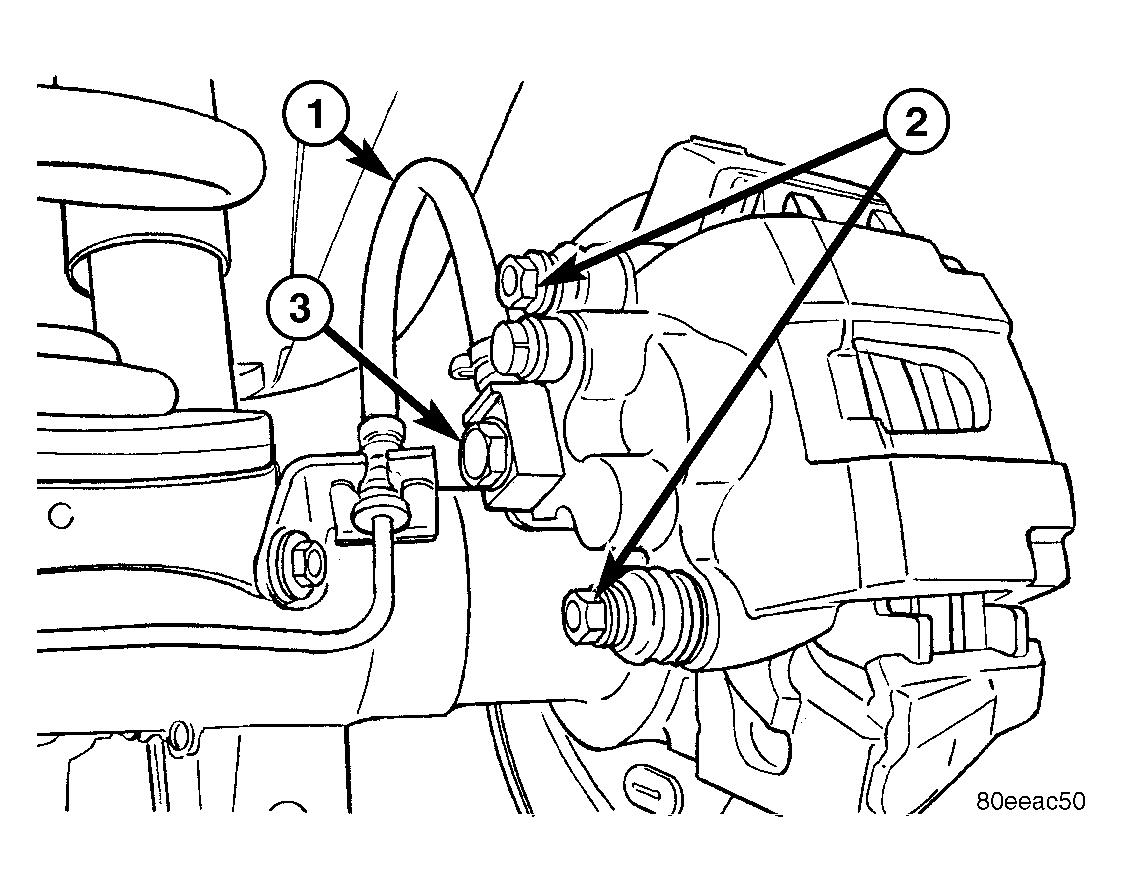

Fig 1: Caliper Mounting
GC0025481Courtesy of DAIMLERCHRYSLER CORP.
1 - BRAKE HOSE
2 - CALIPER MOUNTING BOLTS
3 - BANJO BOLT
  1. Install prop rod on the brake pedal to keep pressure on the brake system.
  2. Raise and support vehicle.
  3. Remove the wheel and tire assembly.
  4. Remove the brake hose banjo bolt (3) if replacing caliper.
  5. Remove the caliper mounting slide pin bolts (2). See Fig 1.
  6. Remove the caliper from vehicle.
