Brakes - Base: Cables: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

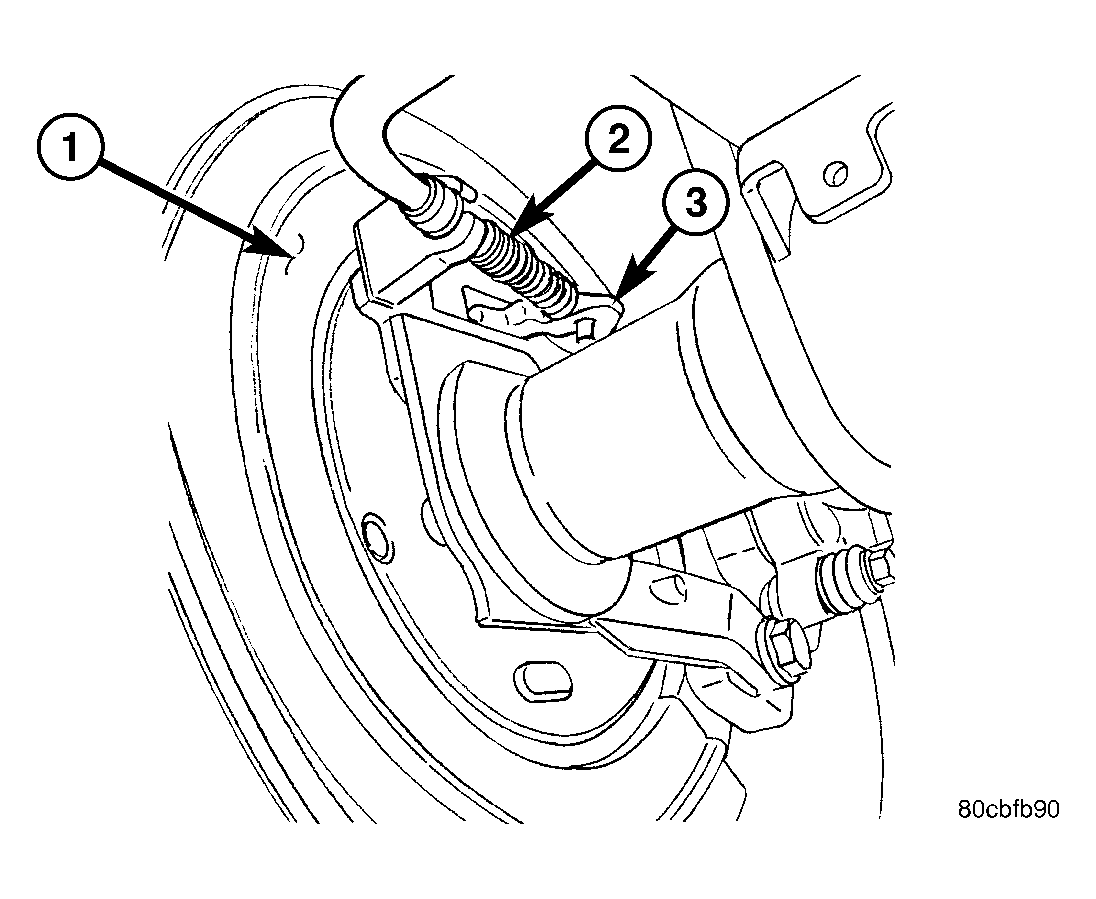

Fig 1: Parking Brake Cable

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUPPORT PLATE

2 - CABLE

3 - ACTUATOR LEVER

Install the cables(2) into the axle bracket. See Fig 1.
Reconnect the cable to the park brake lever (3). See Fig 1.

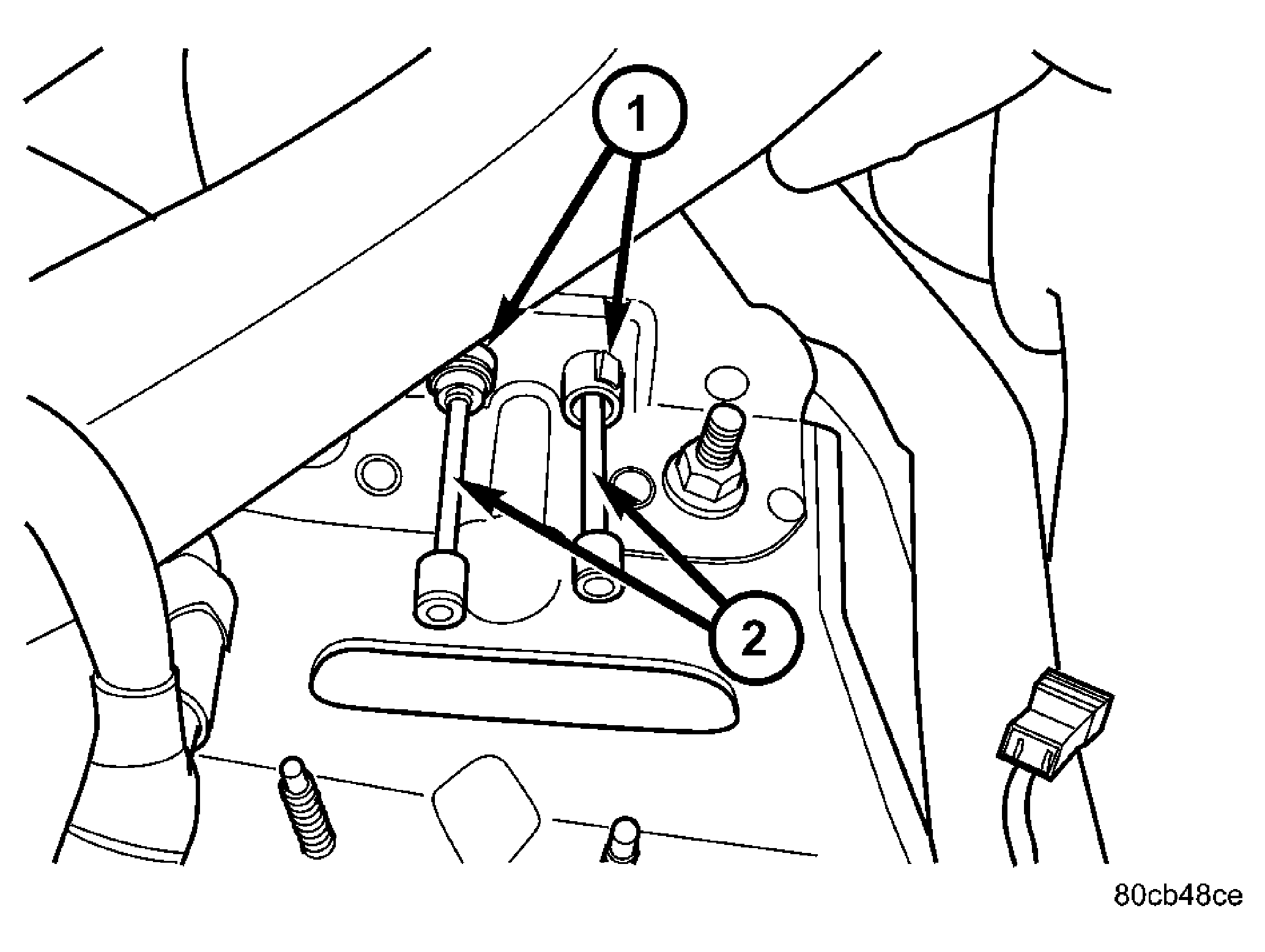

Fig 2: Cable Front Mount
Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINER CLIPS

2 - CABLES
Push the cables (2) thru the floor and seat the grommets (1). See Fig 2.

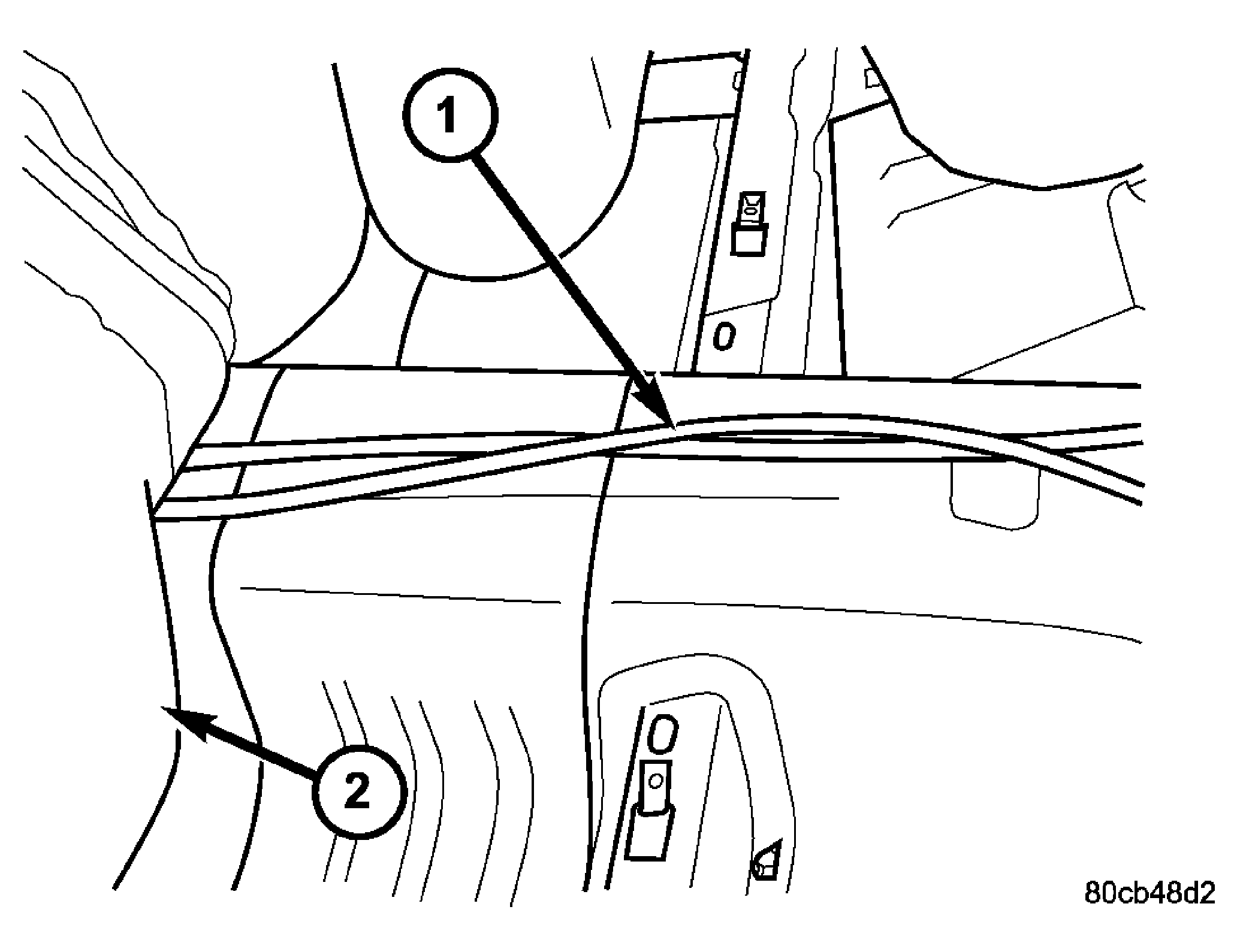

Fig 3: Mounting Brackets
Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE CABLES

2 - CARPET
Reconnect the two cables (1) to the front mount.
Lay the carpet (2) back down in the rear. See Fig 3.

Install the rear seat (Refer to BODY/SEATS/SEAT - INSTALLATION) .

Fig 4: Lock Out Cables

Courtesy of DAIMLERCHRYSLER CORP.

1 - PARKING BRAKE HANDLE

2 - PUNCH

3 - CABLE GUIDE

4 - CABLE

Remove the lock out device (2) on the lever (1). See Fig 4.
Adjust the park brake shoes (Refer to BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS) .
Test the parking brake.
