Front Brake Caliper Hose

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

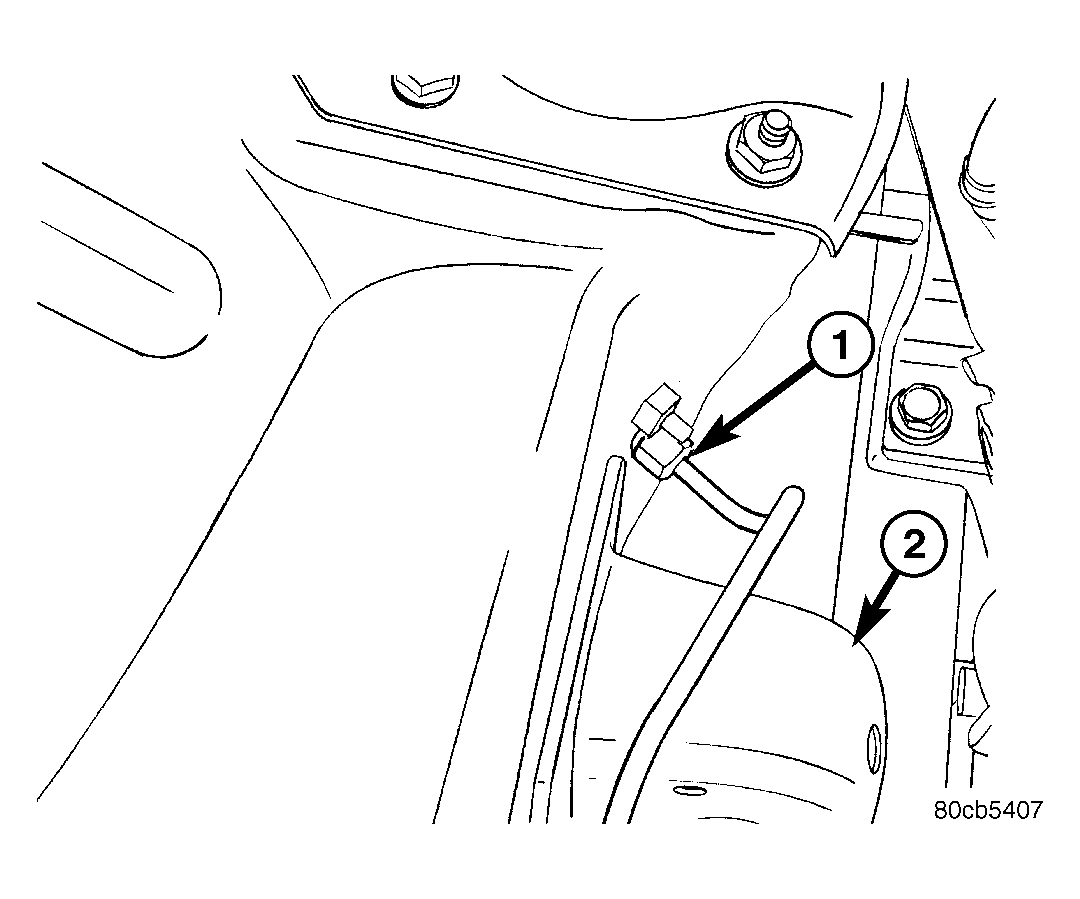

Fig 1: Inner Fender Brake Line
GC0025460Courtesy of DAIMLERCHRYSLER CORP.
1 - BRAKE LINE
2 - UPPER CONTROL ARM MOUNT
  1. Install prop rod on the brake pedal to keep pressure on the brake system.
  2. Remove the brake line (1) from the brake hose inside the engine compartment by the front control arm bolt (2). See Fig 1.
  3. Raise and support vehicle.

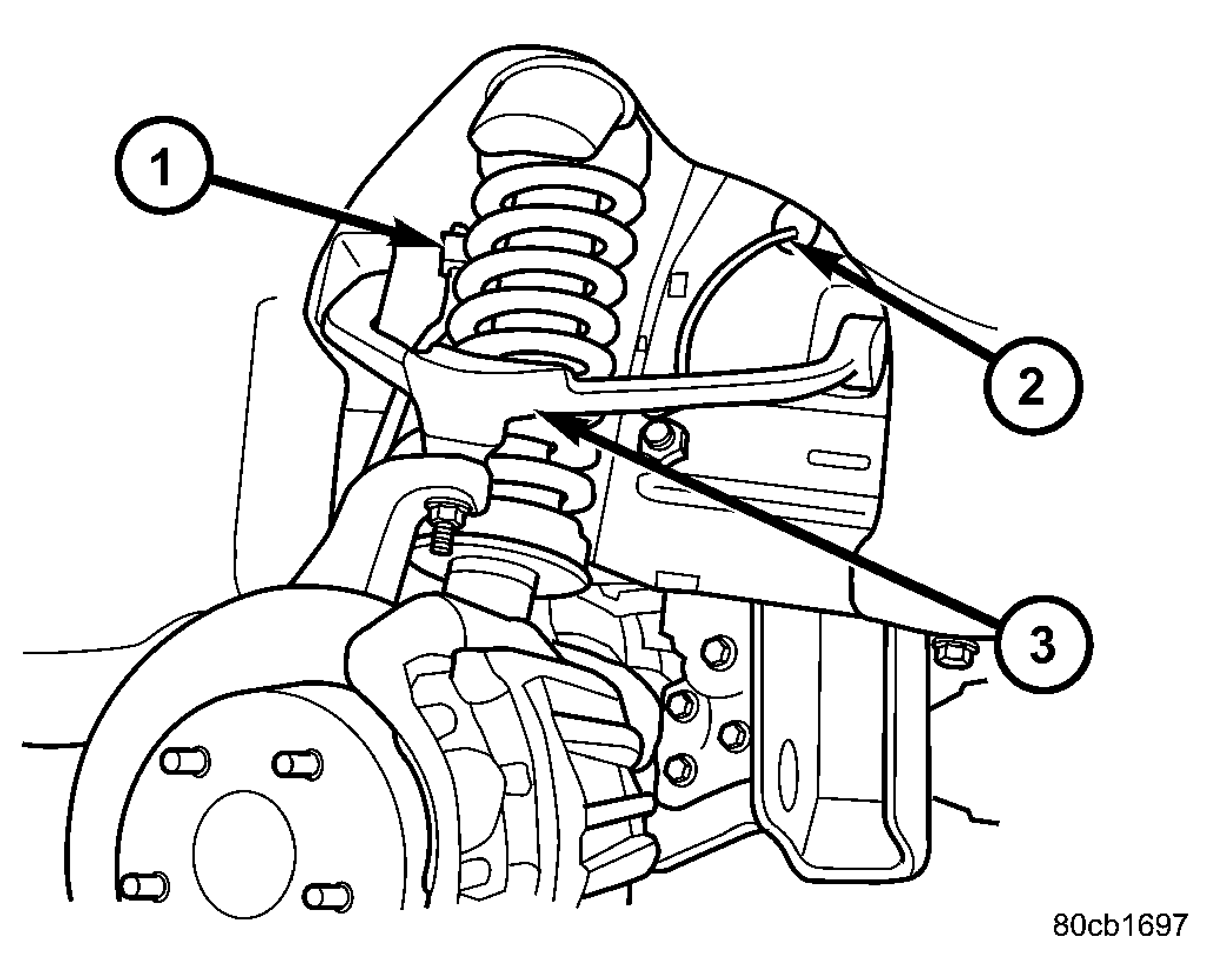

    Fig 2: Front Brake Hose
    GC0025459Courtesy of DAIMLERCHRYSLER CORP.
    1 - TOP OF FRONT BRAKE HOSE
    2 - WHEEL SPEED SENSOR WIRE
    3 - UPPER CONTROL ARM
  4. Remove the brake hose banjo bolt at the caliper.
  5. Remove the mounting bolt for the top of the brake hose (1) at the vehicle. See Fig 2.
  6. Remove the hose.
