Installation - Rear Brake Hose

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hose.

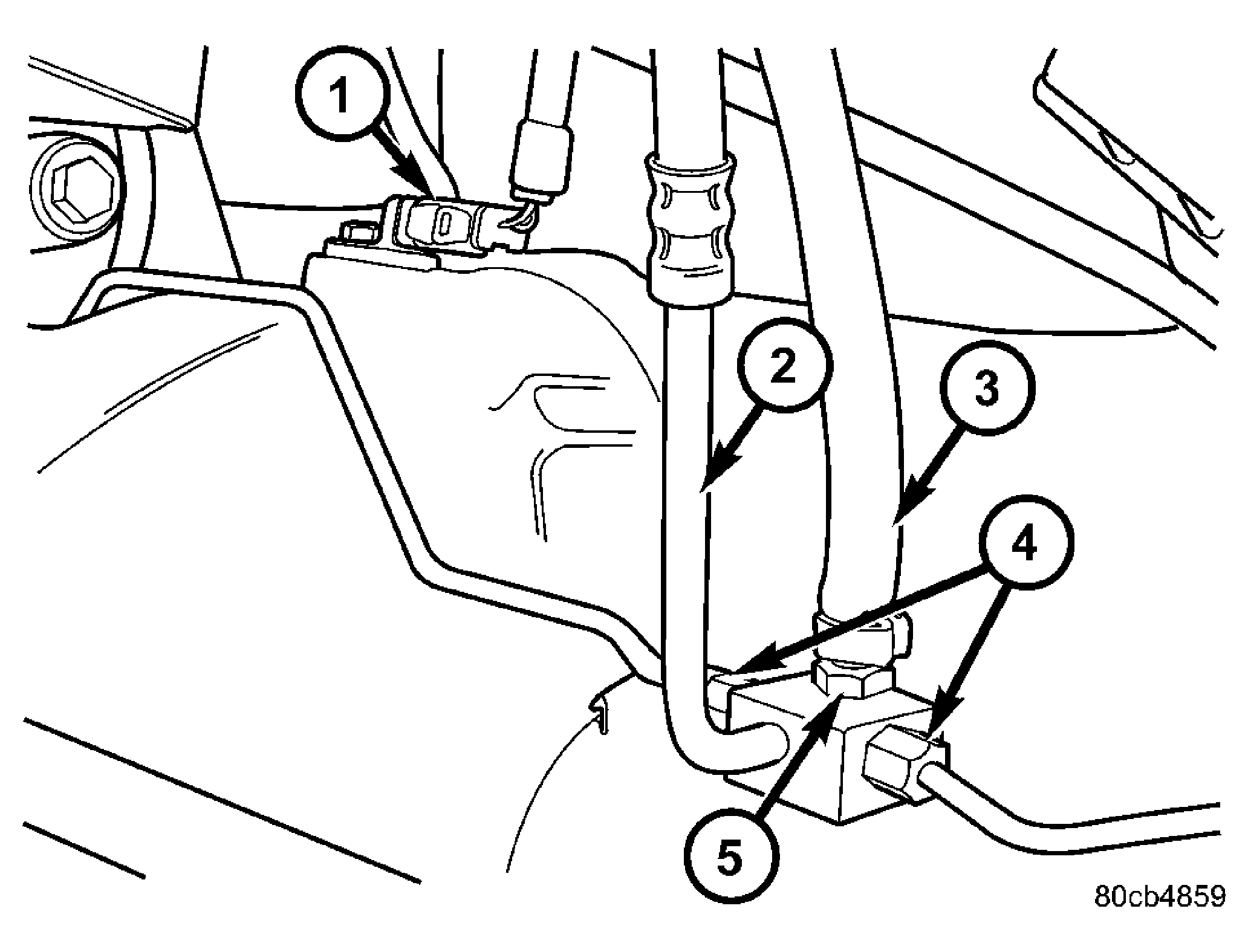

  2. Install the mounting bolt for the brake hose at the axle. See Figure.
  3. Install the two brake lines at the bottom of the hose located at the axle. See Figure.
  4. Install the vent tube. See Figure.

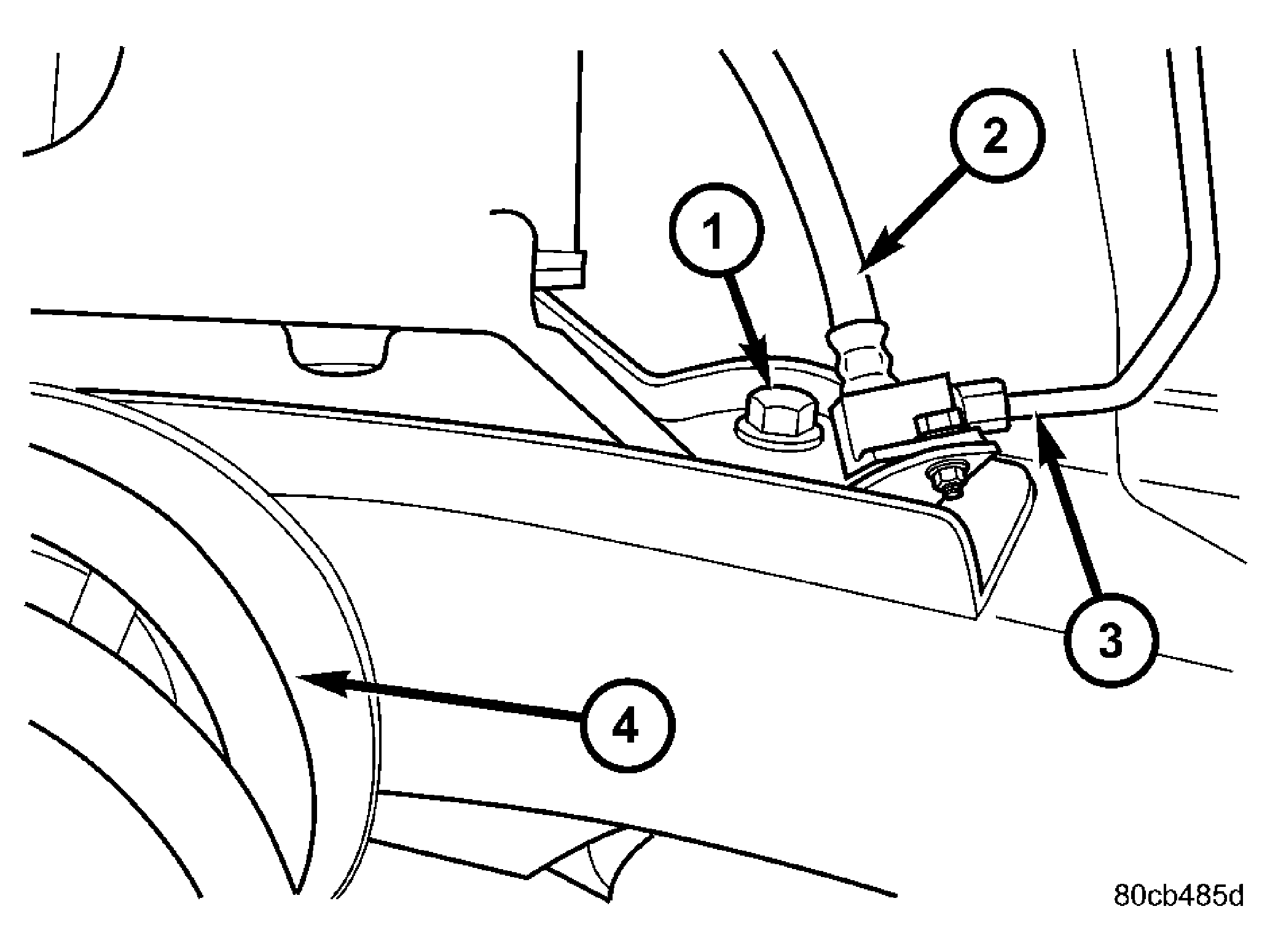

  5. Install the brake hose mounting bolt at the top of the hose located at the body. See Figure.
  6. Install the brake line to the hose at the body. See Figure.
  7. Lower the vehicle and remove the support.
  8. Remove the prop rod.
  9. Bleed the brake system (Refer to BRAKES - STANDARD PROCEDURE) .
