Front Brake Caliper Hose
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

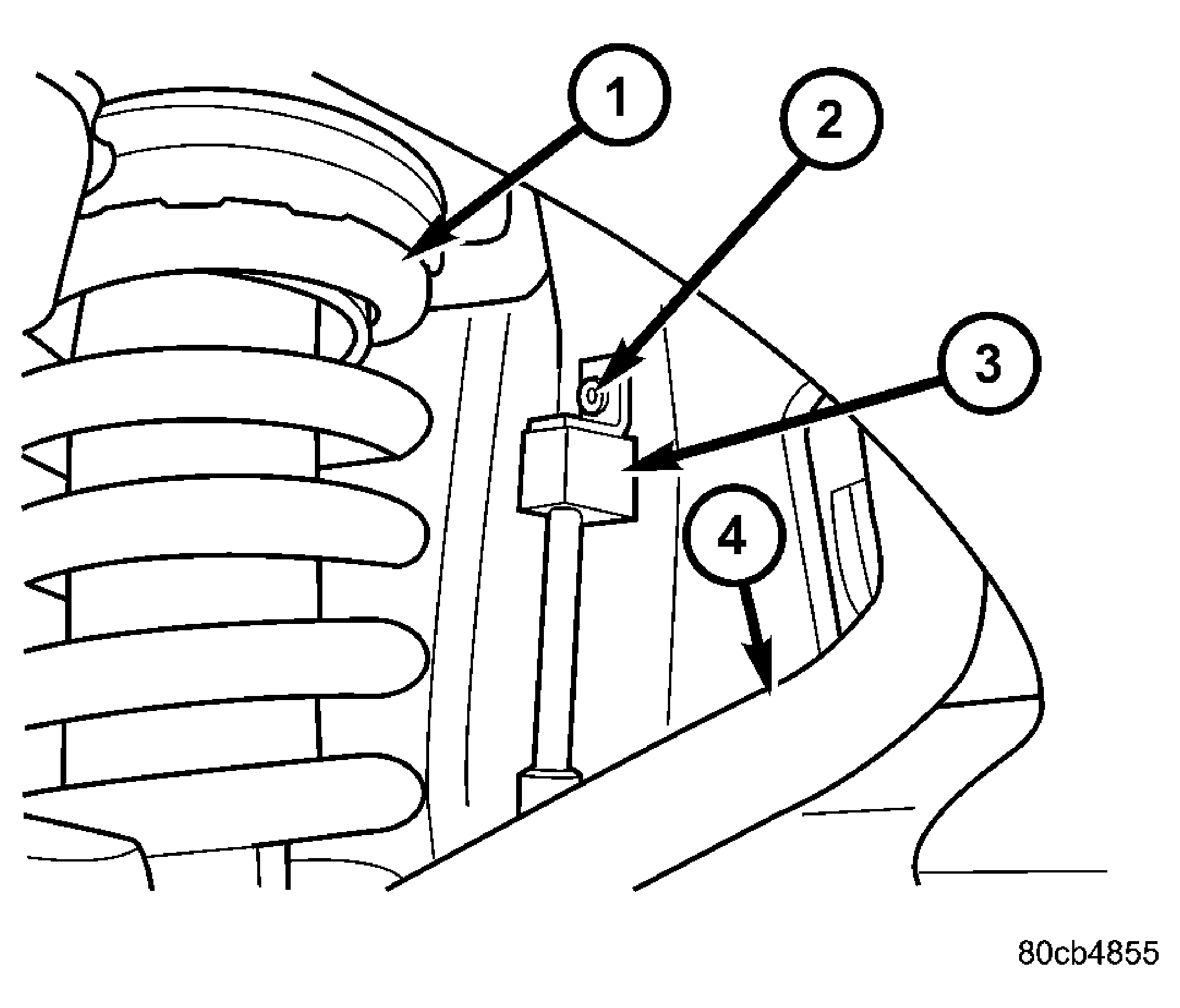

| 1 - COIL SPRING |
| 2 - MOUNTING BOLT |
| 3 - BRAKE HOSE |
| 4 - FRONT OF THE UPPER CONTROL ARM |
- Install the hose (3).
- Install the mounting bolt (2) for the top of the brake hose (3) at the vehicle. See Fig 1.
- Install the brake hose banjo bolt at the caliper.
- Lower the vehicle and remove the support.
- Install the brake line to the brake hose inside the engine compartment by the front control arm bolt (4).
- Remove the prop rod from the brake pedal.
- Bleed the brake system (Refer to BRAKES - STANDARD PROCEDURE) .
