Brake Junction Block: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

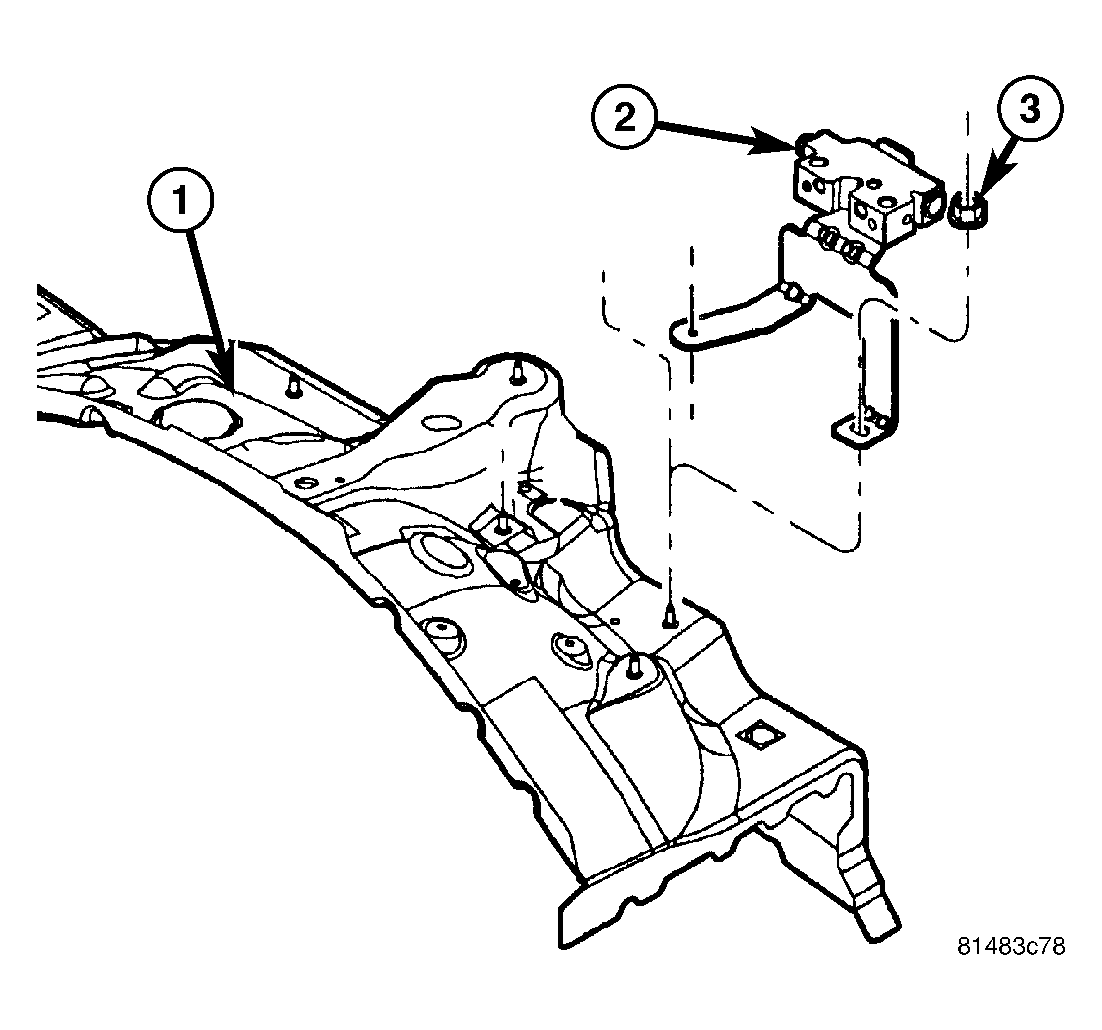

Fig 1: Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

1 - INNER FENDER

2 - JUNCTION BLOCK

3 - MOUNTING NUT

Install prop rod on the brake pedal to keep pressure on the brake system.
Remove the brake lines from the junction block (2).
Remove mounting nuts (3) and remove the junction block (3). See Fig 1.
