A/C Condenser: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

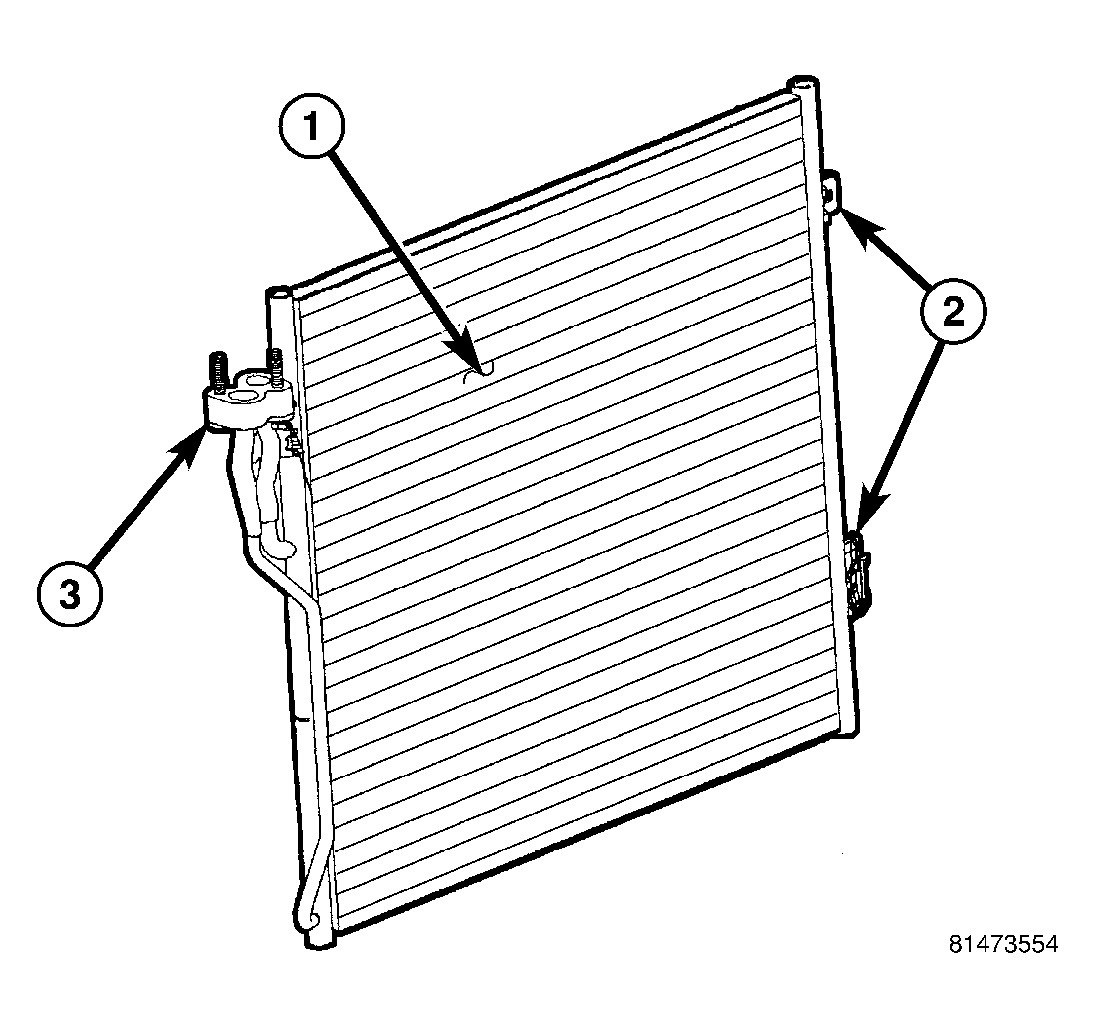

The A/C condenser is located in the front of the engine compartment behind the grille. See Fig 1. The A/C condenser is a heat exchanger that allows the high-pressure refrigerant gas being discharged by the A/C compressor to give up its heat to the air passing over the condenser fins, which causes the refrigerant to cool and change to a liquid state.
The A/C condenser is equipped with mounting provisions and a tapping block for the A/C refrigerant lines.
| 1 - A/C CONDENSER |
| 2 - MOUNTING BRACKETS |
| 3 - REFRIGERANT LINE TAPPING BLOCK |
