Panel-Air Door
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.
WARNING:
Refer to the applicable warnings and cautions for this system before performing the following operation (Refer to HEATING & AIR CONDITIONING/PLUMBING - WARNINGS) and (Refer to HEATING & AIR CONDITIONING/PLUMBING - CAUTIONS) . Failure to follow the warnings and cautions could result in possible personal injury or death.
- Remove the HVAC housing (Refer to HEATING & AIR CONDITIONING/DISTRIBUTION/HVAC HOUSING - REMOVAL) .
- Disassemble the HVAC housing (Refer to HEATING & AIR CONDITIONING/DISTRIBUTION/HVAC HOUSING - DISASSEMBLY) .

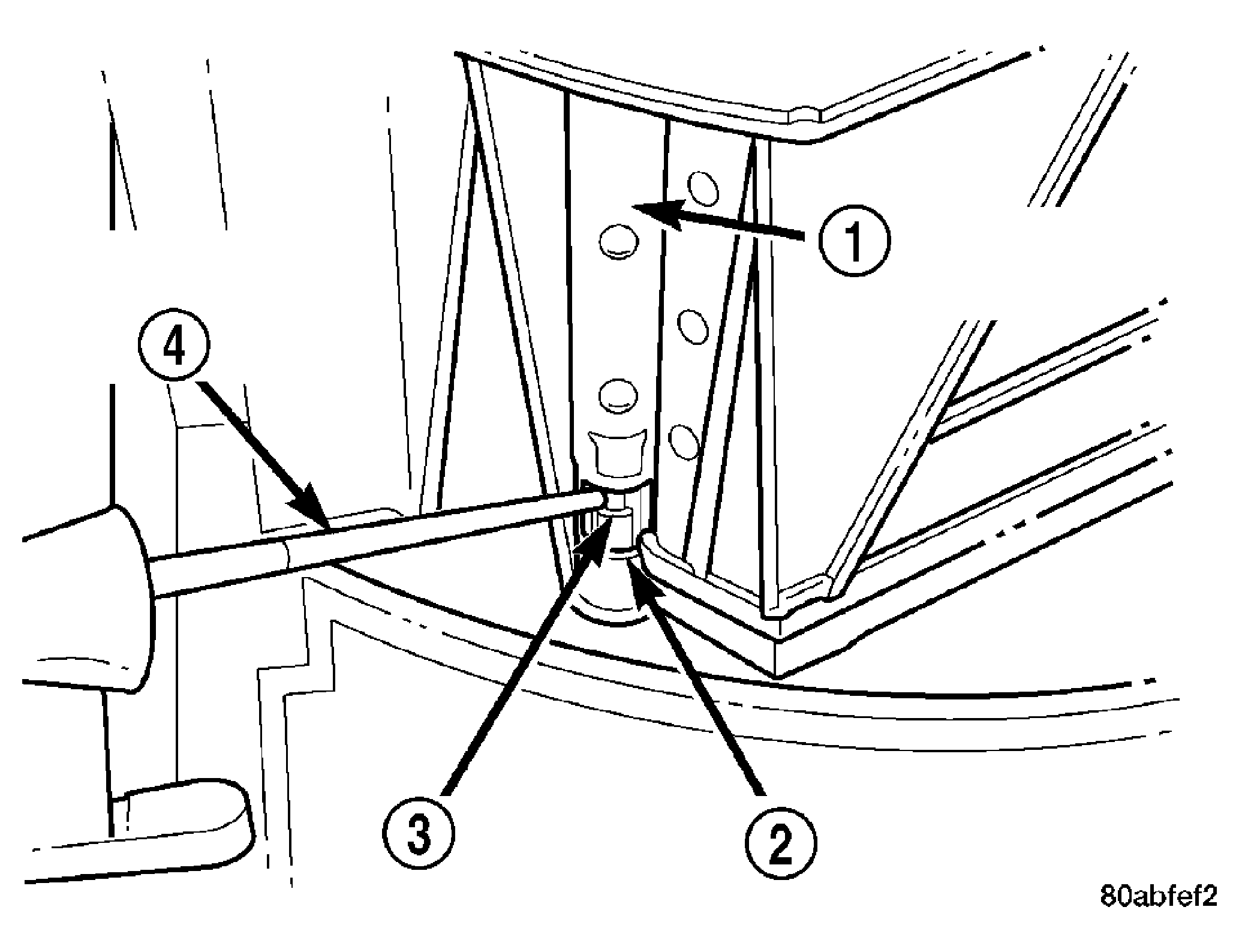

- Insert a screwdriver into the latch hole of the panel door pivot shaft and release the latch of the panel door lever. Pull the lever out of the pivot shaft from the outside of the upper half of the HVAC housing. See Fig 1.
- Remove the panel-air door from the HVAC housing.
| 1 - DOOR PIVOT SHAFT |
| 2 - LATCH HOLE |
| 3 - CRANK ARM LATCH |
| 4 - FLAT BLADE PRY TOOL |
