Vacuum Check Valve: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the HVAC vacuum supply line connector from the vacuum check valve located on the passenger side of the vehicle, behind the glove box. See Fig 1.
NOTE: Note the orientation of the check valve in the vacuum supply line for correct reinstallation.
Disconnect the vacuum check valve from the vacuum actuator supply line connector.

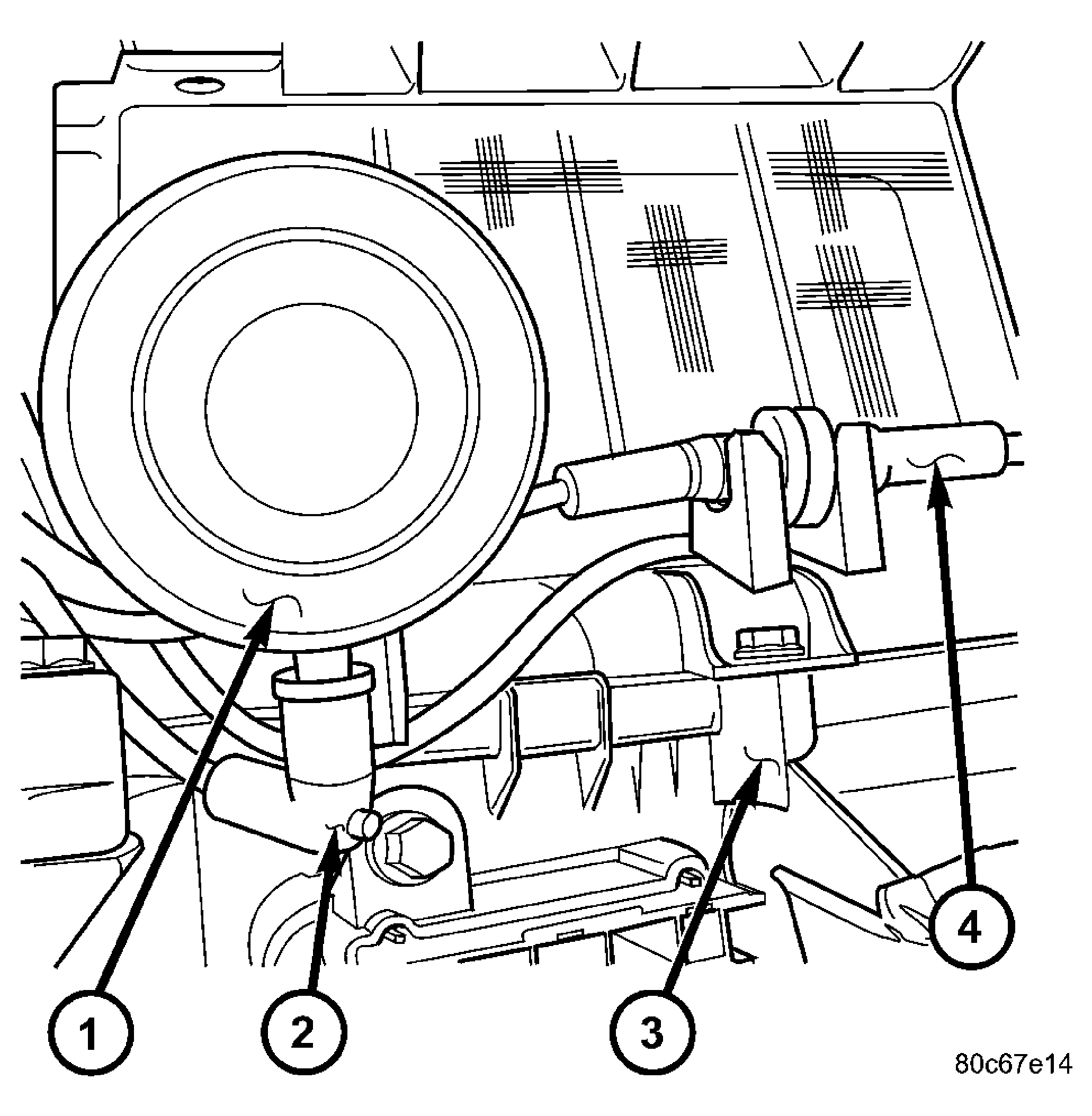

Fig 1: Vacuum Check Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - RECIRCULATION DOOR ACTUATOR

2 - VACUUM LINE TO VACUUM RESERVOIR

3 - HVAC HOUSING

4 - VACUUM CHECK VALVE
