RECIRCULATION Door Actuator: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in an accidental airbag deployment and possible personal injury or death.

Disconnect and isolate the negative battery cable.
Remove the instrument panel from the vehicle (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL) .

Disconnect the vacuum harness connector from the recirculation door actuator. See Fig 1.

Fig 1: HVAC Housing Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - BLOWER MOTOR

2 - RECIRCULATION DOOR LINKAGE

3 - RECIRCULATION DOOR ACTUATOR

4 - HOUSING SCREW

5 - BLEND DOOR ACTUATOR SCREWS (3)

6 - BLEND DOOR ACTUATOR

7 - ELECTRICAL CONNECTOR

8 - HEATER CORE TABS (4) AND SCREWS (2)

9 - HEATER CORE

10 - RETAINER CLIP

11 - HEATER CORE CONNECTIONS

12 - EVAPORATOR TAPPING BLOCK

13 - HOUSING SCREWS

14 - HVAC HOUSING

Insert a trim stick C-4755 or equivalent into the latch hole on the HVAC housing actuator mount. Gently pry the actuator latch while pulling firmly outward on the actuator to remove the actuator from the mount. See Fig 2.
Rotate and tilt the actuator as required to disengage the hole on the end of the actuator link from the hooked pin on the end of the recirculation door lever and remove the actuator.

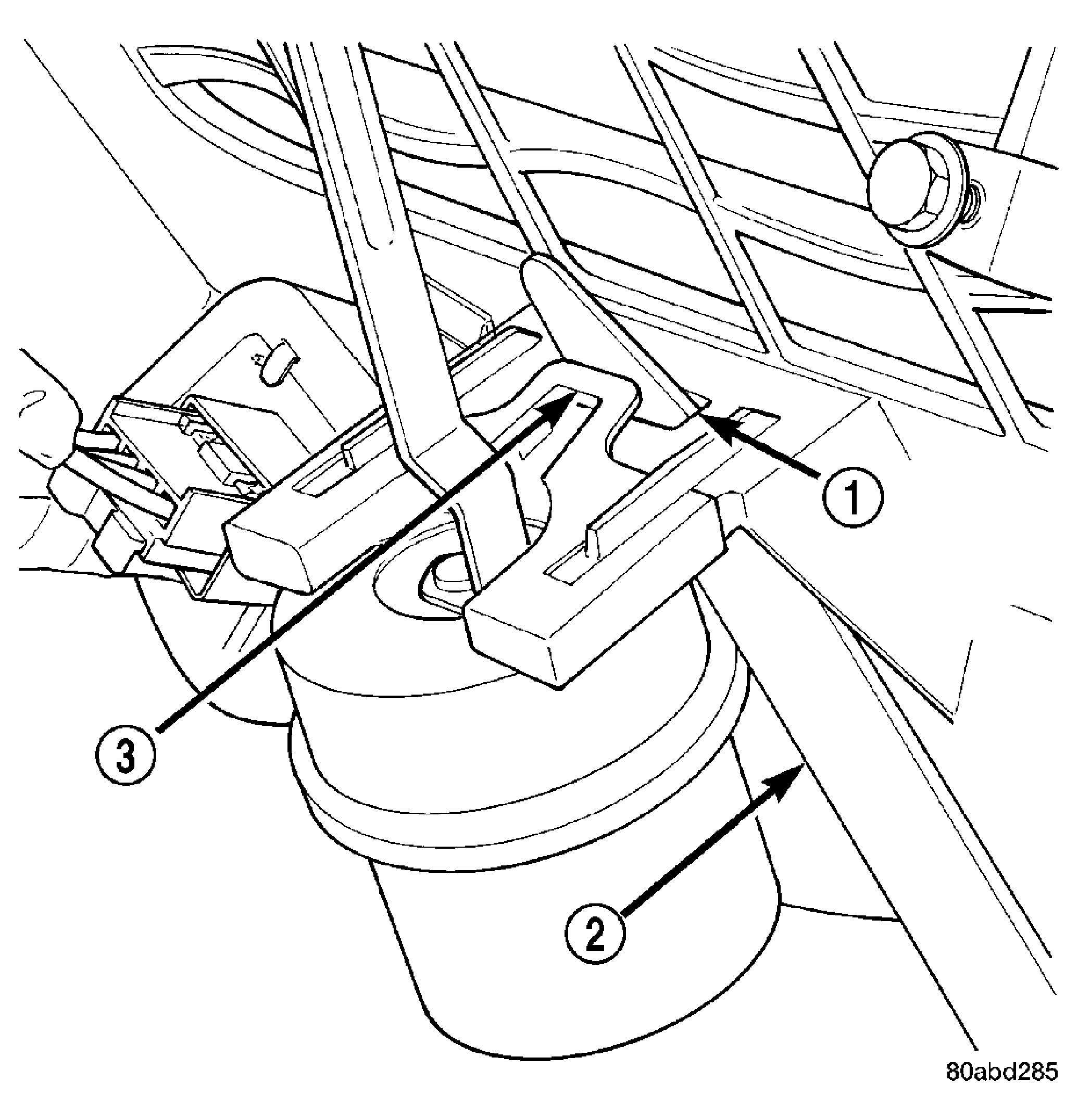

Fig 2: Recirculation Door Actuator Latch - Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - ACTUATOR MOUNT LATCH HOLE

2 - TRIM STICK

3 - ACTUATOR LATCH
