A/C Pressure Transducer: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note: It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

Disconnect and isolate the negative battery cable.
Disconnect the wire harness connector from the A/C pressure transducer.
Remove the A/C pressure transducer from the fitting on the discharge line and remove and discard the O-ring seal. See Fig 1.

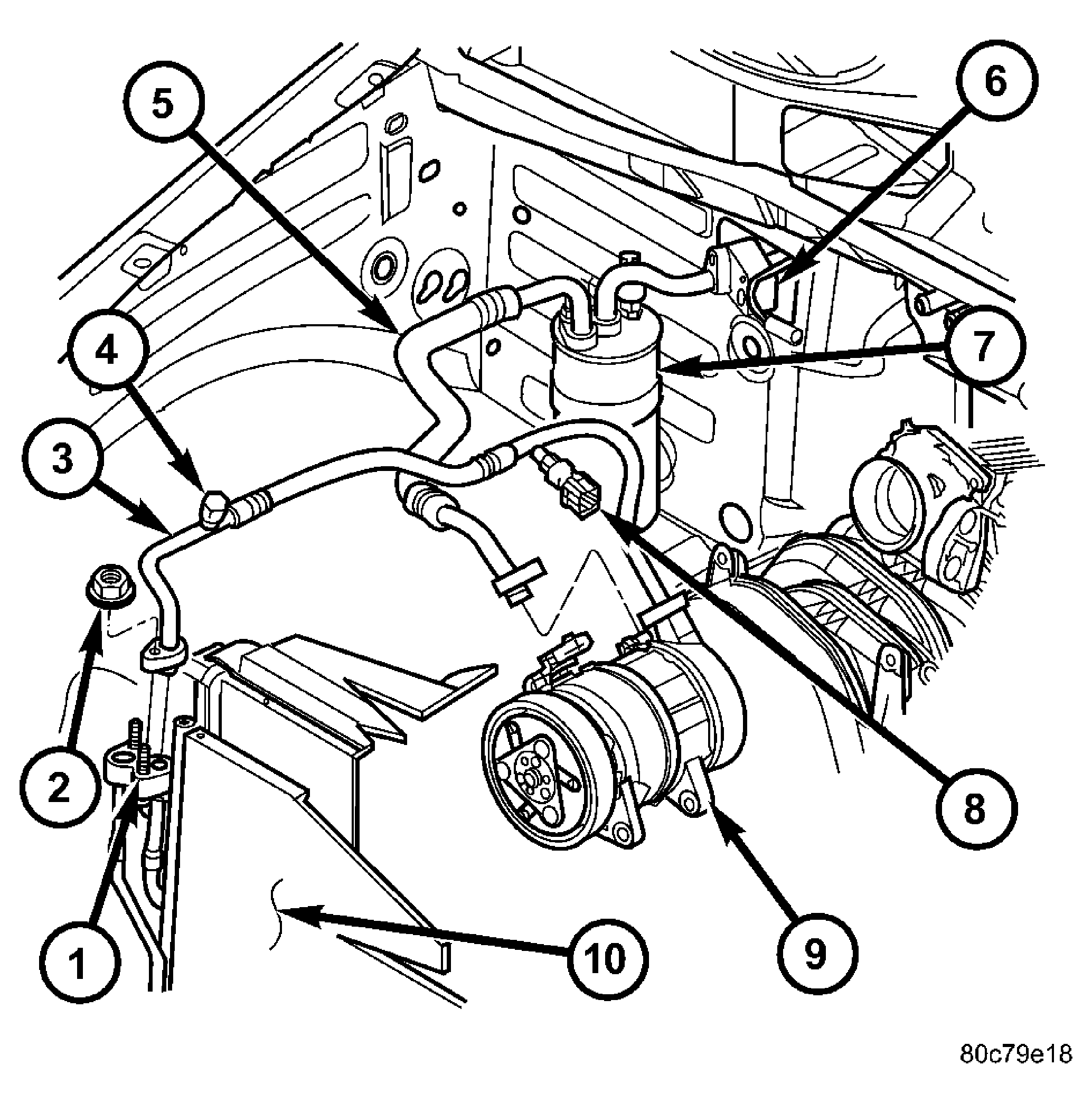

Fig 1: A/C System Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - A/C CONDENSER INLET PORT

2 - NUT

3 - A/C DISCHARGE LINE

4 - SERVICE PORT

5 - SUCTION LINE

6 - EVAPORATOR TAPPING BLOCK

7 - A/C ACCUMULATOR

8 - A/C PRESSURE TRANSDUCER

9 - A/C COMPRESSOR

10 - A/C CONDENSER
