A/C High Pressure Switch: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It is not necessary to discharge the refrigerant system to replace the A/C high pressure switch.
- Disconnect and isolate the negative battery cable.

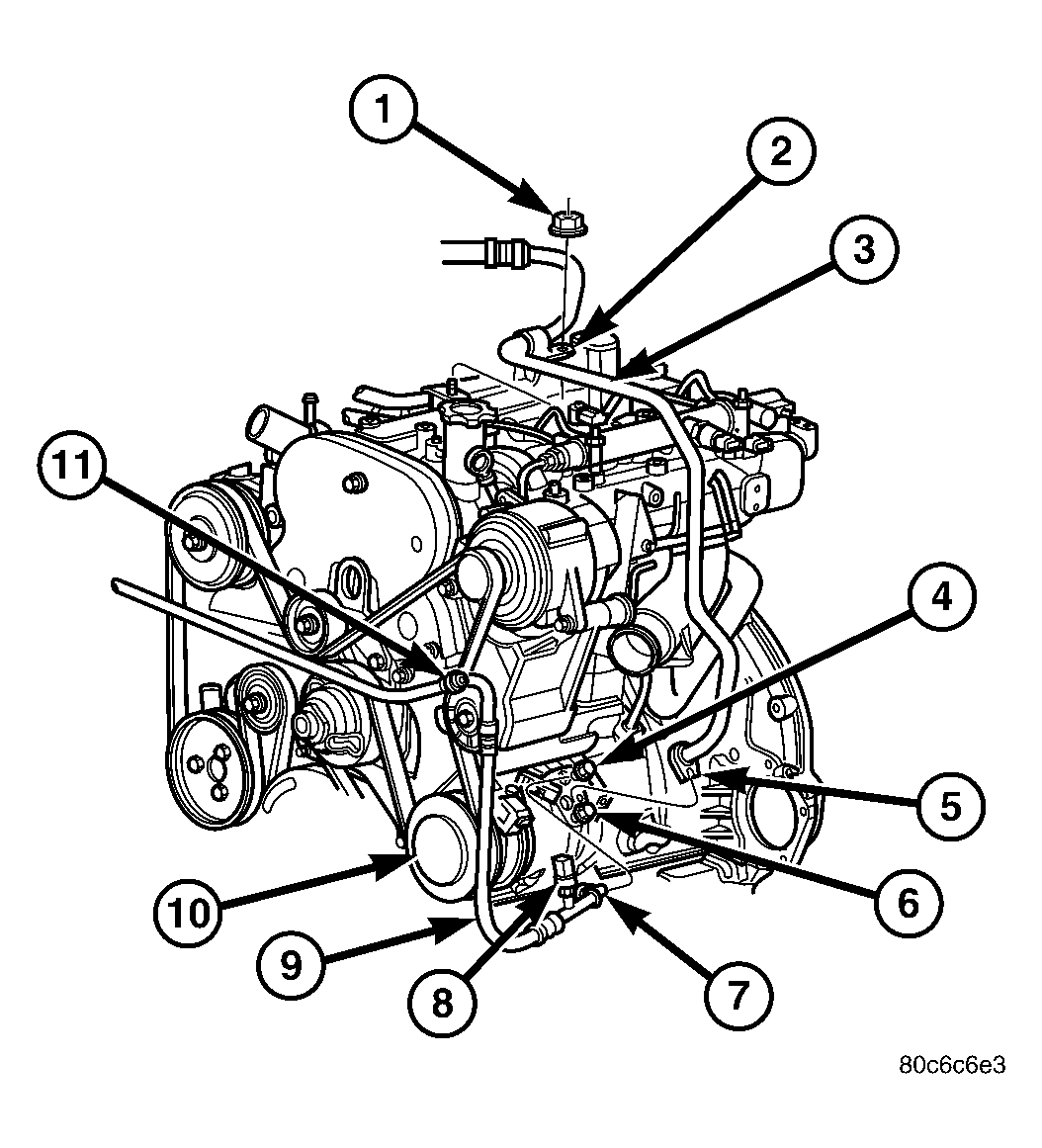

- Disconnect the wire harness connector from the A/C high pressure switch. See Fig 1.
- Remove the A/C high pressure switch from the A/C discharge line and remove and discard the O-ring seal.
| 1 - NUT |
| 2 - CLIP |
| 3 - A/C SUCTION LINE |
| 4 - SCREW |
| 5 - MOUNTING FLANGE |
| 6 - SCREW |
| 7 - MOUNTING FLANGE |
| 8 - A/C HIGH PRESSURE SWITCH |
| 9 - A/C DISCHARGE LINE |
| 10 - A/C COMPRESSOR |
| 11 - SERVICE PORT |
