Vapor Canister: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

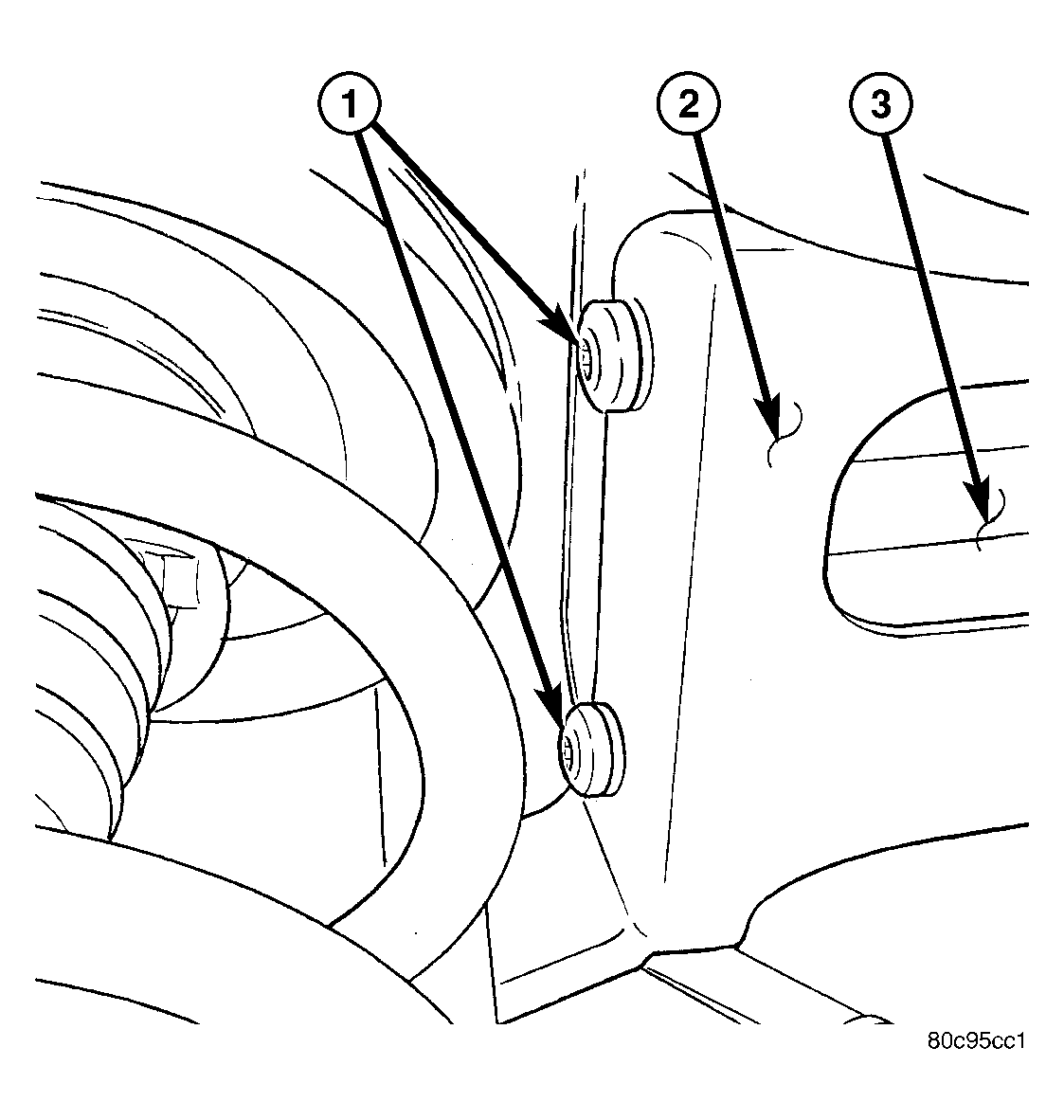

Fig 1: EVAP Canister Mounting Pins

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING PINS

2 - MOUNTING BRACKET

3 - EVAP CANISTER

Slide two canister mounting pins (1) into mounting bracket (2). See Fig 1.

Fig 2: EVAP Canister Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - EVAP CANISTER

2 - BOLT, CANISTER-TO-MOUNTING-BRACKET

3 - BOLTS, MOUNTING BRACKET-TO-BODY

4 - MOUNTING BRACKET

5 - LEFT/REAR SPRING PERCH

Install canister-to-mounting bracket bolt (2). See Fig 2.
Position canister and bracket assembly to body.
Install two mounting bracket bolts (3). See Fig 2. Tighten to 47 N.m (35 ft. lbs.) torque.
Carefully install vapor/vacuum lines to EVAP canister The vapor/vacuum lines and hoses must be firmly connected. Also check the vapor/vacuum lines at the NVLD pump, filter and EVAP canister purge solenoid for damage or leaks. If a leak is present, a Diagnostic Trouble Code (DTC) may be set.
Lower vehicle.
