PCV Valve: Description: 2.4L

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The 2.4L 4-cylinder engine is equipped with a closed crankcase ventilation system and a Positive Crankcase Ventilation (PCV) valve.

This system consists of:

a PCV valve attached to the left/front side of the valve cover. See Fig 1. It is secured with 1 bolt. An o-ring is used to seal valve to valve cover. See Fig 2.
the air cleaner housing
tubes and hoses to connect the system components.

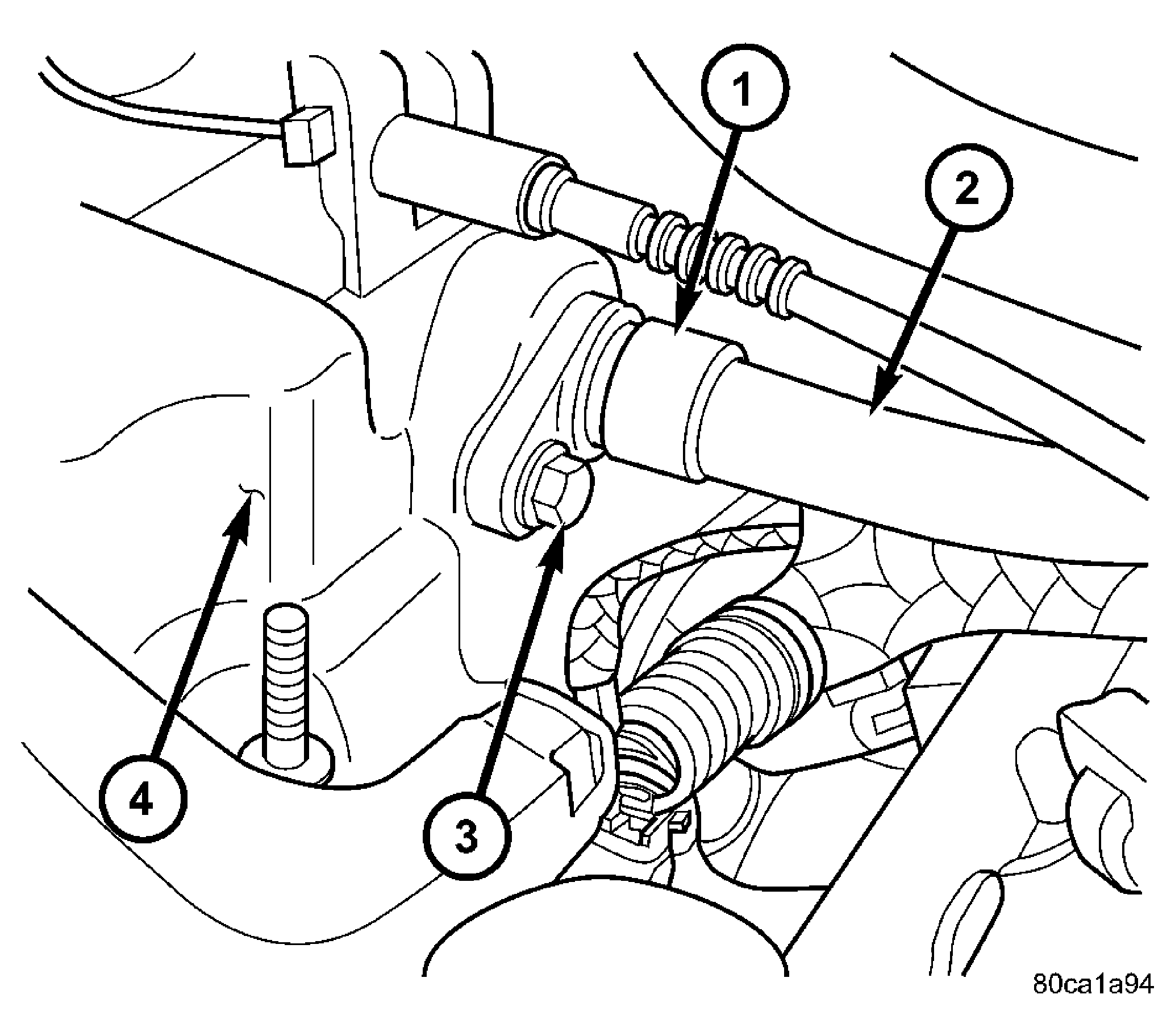

Fig 1: PCV Valve Location - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

2 - HOSE

3 - MOUNTING BOLT

4 - VALVE COVER (LEFT SIDE)

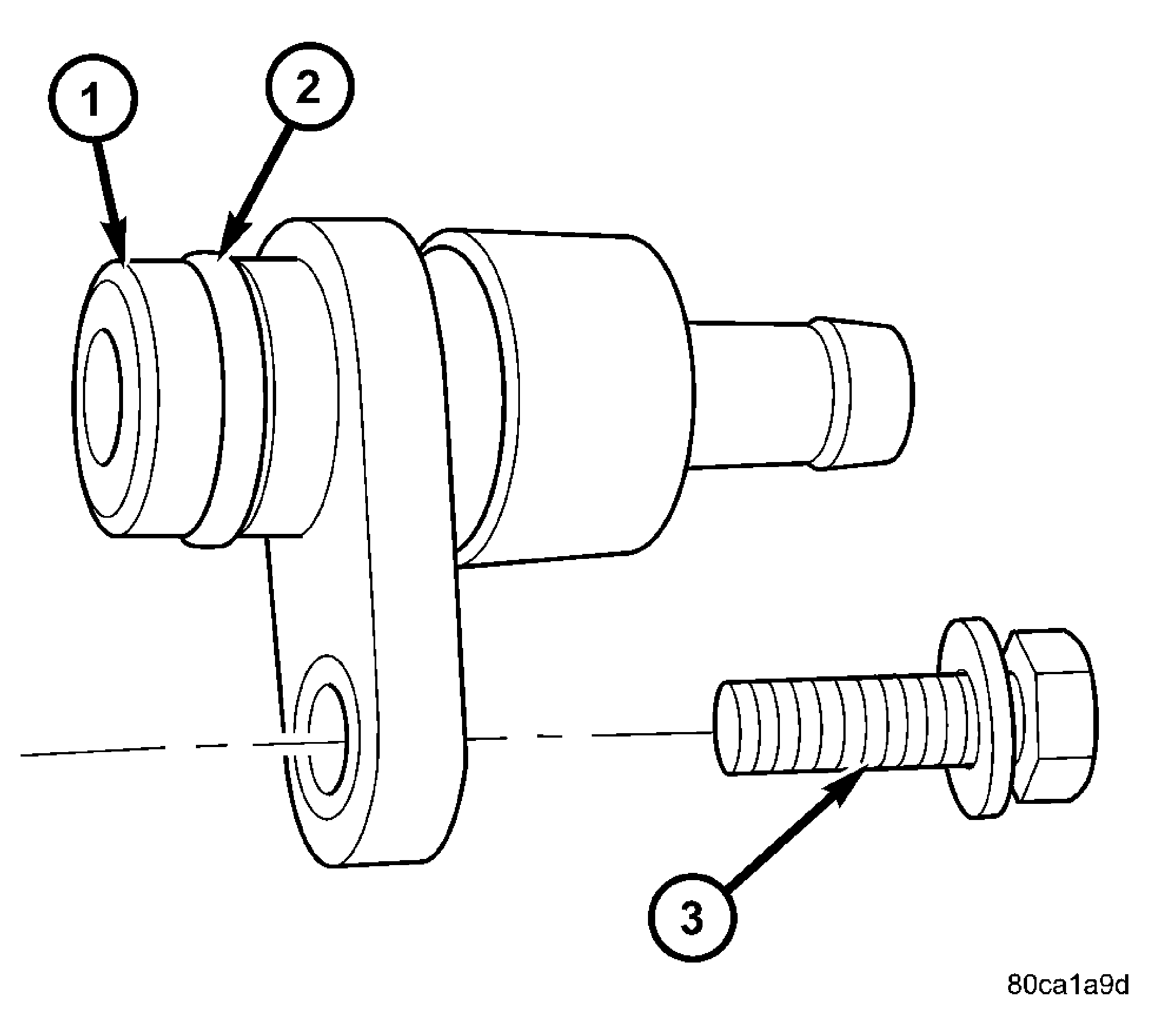

Fig 2: PCV Valve And O-Ring - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

2 - O-RING

3 - MOUNTING BOLT
