EVAP/Purge Solenoid: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The duty cycle EVAP canister purge solenoid (DCP) is located in the engine compartment. See Fig 1. It is attached to a bracket located between the battery and the Power Distribution Center (PDC). The EVAP system test port is located near the solenoid. See Fig 1.

Disconnect electrical wiring connector at solenoid.
Disconnect vacuum harness at solenoid.
Remove solenoid and its support bracket (pull straight up).

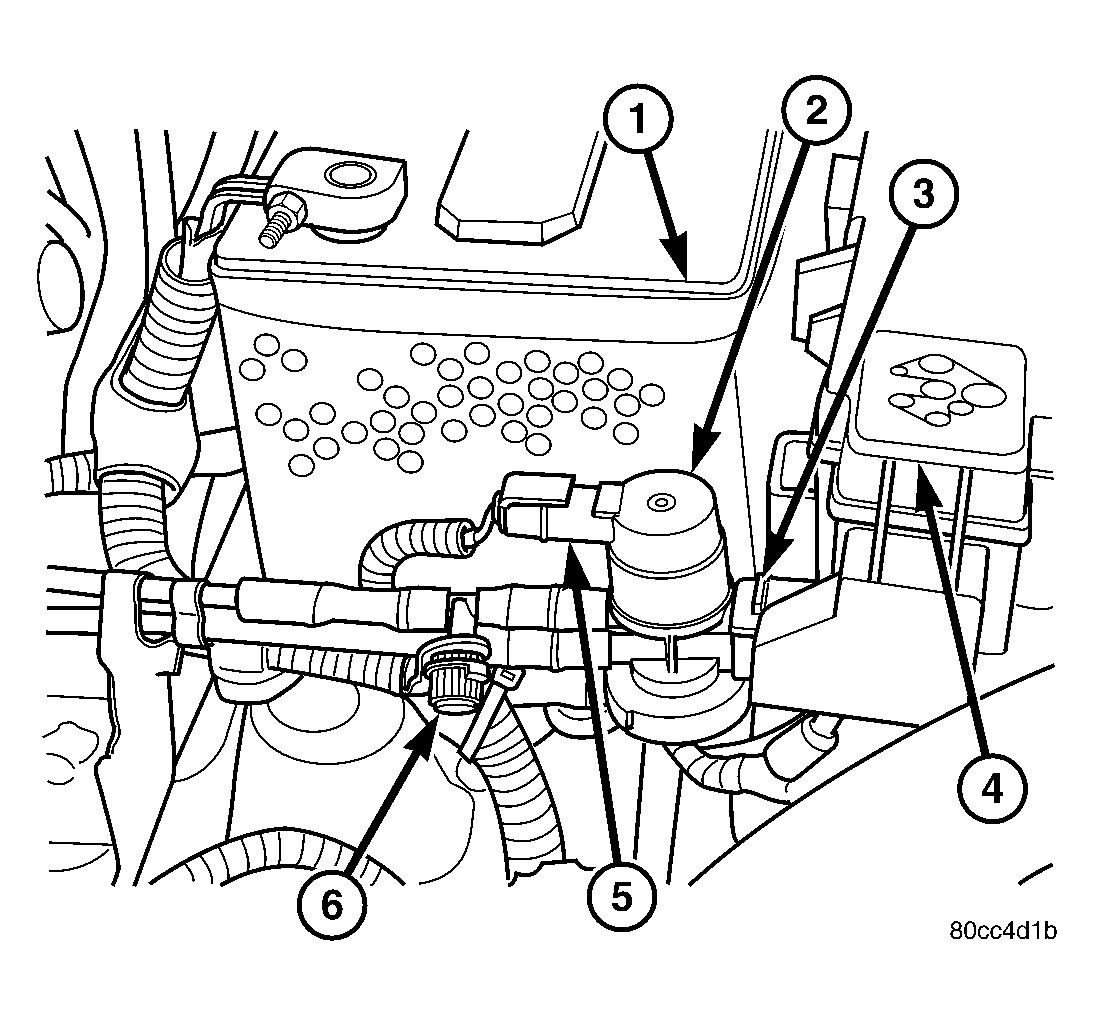

Fig 1: EVAP / Purge Solenoid Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY

2 - EVAP/PURGE SOLENOID LOCATION

3 - MOUNTING BRACKET

4 - POWER DISTRIBUTION CENTER (PDC)

5 - SOLENOID ELECTRICAL CONNECTOR

6 - EVAP SYSTEM TEST PORT
