Water Pump: Removal: 3.7L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
The water pump on 3.7L engines is bolted directly to the engine timing chain case cover.
- Disconnect negative battery cable from battery.
- Drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .
- Remove fan/viscous fan drive assembly from water pump. See Fig 1. (Refer to REMOVAL
). Do not attempt to remove fan/viscous fan drive assembly from vehicle at this time.

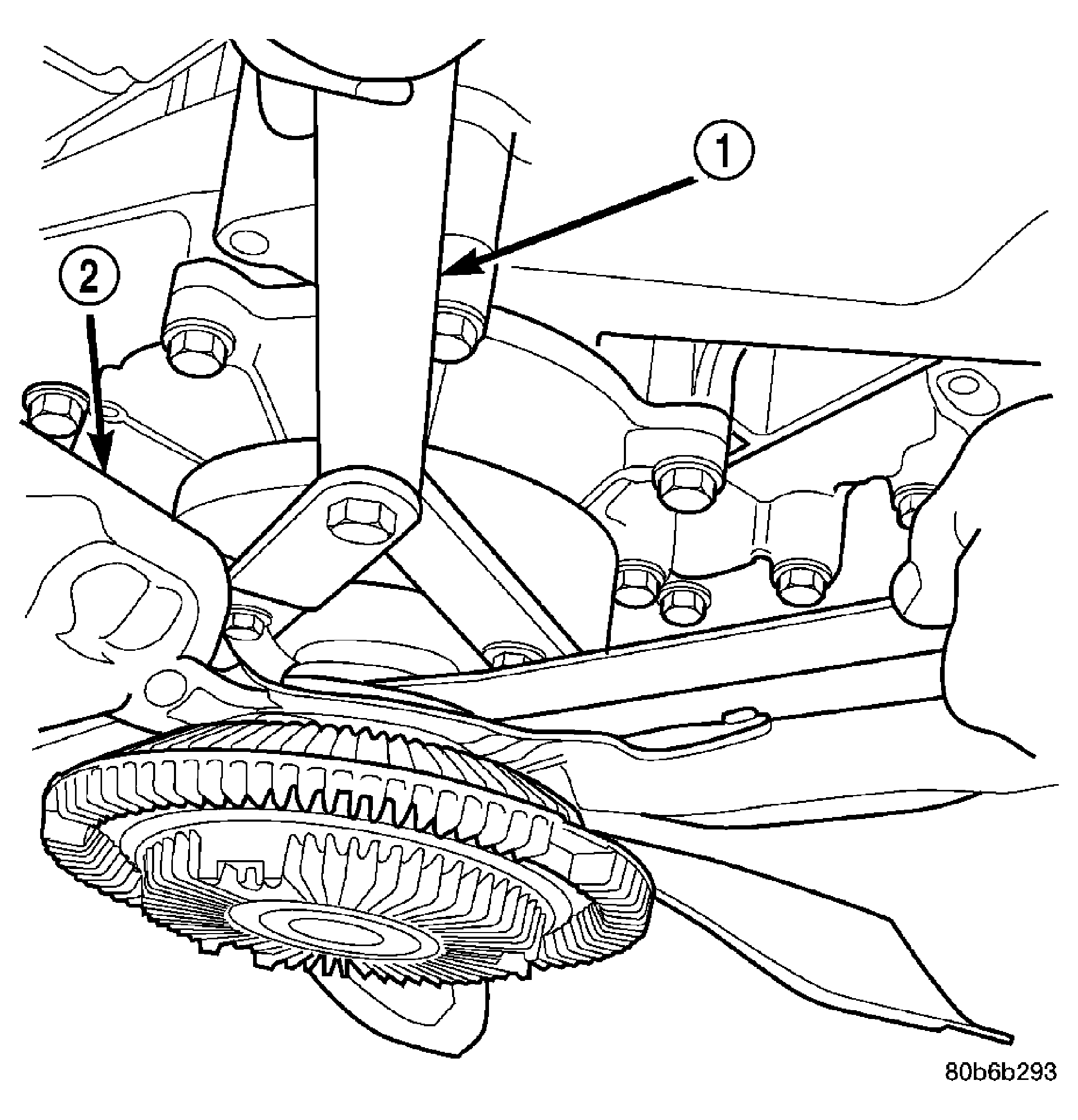

1 - SPECIAL TOOL 6958 SPANNER WRENCH WITH ADAPTER PINS 8346 2 - FAN WARNING: CONSTANT TENSION HOSE CLAMPS ARE USED ON MOST COOLING SYSTEM HOSES. WHEN REMOVING OR INSTALLING, USE ONLY TOOLS DESIGNED FOR SERVICING THIS TYPE OF CLAMP, SUCH AS SPECIAL CLAMP TOOL NUMBER 6094. ALWAYS WEAR SAFETY GLASSES WHEN SERVICING CONSTANT TENSION CLAMPS.CAUTION: A number or letter is stamped into the tongue of constant tension clamps. If replacement is necessary, use only an original equipment clamp with matching number or letter. - If water pump is being replaced, do not unbolt fan blade assembly from thermal viscous fan drive.
- Remove two fan shroud-to-radiator screws, Disconnect the coolant overflow hose.
- Remove upper fan shroud and fan blade/viscous fan drive assembly from vehicle.
- After removing fan blade/viscous fan drive assembly, do not place thermal viscous fan drive in horizontal position. If stored horizontally, silicone fluid in viscous fan drive could drain into its bearing assembly and contaminate lubricant.
- Remove accessory drive belt. See Fig 2(Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .

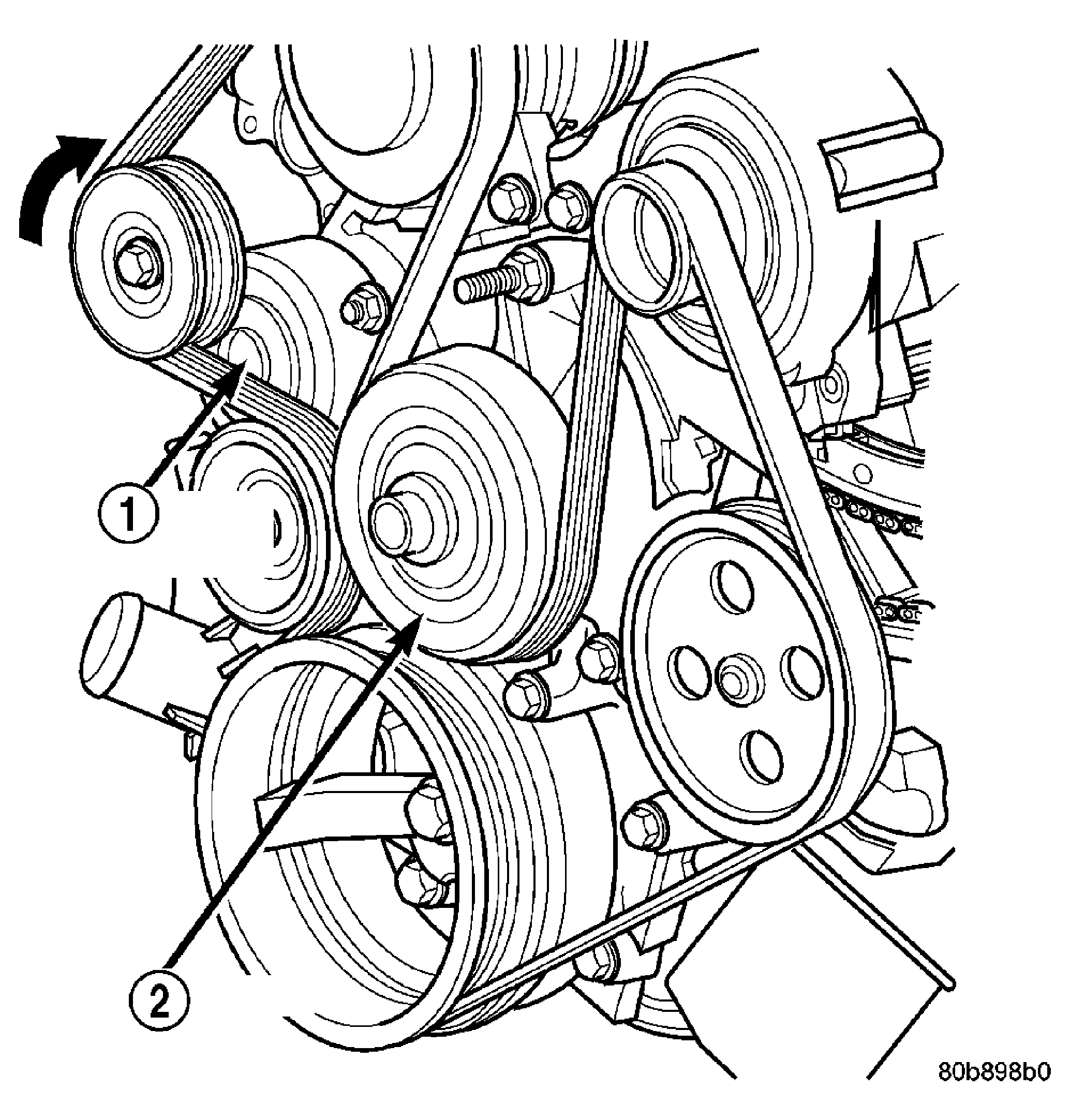

1 - AUTOMATIC TENSIONER 2 - WATER PUMP PULLEY - Remove lower radiator hose clamp and remove lower hose at water pump.
- Remove seven water pump mounting bolts and one stud bolt.CAUTION: Do not pry water pump at timing chain case/cover. The machined surfaces may be damaged resulting in leaks.
- Remove water pump and gasket. Discard gasket.
