2.8L Diesel Engine

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable.
Drain cooling system. (Refer to COOLANT ).
Remove timing belt inner and outer covers (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL).
Remove water pump retaining bolts and pump. See Fig 1.

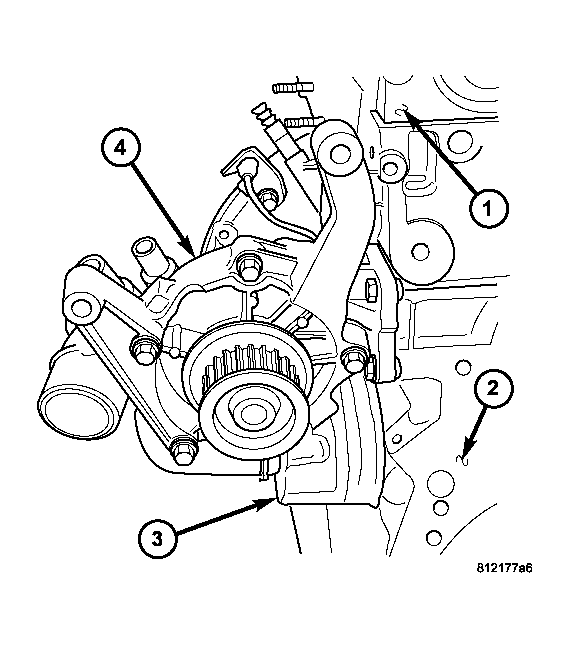

Fig 1: Water Pump

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER HEAD

2 - CYLINDER BLOCK

3 - ENGINE OIL COOLER

4 - WATER PUMP
