  1. Gently lay fan into shroud.
  2. Disconnect the electrical connector for the electric fan, then disconnect connector from shroud.
  3. Remove the two fan shroud mounting bolts connecting the fan shroud to the radiator. See Fig 1.

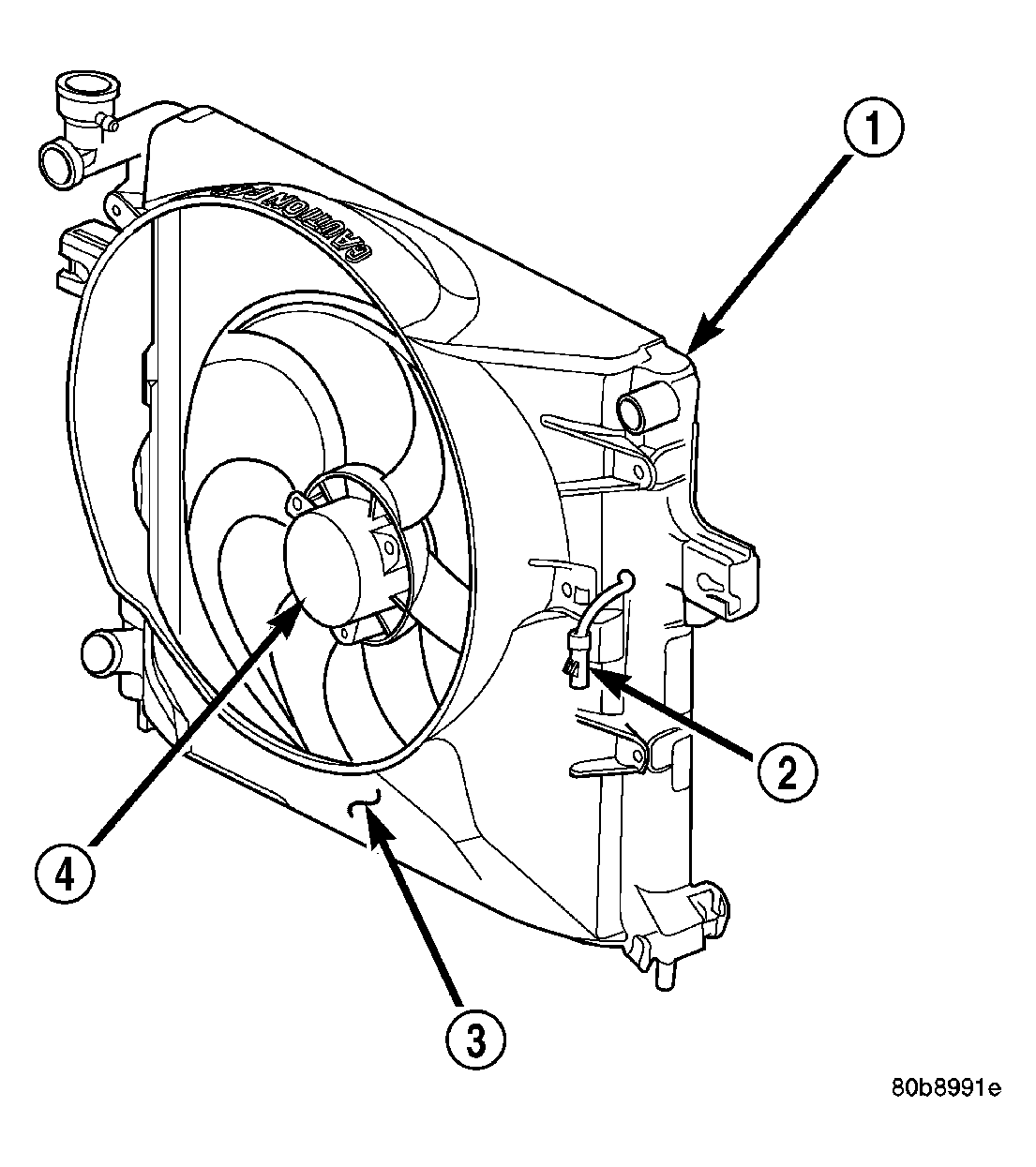

    Fig 1: Radiator Cooling Fan - Typical
    GC0025201Courtesy of DAIMLERCHRYSLER CORP.
    1 - RADIATOR
    2 - ELECTRIC COOLING FAN CONNECTOR
    3 - FAN SHROUD
    4 - ELECTRIC COOLING FAN
  4. Remove the shroud and fan from the vehicle.
