2.8L Diesel

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

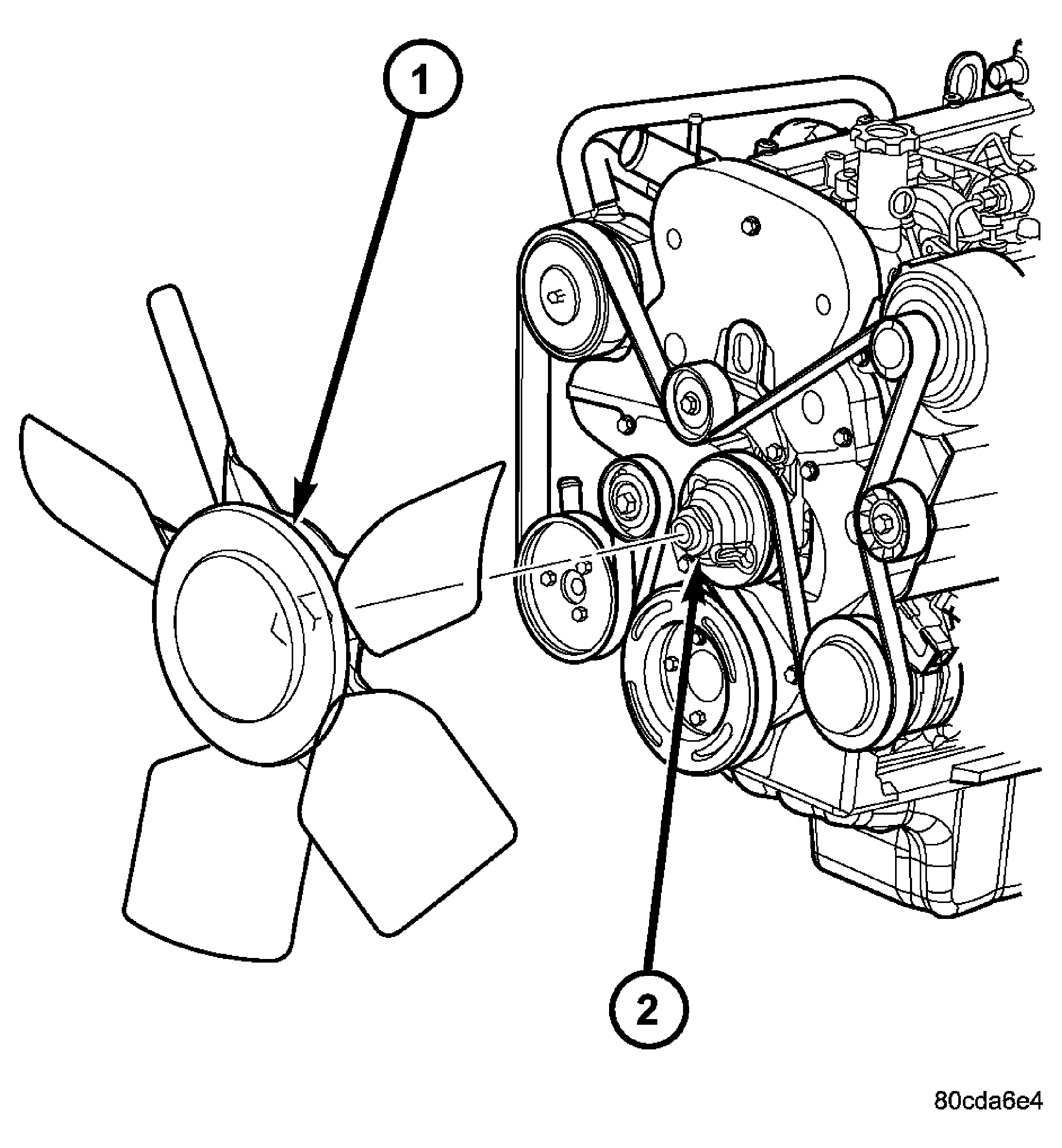

Fig 1: Cooling Fan And Viscous Clutch
GC0025203Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLING FAN AND FAN DRIVE VISCOUS CLUTCH ASSEMBLY
2 - FAN SUPPORT
  1. Assemble fan blade to viscous fan drive. Tighten mounting bolts to 23.7 N.m (210 in. lbs.) torque.
    NOTE: The viscous fan and fan shroud must be installed as an assembly.
  2. Gently lay fan and viscous drive into fan shroud.

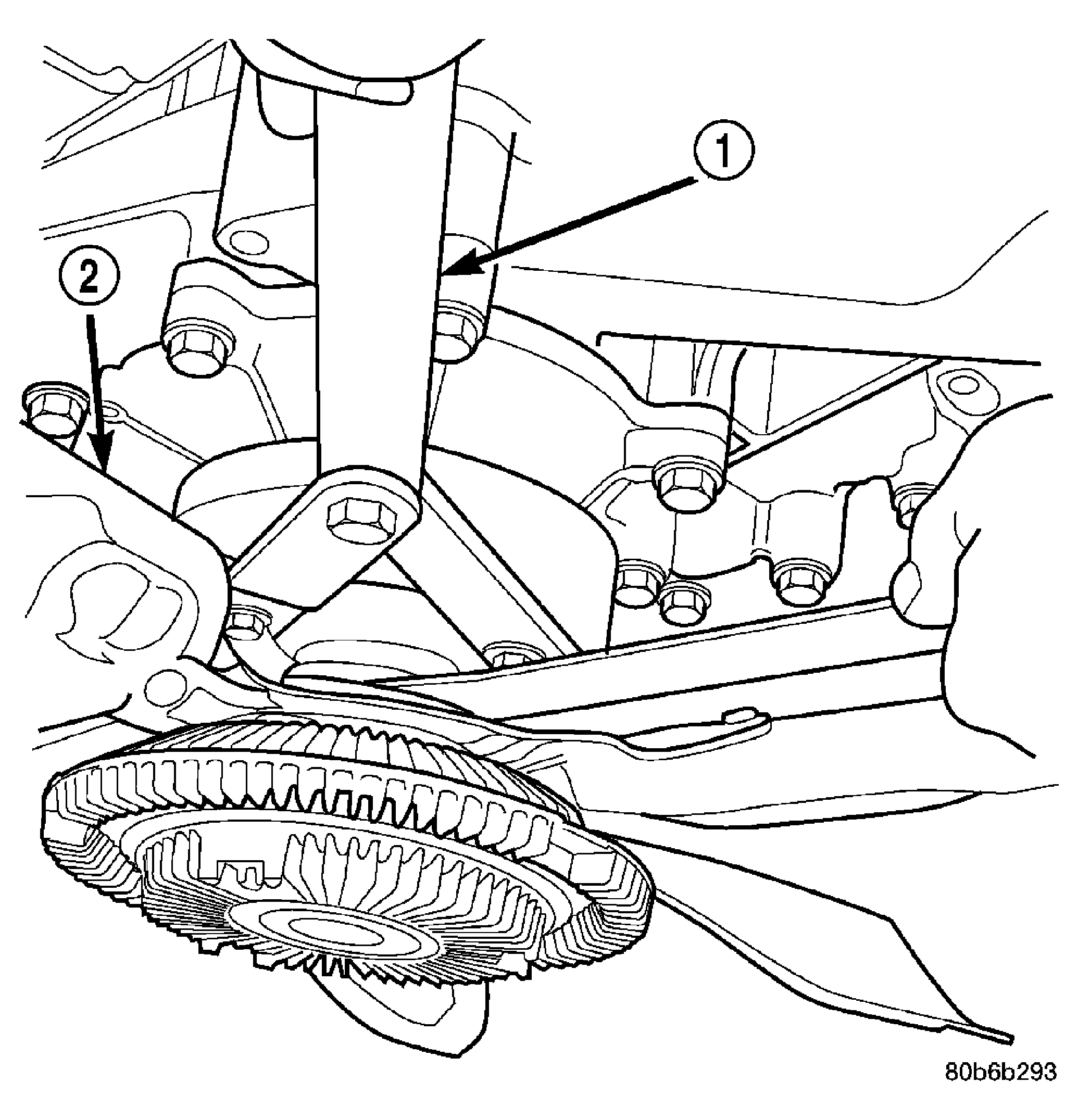

    Fig 2: Fan Drive Viscous Clutch - Typical
    GC0025202Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 6958 SPANNER WRENCH
    2 - FAN
  3. Install the fan shroud to radiator mounting bolt. Tighten bolts to 9 N.m (80 in. lbs.) torque.
  4. Thread the fan and viscous drive onto the fan support and tighten nut using special tool 6958 spanner wrench.

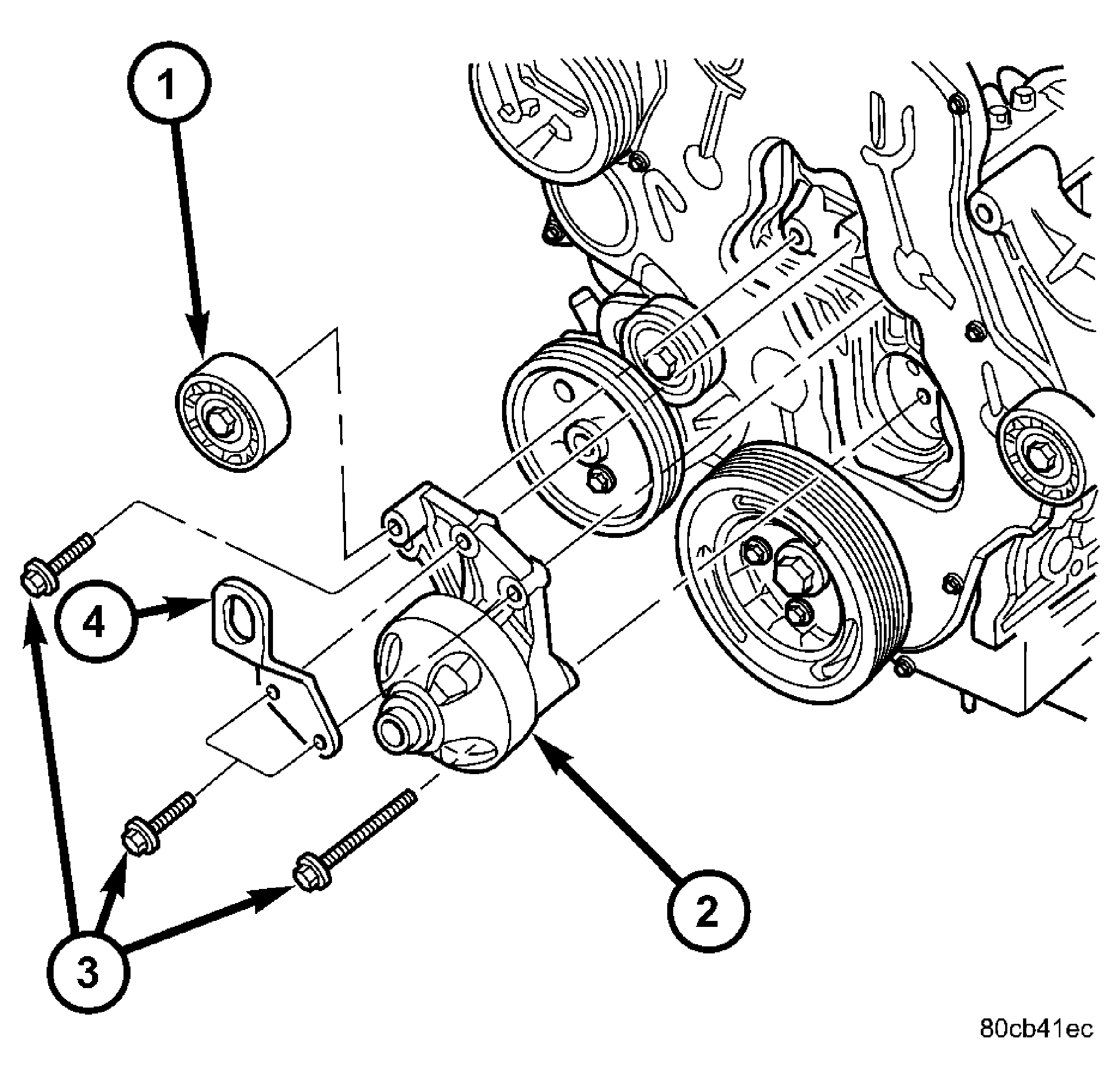

  5. Install cooling fan support to engine block. See Figure. Torque bolts to 149 N.m.(110 ft. lbs.).
  6. Connect negative battery cable.
