3.7L Engine

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Engine Coolant Temperature (ECT) sensor is installed into a water jacket at front of intake manifold near rear of generator. See Fig 1.

WARNING: HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING. COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE COOLANT TEMPERATURE SENSOR.

Partially drain cooling system.
Disconnect electrical connector from sensor.
Remove sensor from intake manifold.

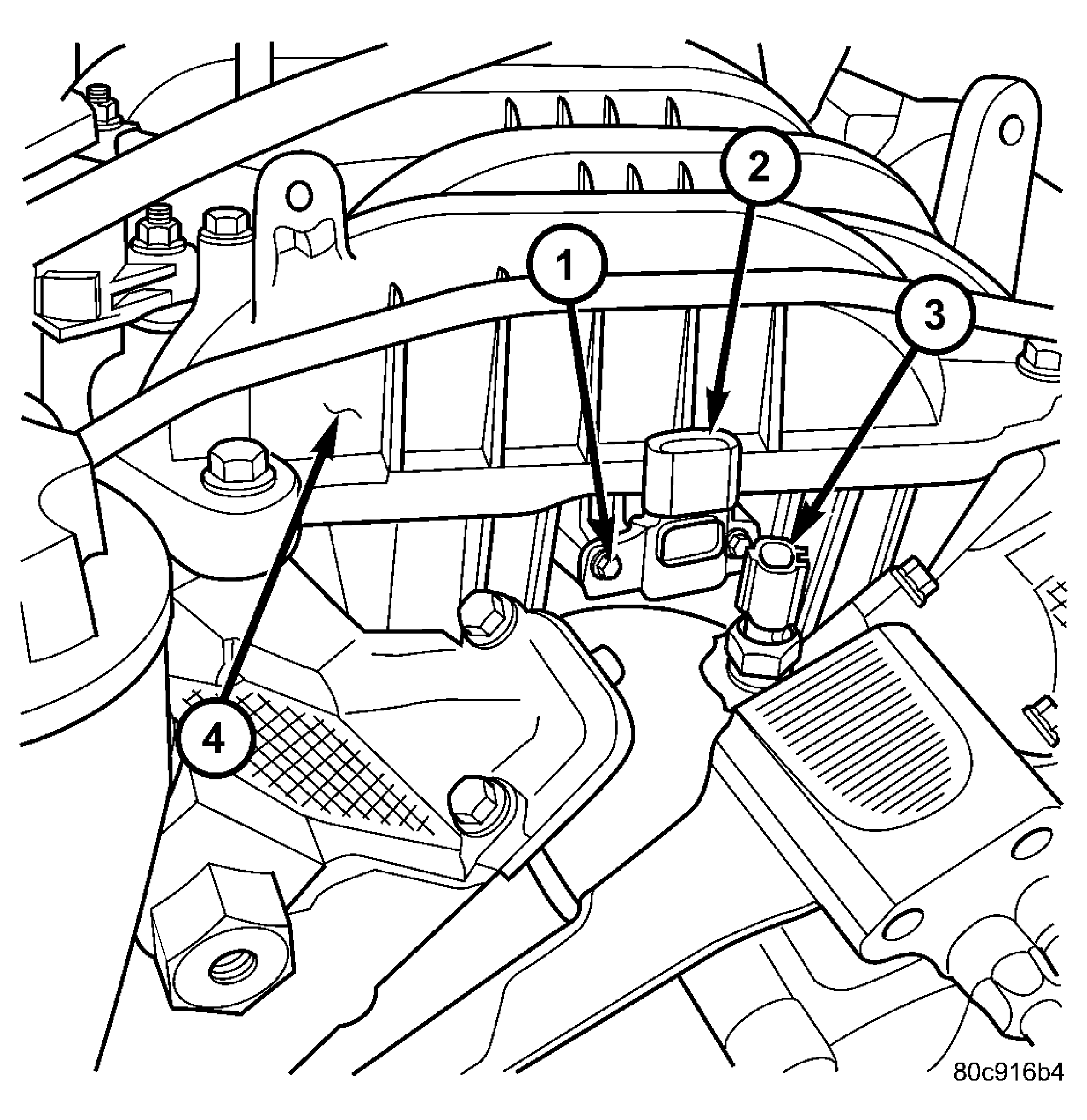

Fig 1: Removing/Installing MAP Sensor/ECT Sensor - 3.7L V-6

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING SCREWS

2 - MAP SENSOR

3 - ECT SENSOR

4 - FRONT OF INTAKE MANIFOLD
