2.8L Diesel Engine

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

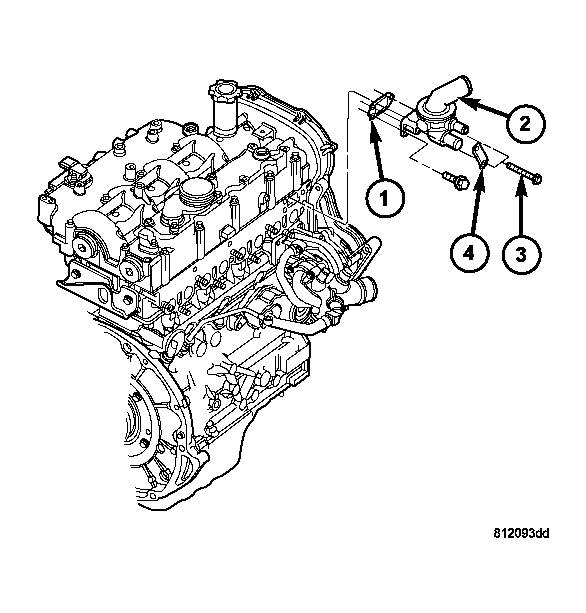

  1. Install coolant temperature sensor in thermostat housing. See Figure.
  2. Connect coolant temperature sensor electrical connector.
  3. Refill cooling system. (Refer to COOLANT  )
  4. Connect negative battery cable.
