Non-Pressure System - 2.4L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

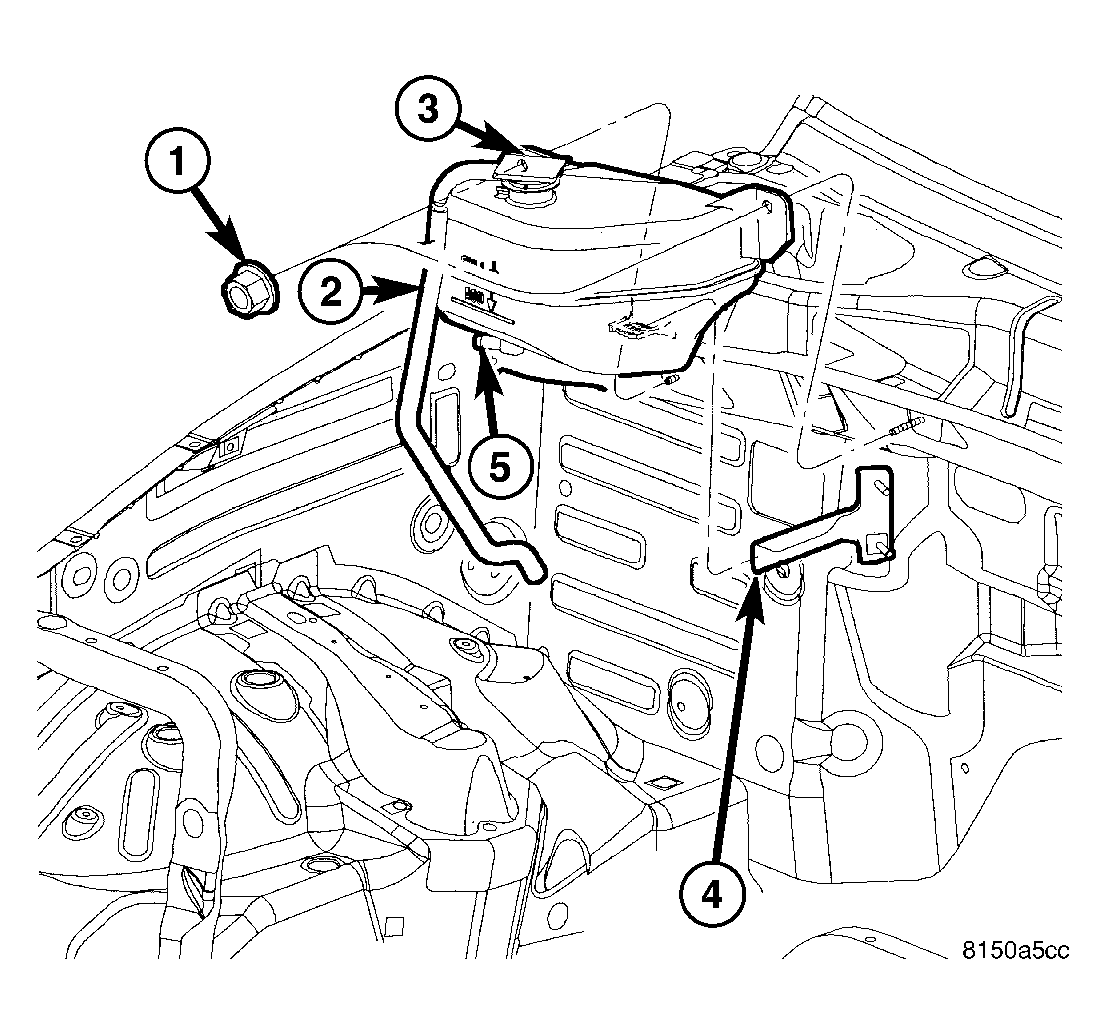

| 1 - NUT |
| 2 - OVERFLOW TUBE |
| 3 - COOLANT BOTTLE |
| 4 - MOUNTING BRACKET |
| 5 - COOLANT BOTTLE TO RADIATOR HOSE |
- Remove mounting nuts. See Fig 1
- Siphon coolant out of coolant bottle.
- Lift coolant bottle and remove coolant bottle to radiator hose at bottom of coolant bottle.
