Description - Cooling System Routing - 3.7L Engine
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

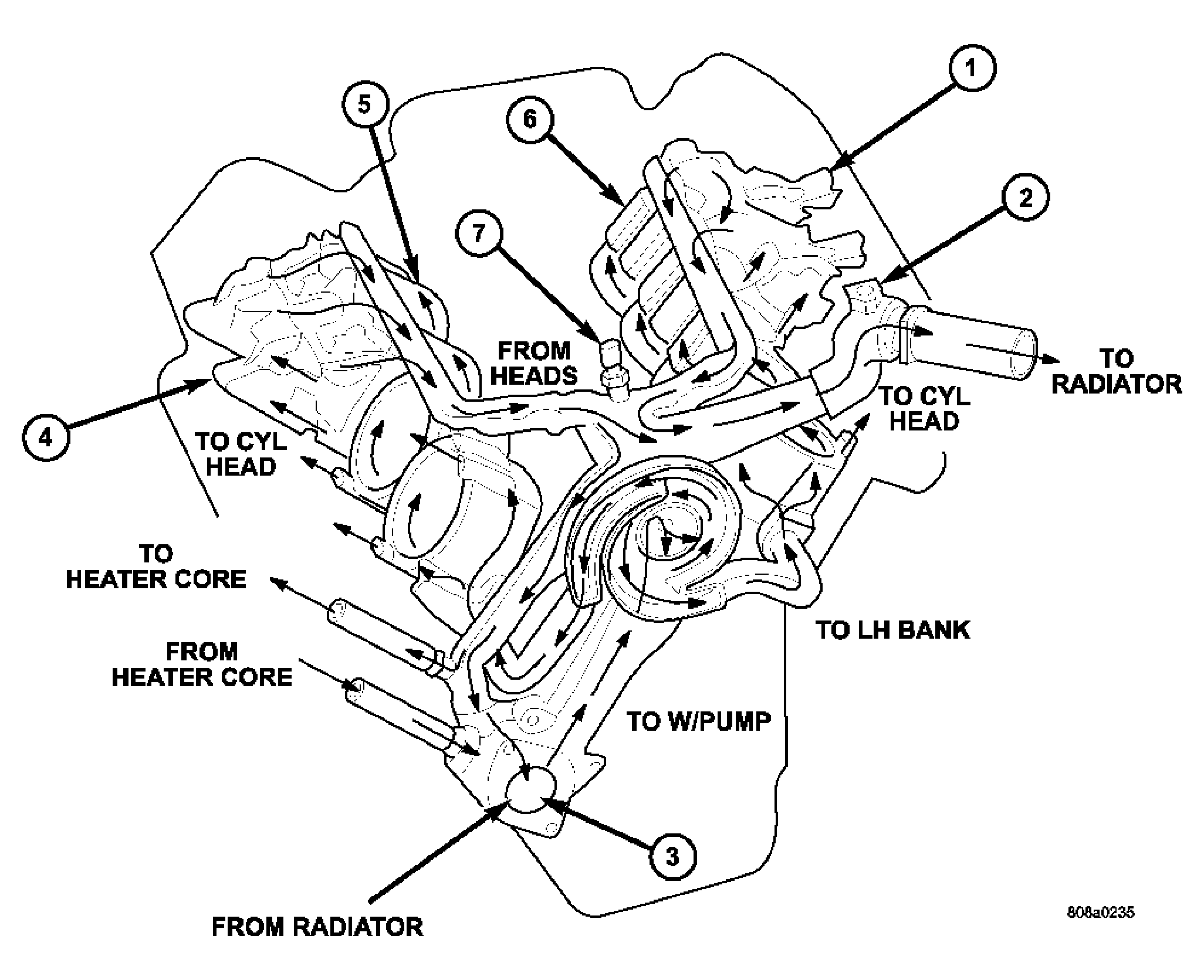

For cooling system routing refer to Fig 1.
| 1 - LH CYL. HEAD |
| 2 - AIR BLEED |
| 3 - THERMOSTAT LOCATION |
| 4 - RH CYL. HEAD |
| 5 - RH BANK CYL. BLOCK |
| 6 - LH BANK CYL. BLOCK |
| 7 - COOLANT TEMP. SENSOR |
