3.7L Engine

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove accessory drive belt (Refer to REMOVAL ).

Remove tensioner assembly from engine front cover. See Fig 1.

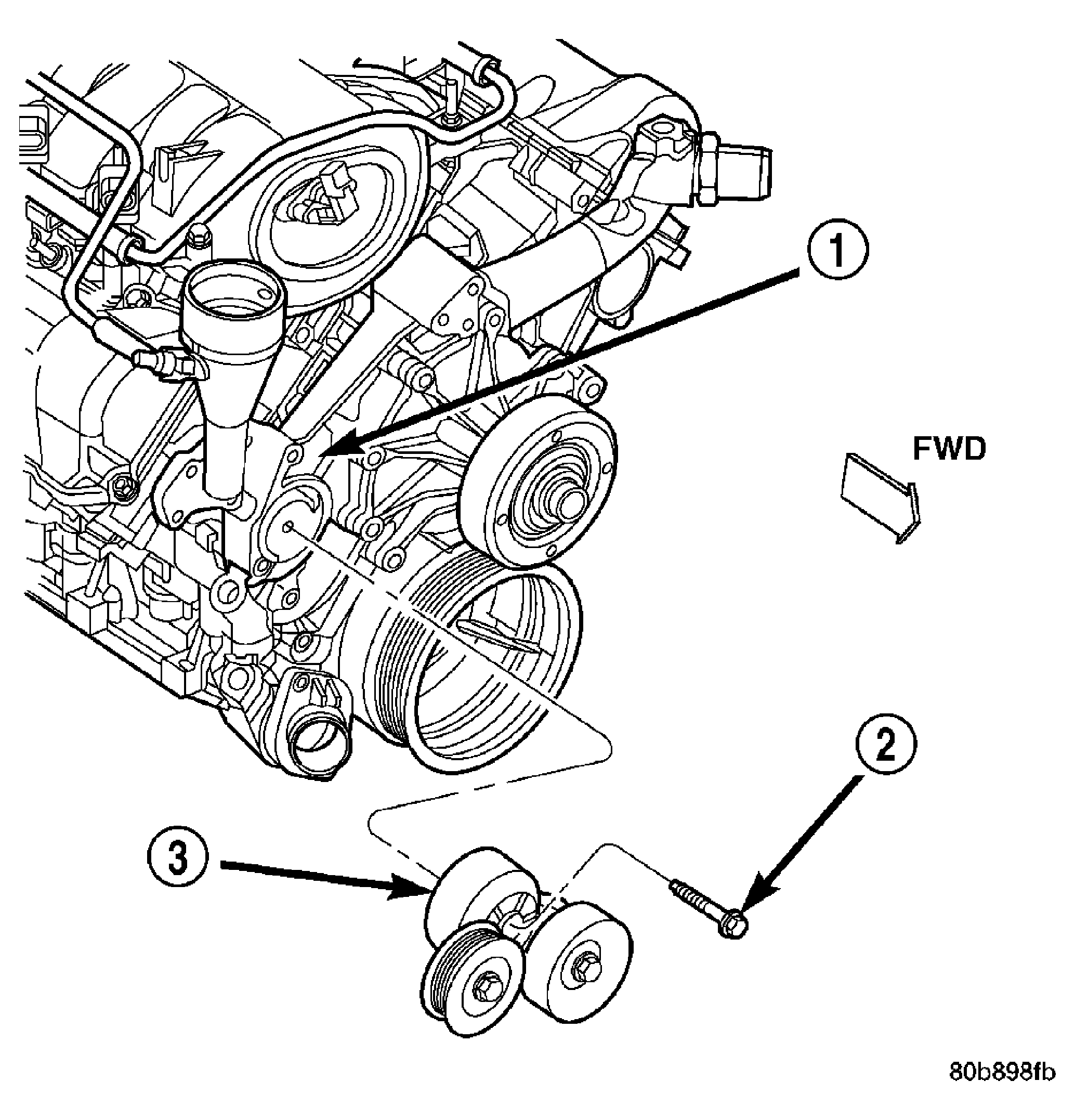

Fig 1: Automatic Belt Tensioner - 3.7L/4.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - TIMING CHAIN COVER

2 - BOLT TORQUE TO 41 N.m (30 FT LBS)

3 - AUTOMATIC BELT TENSIONER

WARNING: BECAUSE OF HIGH SPRING TENSION, DO NOT ATTEMPT TO DISASSEMBLE AUTOMATIC TENSIONER. UNIT IS SERVICED AS AN ASSEMBLY (EXCEPT FOR PULLEY ON TENSIONER).

Remove pulley bolt. Remove pulley from tensioner.
