2.8L Diesel

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

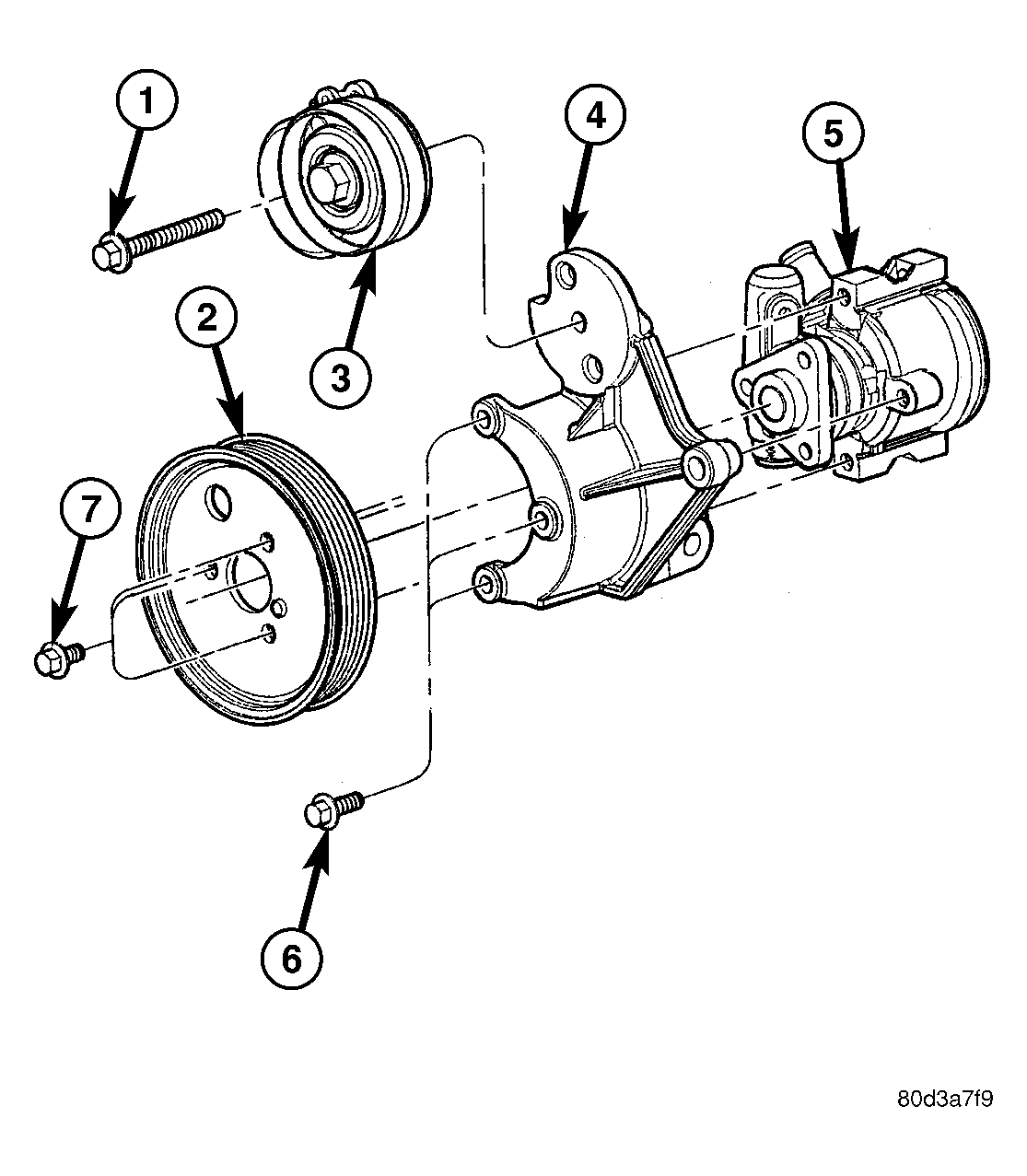

  1. Install belt tensioner on bracket. See Figure. Torque retaining bolt to 47.1N.m.
  2. Install accessory drive belt. See Figure(Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
  3. Connect negative battery cable.
