Pilot Bearing: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

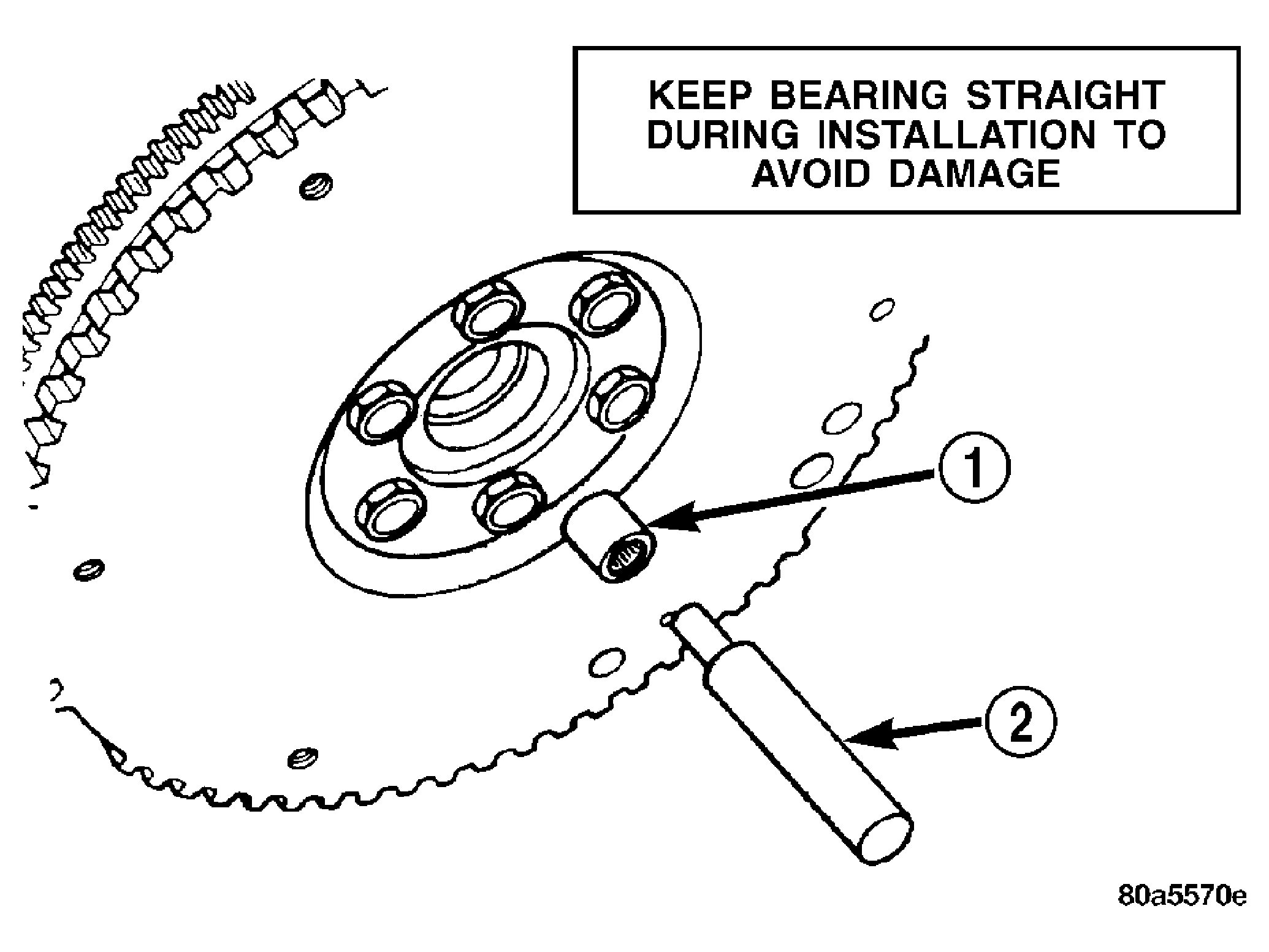

| 1 - PILOT BEARING |
| 2 - ALIGNMENT TOOL |
- Lubricate new bearing with Mopar high temperature bearing grease or equivalent.
- Start new pilot bearing (1) into crankshaft by hand. Then seat bearing with clutch alignment tool (2). See Fig 1.
- Install clutch disc and pressure plate.
- Install transmission.
