Clutch Pedal Position Switch: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

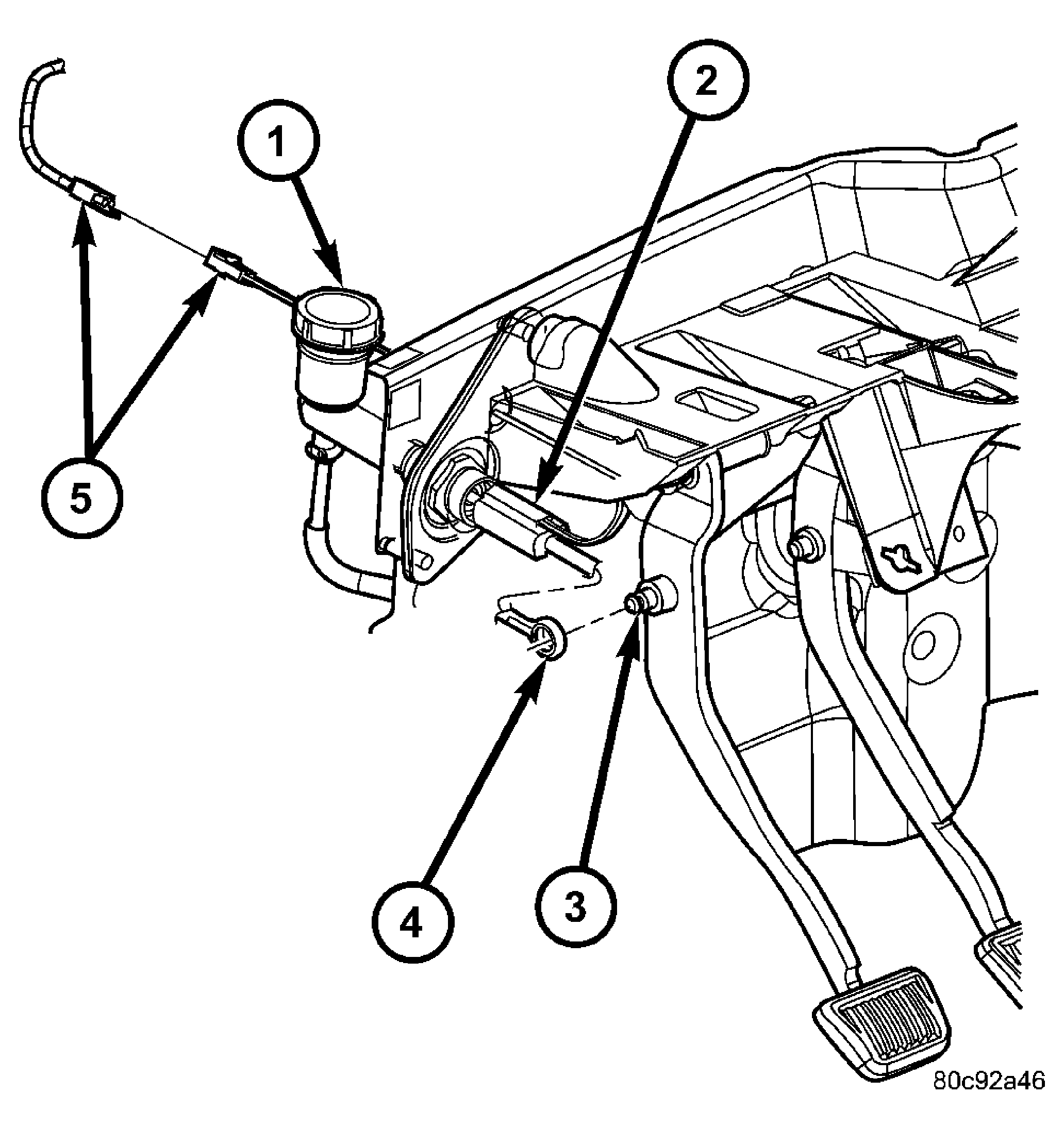

| 1 - CLUTCH MASTER CYLINDER |
| 2 - CLUTCH PEDAL POSITION SWITCH |
| 3 - CLUTCH PEDAL PIN |
| 4 - MASTER CYLINDER PUSHROD |
| 5 - ELECTRICAL CONNECTION (IN ENGINE COMPARTMENT) |
The clutch pedal position switch (2) is located under the instrument panel, attached to the clutch master cylinder (1) push rod. See Fig 1. The wiring harness connection for the switch is in the engine compartment. See Fig 1.
The clutch pedal position switch override relay is located in the Power Distribution Center (PDC). Refer to PDC cover label for location within PDC.
