Clutch Disc: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
| 1. PRESSURE PLATE |
- Remove transmission.

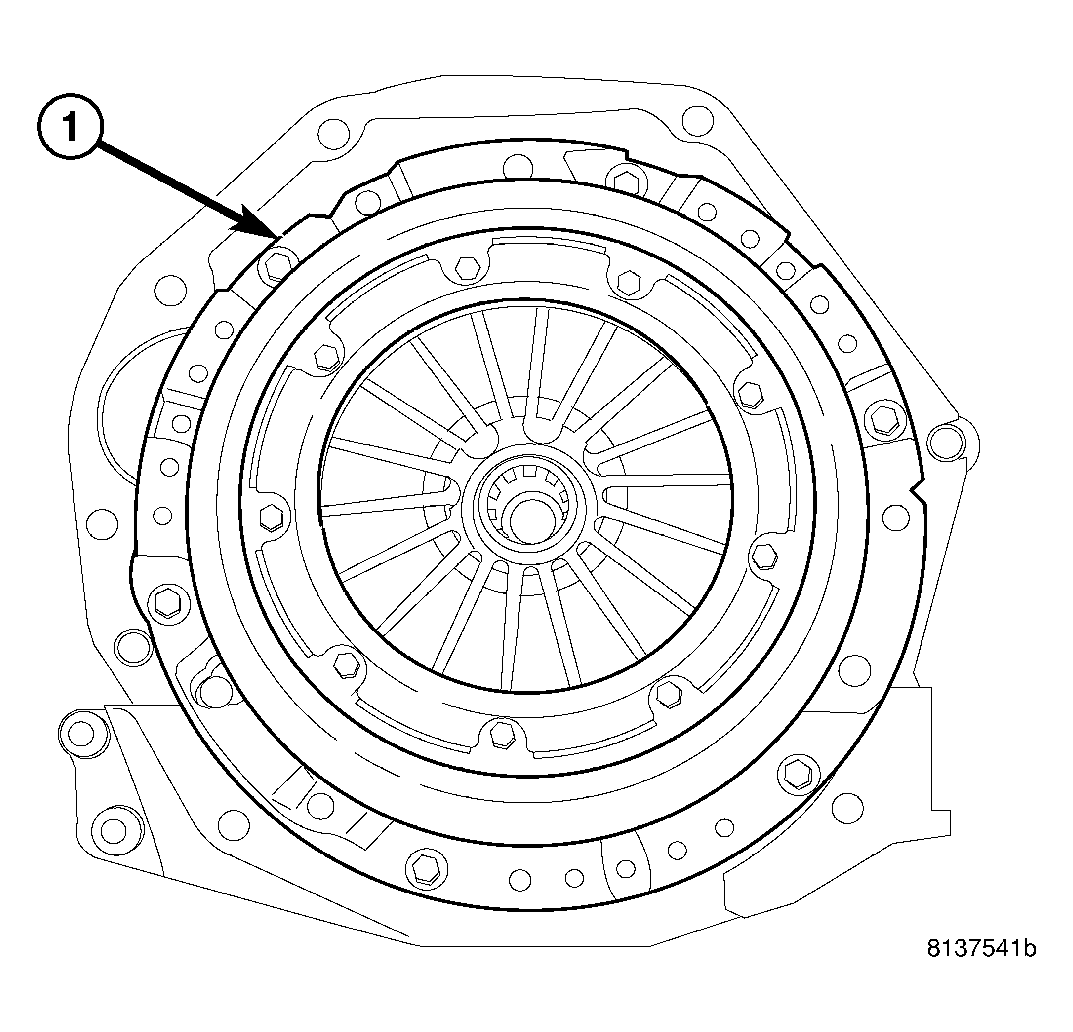

- Mark position of pressure plate (1) on flywheel with paint or a scriber for assembly reference, if clutch is not being replaced. See Fig 1.
- Loosen pressure plate bolts evenly and in rotation to relieve spring tension and avoid warping the plate.
- Remove pressure plate bolts and pressure plate and disc.
